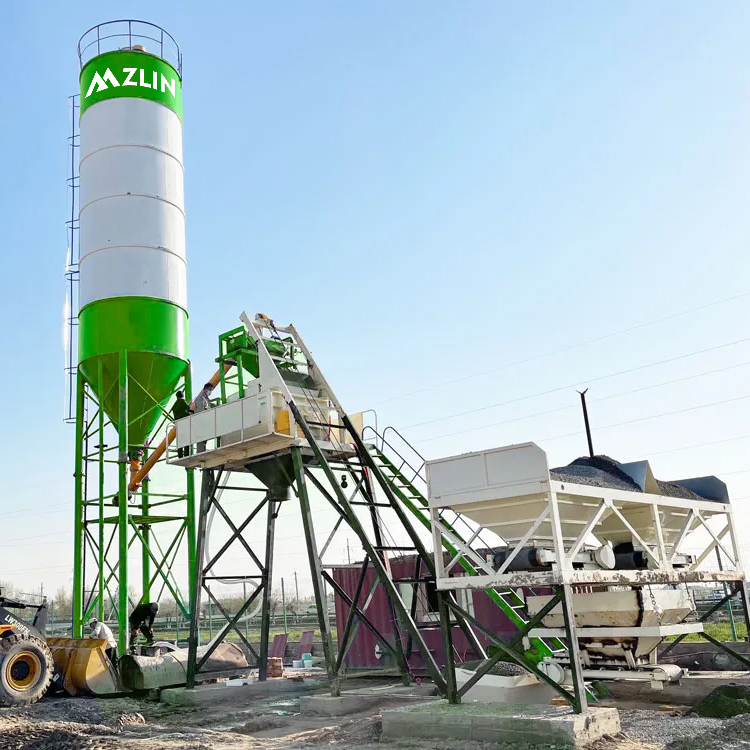

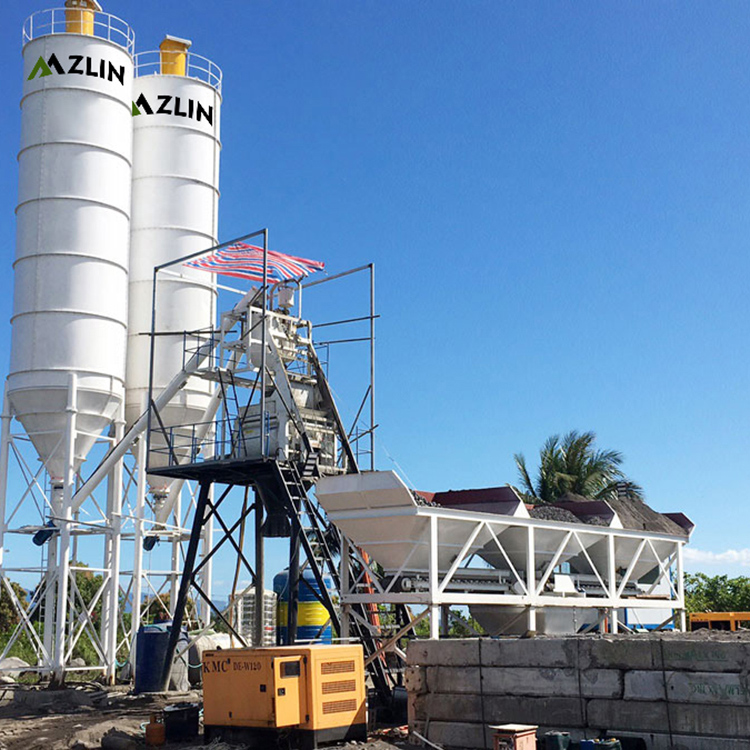

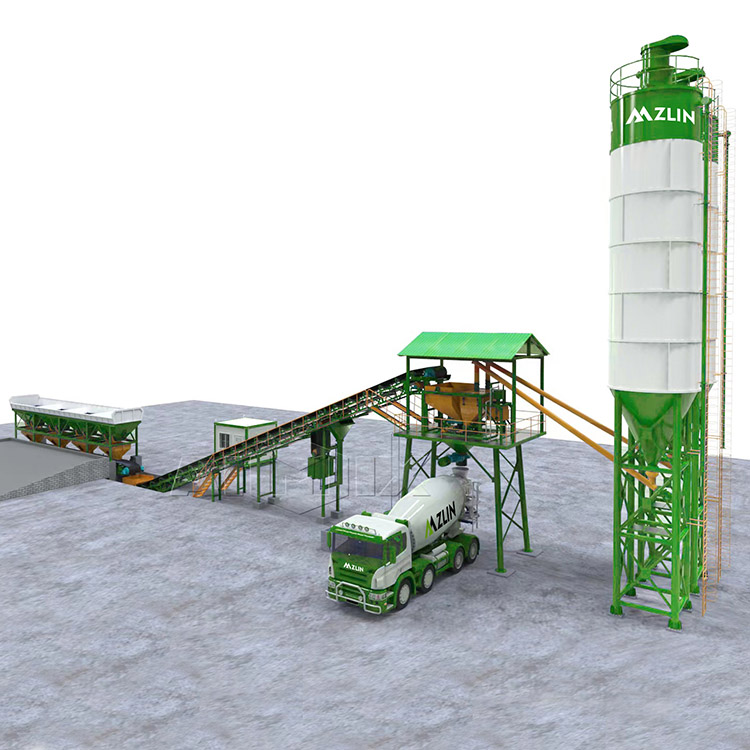

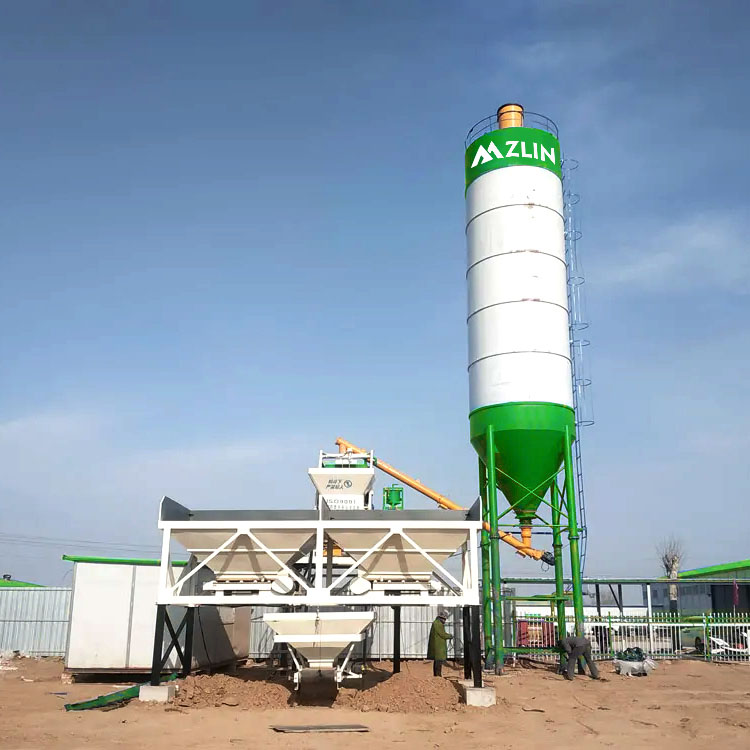

SSH25-35 Stationary Concrete Batching Plant

 Email: [email protected]
 Whatsapp: +639331973739

EN

Home > Products > SSH25-35 Stationary Concrete Batching Plant

SSH25/35 automatic concrete mixing plant is composed of feeding, batching, mixing, electrical control and other parts of the concrete mixing set equipment, it is suitable for small and medium-sized construction projects, prefabricated parts factories and commercial concrete production plants.

Chat [email protected]

FEATURES Appliction PART II. SPECIFICATION

FEATURES

1. The use of modular structure, modular units, installation, relocation is very convenient,

2. Mixed concrete uniform, good quality;

3. Short stirring time, fast discharge;

4. Long life of wearing parts, easy maintenance;

5. The use of domestic and foreign advanced electronic weighing, microcomputer control, digital display and other control technology;

6. Electronic weighing system has buffer device and automatic compensation function, high measurement accuracy;

Appliction

The mixing plant is suitable for small and medium-sized construction projects, prefabricated parts factories . Commercial concrete mixing station is mostly simple concrete mixing station, which can be used in various commercial concrete manufacturers and highway Bridges, water conservancy terminals and other industrial or civil projects.

PART II. SPECIFICATION

Whole station	Model	SSH25	SSH35
	Max. productivity (m³/h)	25	35
	Standard discharge height	2	2
	Aggregate conveying type	Skid Hopper	Skid Hopper
	Total Power (kw)	55	75
	Control type	Pneumatic + PLC	Pneumatic + PLC
	Control system brand	Zlin	SCHNEIDER
Mixer part	Model	JS500	JS750
	Working cycle time (S)	72	72
	Mixing Power (KW)	18.5	30
Batching machine part	Model	PLD800	PLD1200
	Batchable number of aggregate	2	2-2
	Hopper capacity(m3)	2.76*3	1.2
	Power (Kw)	4*4	4*3
	Feeding height (mm)	2300	2800
Weighing accuracy	Aggregate	±2%	±2%
Weighing accuracy	Concrete, Water and Additive	±1%	±1%
