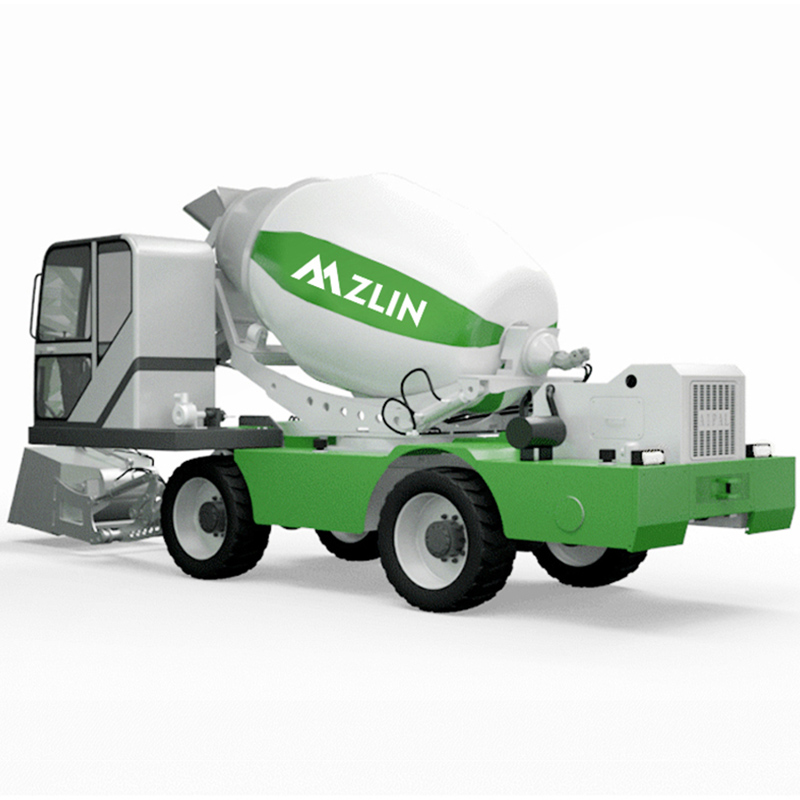

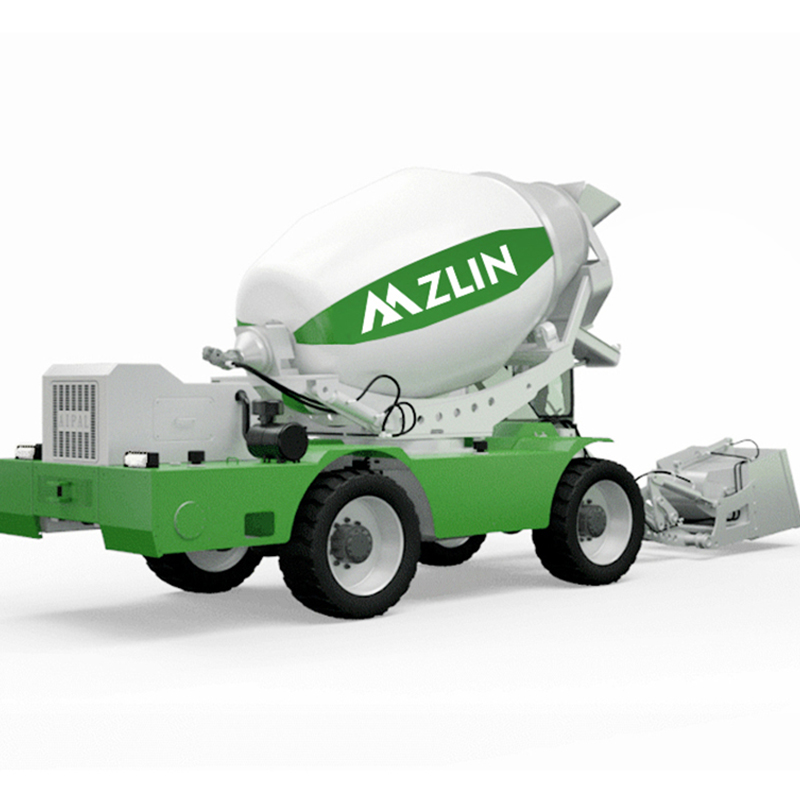

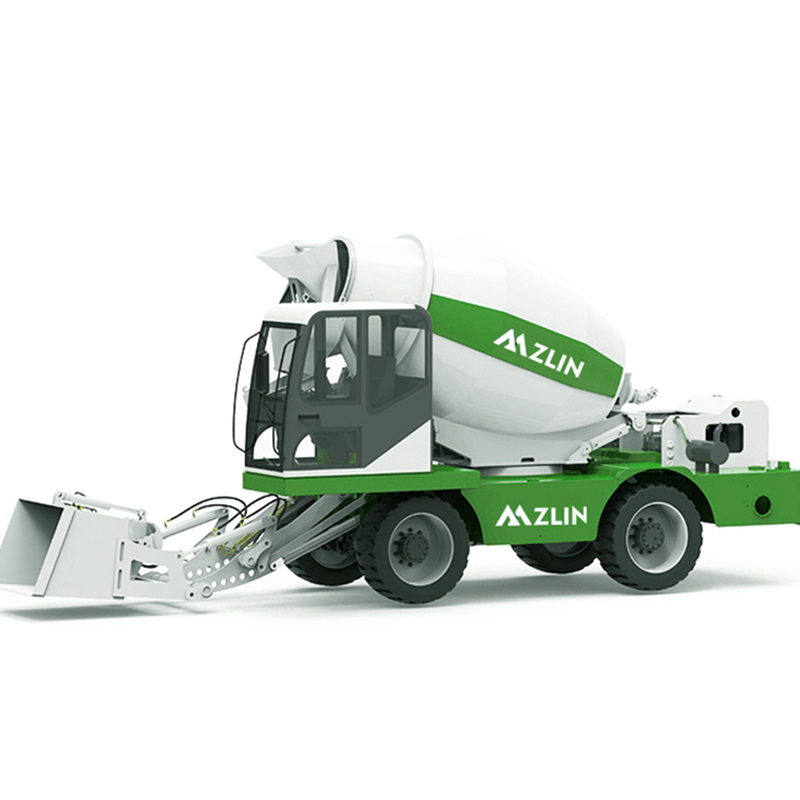

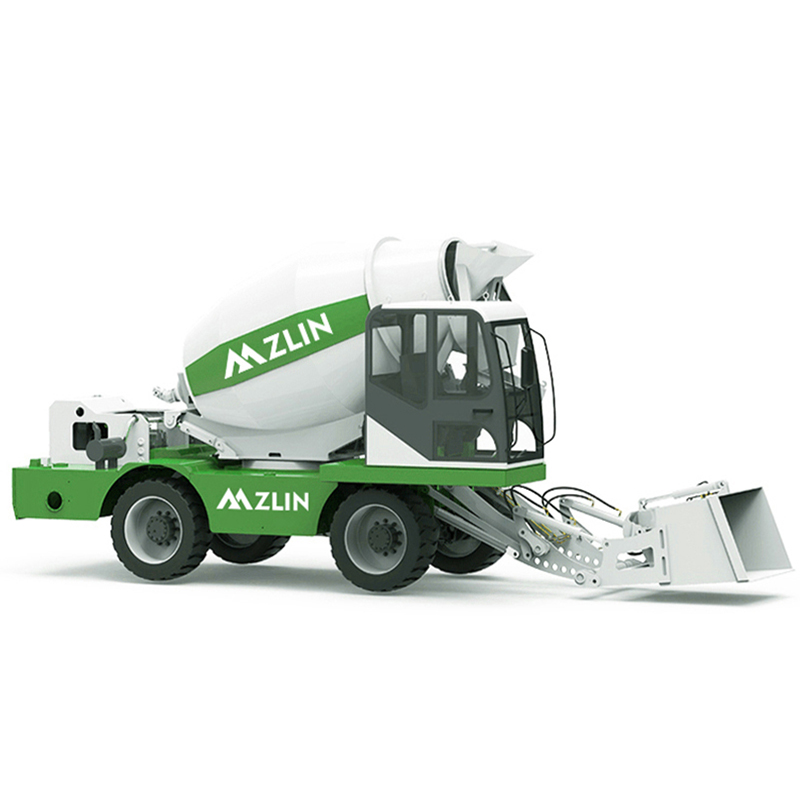

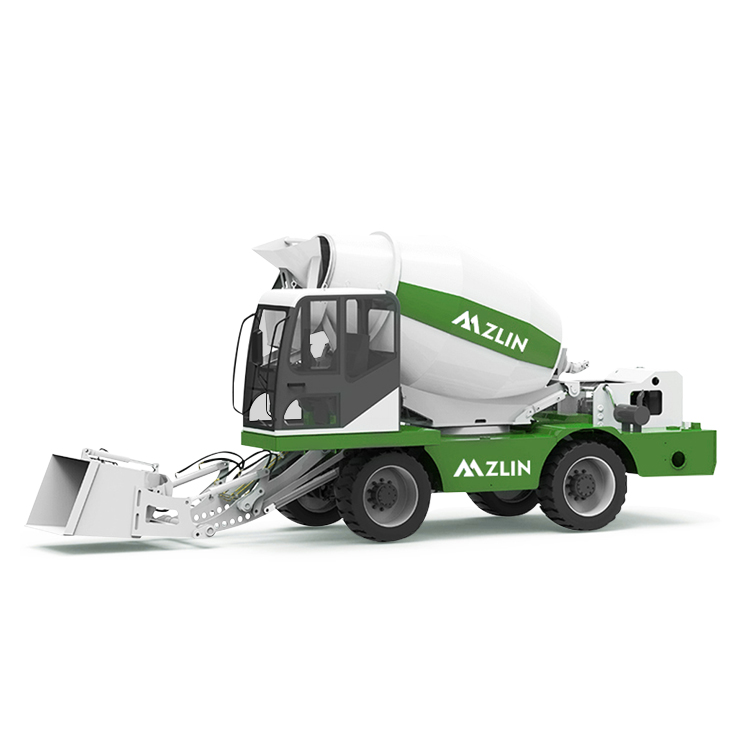

New 3.5 m³ self-loader concrete mixer has the characteristics of narrow body, short wheelbase, small turning radius and other personalized design, and has strong advantages in the working environment of limited height, width and length. The mixing tank can be rotated 270°, and the machine can be unloaded on all sides without moving, and only one person can operate it during operation.
ZLIN Self loading concrete mixer

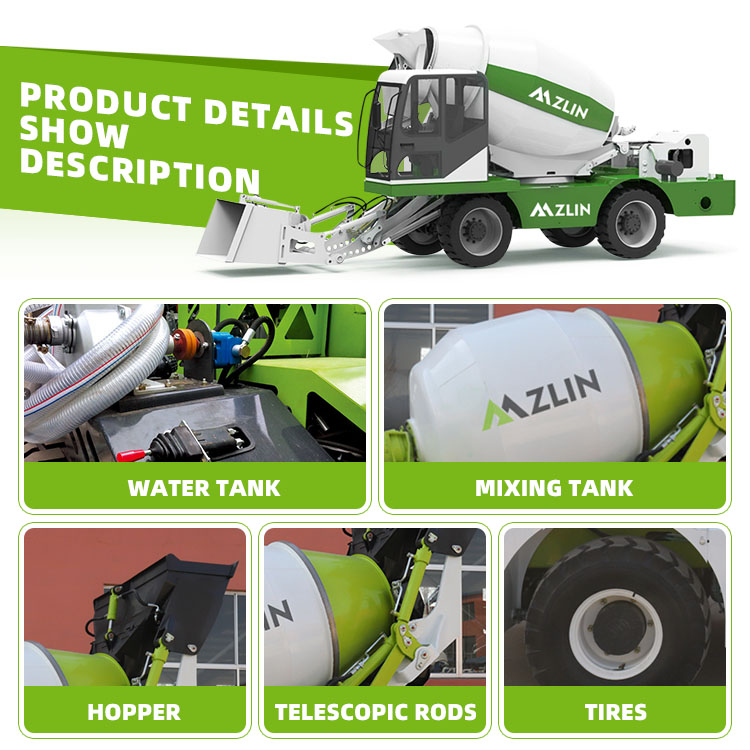

1. Self-loading mixer truck integrated design
Easily replace mixer + loader + transporter
2. Self-loading mixer truck save human resources
The integration of feeding and stirring saves human resources
3.Self-loading mixer truck stirring more quickly and evenly
Double helix mixing screw, rapid and uniform discharge
4. Self-loading mixer truck strong tire grip
Preferred slotted tires for better grip and adaptability to all road conditions
Mobile portable cement mortar mixer mobile self-loading concrete mixer
Self-loading concrete mobile cement mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed,measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixeris just like a small car and the operator can drive it to where it needs to go. Self loading mobile concrete mixer is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site.

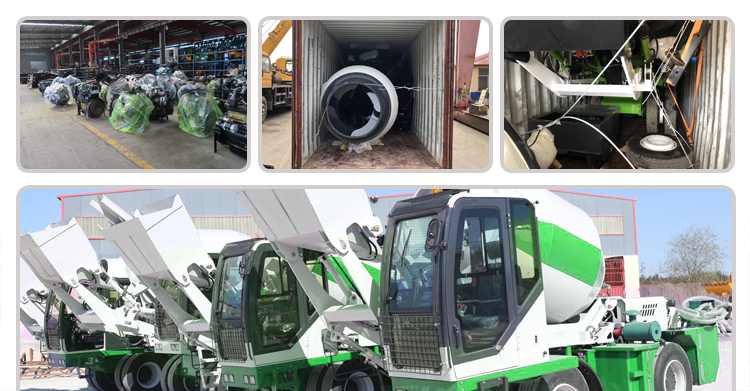

ZLIN has exported Two Self Loading Concrete Mixer to the Philippines in February 2022 . Now I’ll show you some photos before the shipment. As you can see, this Self Loading Concrete Mixer for sale in the Philippines has an attractive look. It will be used to provide great help for customers’ projects.
RIO, RTA YARWUN PTY LTD, Lianyungang Port, Ningbo Port, Shanghai Port, Guangzhou Port, Dalian Port, Taicang Port, Yingkou Port, etc.
HITACHI,SANY, DOOSAN, etc.
During my cooperation with Zlin Heavy Industry Group on this project, I found that ZLIN Group and Their team were knowledgeable and result oriented. Our cooperation process was very pleasant.
Brand name | ZLIN |
Vehicle parameters | 3.5 square (270 °) |
Model | Yuchai 4105 supercharged |
Dimension | 7830*2680*4170 |
Wheelbase (mm) | 2900 |
Overall mass (kg) | 7800 |
Drive form | torque converter |
Max. speed(km/h) | 30 |
Max. climbing degree(°) | 30 |
Min. turning radius(mm) | 5300 |
Min. ground clearance (mm) | 380 |
Engine | |
Model | Yuchai 4105 supercharged |
Rated power | 85kw |
Transmission | |
Model | ZL-280 powershift gearbox |
Gears | Gear 4 forward 4 backward |
Commonly used parameters | |
Equipment model | JBC-35 |
Hydraulic system parameters | |
Speed ratio of reducer | HJ80-43 |
Pump | CBGQ 2040/2080 |
Motor | BM5-160 |
Water supply parameters | |
Water tank capacity (L) | 620 |
Water supply method | Time relay |
Maintenance refill volume | |
Total capacity of hydraulic system (L) | 120 |
Fuel tank (L) | 120 |
Oil | 16 |
Mixing and unloading | |
Drum geometry capacity (L) | 4740 |
Drum rotation speed | 18 rpm – 21 rpm |
Mixing output | 3.5 cubic meters/tank |
There are many suppliers in the market that manufacture self-loading mixers. You can find self loading concrete mixer suppliers online or offline. Of course, you can also look for suppliers locally or abroad. But most importantly, you need to find a reputable supplier with good reviews from many customers. ZLIN GROUP has focused on the construction machinery industry for many years. We always adhere to the vision of providing better construction machinery to more customers and creating more value for them. So far, we have exported multiple self-loading concrete mixer trucks to different countries such as Philippines, Indonesia, Vietnam, Pakistan, etc.
If you are interested in our self-loading concrete mixer truck, welcome to contact us for quotation immediately. We promise you can get a reply within 24 hours.
1. One year warranty
2. Go to your site and help you install and debug
3. Free training for your operator;
4. Any problem, we will be here to serve you, or go to your city, check and maintain;
5. Spare parts are in stock, any needs, please leave your message on my website, we will arrange shipment within 48 hours;
6. Introduce other users to buy our self loading concrete mixers, we will give you some commission.
