5.5 m³ self-loader concrete mixer has the characteristics of narrow body, short wheelbase, small turning radius and other personalized design, and has strong advantages in the working environment of limited height, width and length. The mixing tank can be rotated 270°, and the machine can be unloaded on all sides without moving, and only one person can operate it during operation.

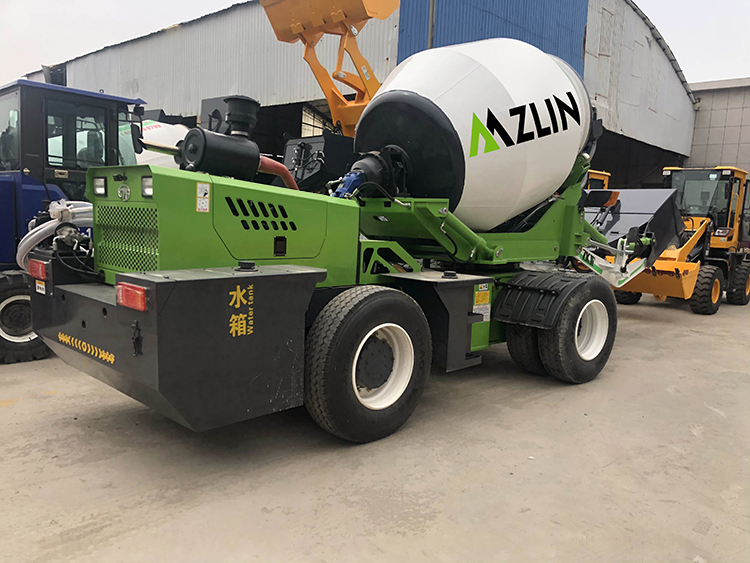

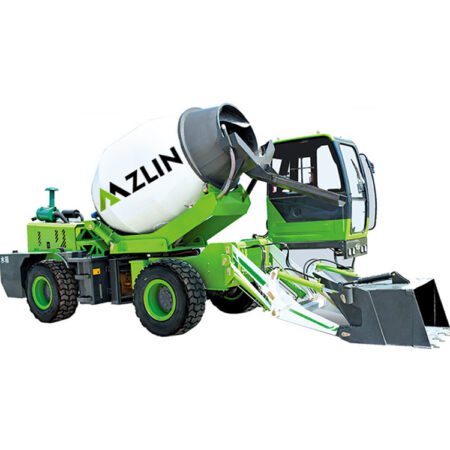

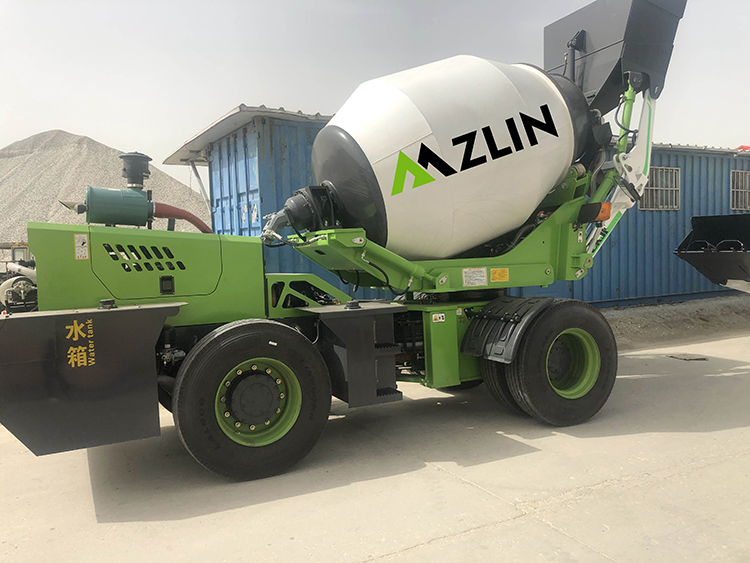

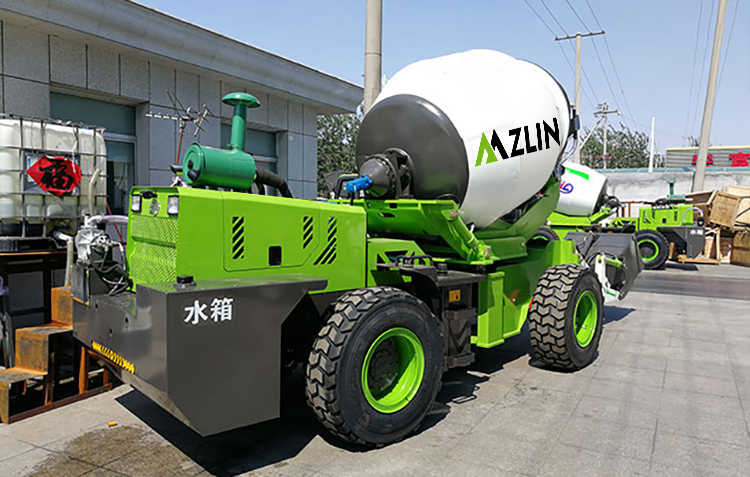

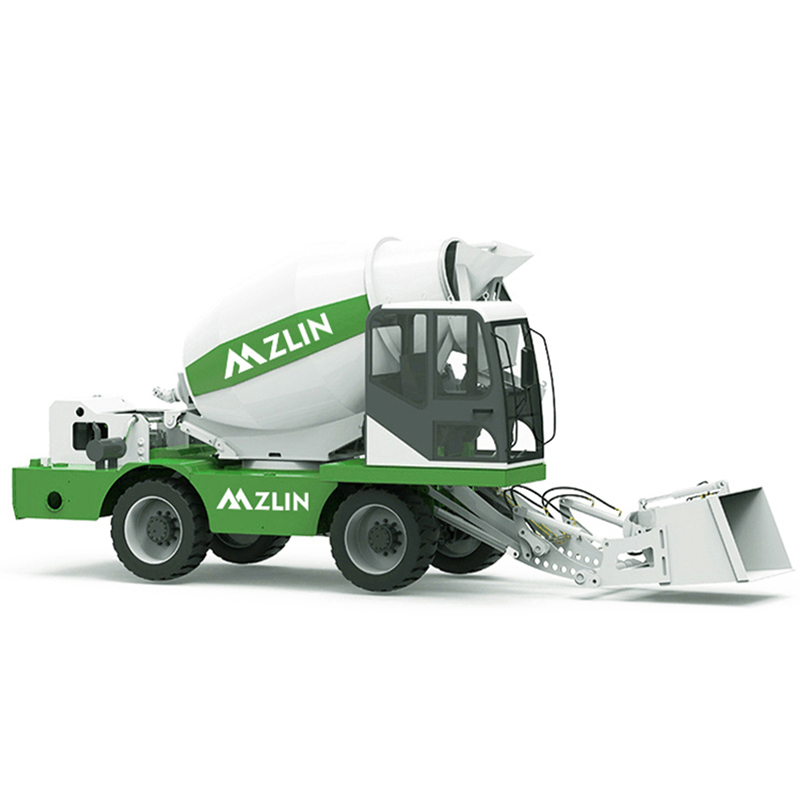

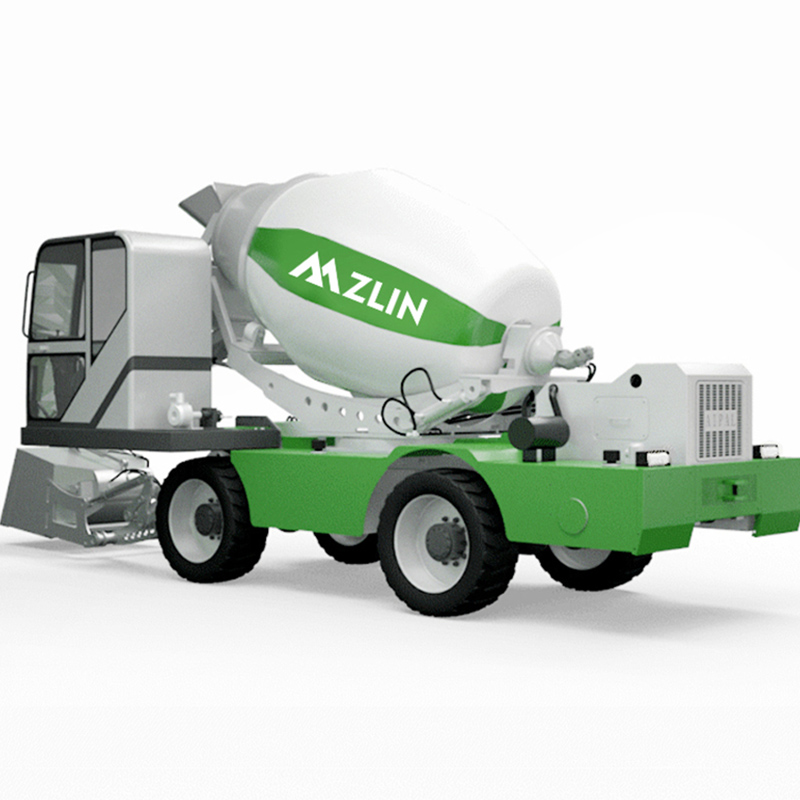

ZLIN Self loading concrete mixer
1. Self-loading mixer truck one machine with multiple functions
Bucket downturn function, realize the loading function, truly realize the multi-purpose function of one machine
2. Self-loading mixer truck liberate productivity
Fully automatic mixer truck integrates loading, mixing, transportation and unloading
3. Self-loading mixer truck unloading is more thorough
The forward-tilt unloading function makes unloading more thorough and faster
4. Self-loading mixer truck large water tank design
Enlarge the water tank to meet the needs of working in a water-deficient environment
Mobile portable cement mortar mixer mobile self-loading concrete mixer
Self-loading concrete mobile cement mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed,measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixeris just like a small car and the operator can drive it to where it needs to go. Self loading mobile concrete mixer is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site.
At first, the customer just sent us an inquiry about self-loading mixers. He just wanted to know the price list of all the self loading concrete mixers sold by our company. Then, our sales started to communicate with him. We came to the conclusion that he wanted to buy a high capacity self-loading mixer for his project. At ZLIN, we have two large concrete mixers for sale. the ZL-4.0 and the ZL-5.5. after comparing them, the customer preferred to buy the ZL-5.5.
The ZLIN-5.5 self loading concrete mixer can best match customer’s construction projects. After confirmation, the customer is satisfied with the equipment, including its design, its function and its best price.
| Brand name | ZLIN |
| Vehicle parameters | 5.5 square(270 °) |
| Model | FAW Xichai 6110 supercharged |
| Dimension | 8450*3000*4500 |
| Wheelbase (mm) | 3300 |
| Overall mass (kg) | 9700 |
| Drive form | torque converter |
| Max. speed(km/h) | 35 |
| Max. climbing degree（°） | 40 |
| Min. turning radius（mm） | 5300 |
| Min. ground clearance (mm) | 380 |
| Engine | |
| Model | FAW Xichai 6110 supercharged |
| Rated power | 92-132kw |
| Transmission | |
| Model | ZL-428 powershift gearbox |
| Gears | Gear 4 forward 4 backward |
| Commonly used parameters | |
| Equipment model | JBC-55 |
| Hydraulic system parameters | |
| Speed ratio of reducer | HJ80-43 |
| Pump | CBGQ 2050/2032 |
| Motor | American Sonny 56 motor |
| Water supply parameters | |
| Water tank capacity (L) | 860L |
| Water supply method | Time relay |
| Maintenance refill volume | |
| Total capacity of hydraulic system (L) | 160 |
| Fuel tank (L) | 160 |
| Oil | 16 |
| Mixing and unloading | |
| Drum geometry capacity (L) | 7800 |
| Drum rotation speed | 20 rpm |
| Mixing output | 5.5 cubic meters / tank |
There are many suppliers in the market that manufacture self-loading mixers. You can find self loading concrete mixer suppliers online or offline. Of course, you can also look for suppliers locally or abroad. But most importantly, you need to find a reputable supplier with good reviews from many customers. ZLIN GROUP has focused on the construction machinery industry for many years. We always adhere to the vision of providing better construction machinery to more customers and creating more value for them. So far, we have exported multiple self-loading concrete mixer trucks to different countries such as Philippines, Indonesia, Vietnam, Pakistan, etc.
If you are interested in our self-loading concrete mixer truck, welcome to contact us for quotation immediately. We promise you can get a reply within 24 hours.
1. One year warranty
2. Go to your site and help you install and debug;
3. Free training for your operator;
4. Any problem, we will be here to serve you, or go to your city, check and maintain;
5. Spare parts are in stock, any needs, please leave your message on my website, we will arrange shipment within 48 hours;
6. Introduce other users to buy our self loading concrete mixers, we will give you some commission.
Productivity: 15M³/H
Machinery Test Report: 170m3/h
Theoretical Productivity : 35m³/h
Total Power: 75
Productivity: 15M³/H
Machinery Test Report: 170m3/h
