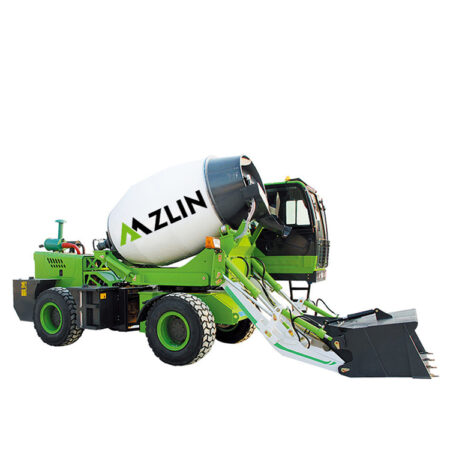

2.0 m³ Self-Loading Mixing Truck

Product Description

2.0 m³ self-loader concrete mixer has the characteristics of narrow body, short wheelbase, small turning radius and other personalized design, and has strong advantages in the working environment of limited height, width and length. The mixing tank can be rotated 270°, and the machine can be unloaded on all sides without moving, and only one person can operate it during operation.

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

ZLIN Self Loading Concrete Mixer

∇  Its stirring is uniform, the stirring blade is fan-shaped, and the contact area with the medium is large during stirring;

∇  The nozzles are set in multiple rows, and the water volume is uniform and adjustable;

∇  The mixing drum of the self-loading mobile concrete mixer has a compact structure and good sealing performance, set a ash baffle at the feeding port to prevent the backflow of water mist;

∇  The setting of the watershed at the bottom of the box ensures that there is no dead angle in the device.

∇  The mining mixing drum has advanced performance, stable product quality, uniform mixing and rapid discharge.

∇  Independent operation to complete the functions of loading, mixing, transportation and unloading.

∇  The self-loading concrete mixer for sale replaces the loader, mixer, transport vehicle, generator set and other functions; it also has its own water tank, external suction pump, etc.

∇  The multi-angle 270-degree rotating discharge is suitable for various regional environments.

∇  Easy to operate, you can learn to operate in a few hours, and only two people can complete all the work.

∇  Cost-effective, the self-loading concrete mixer machine saves labor costs and time, and the self-loading concrete mixer truck price is reasonable.

Mobile portable cement mortar mixer mobile self-loading concrete mixer
Self-loading concrete mobile cement mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed,measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixeris just like a small car and the operator can drive it to where it needs to go. Self loading mobile concrete mixer is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site.

Cases Of Our Self Loading Concrete Mixer

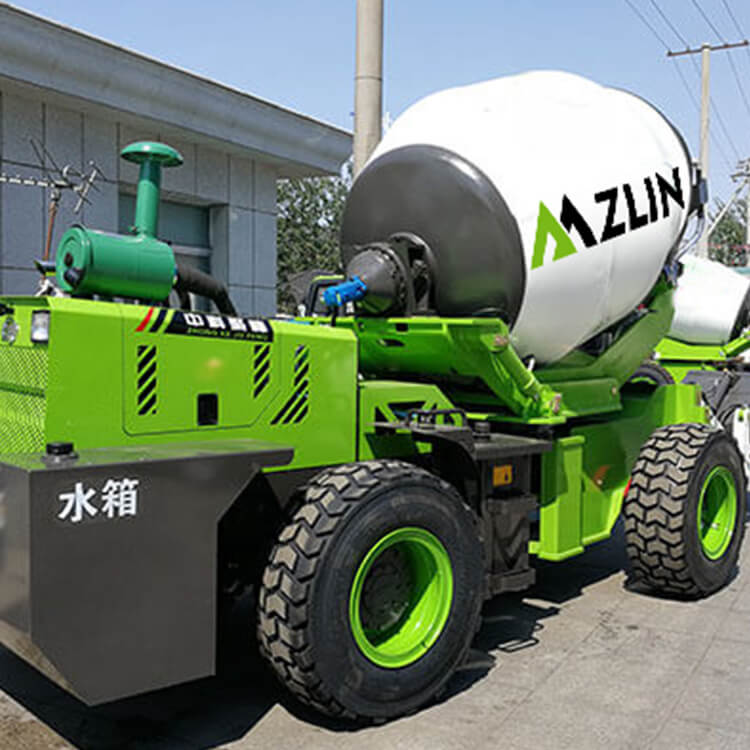

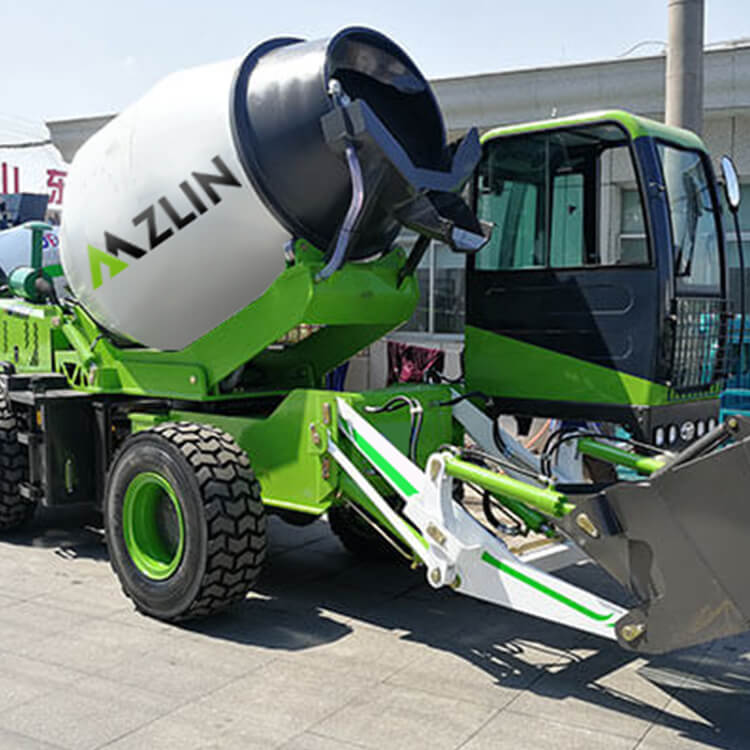

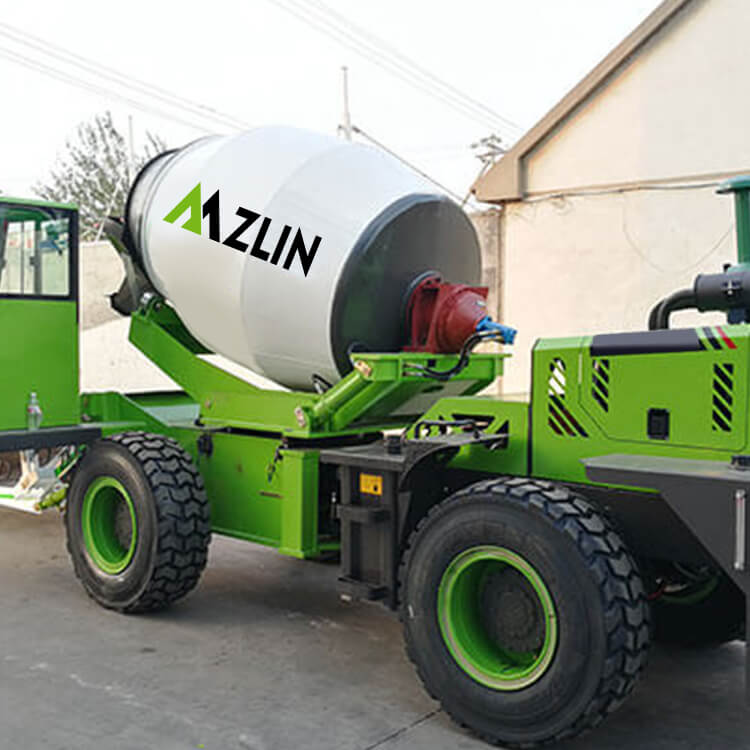

Good news! On February 17, 2020, ZLIN Group shipped two self-loading concrete mixers to the Philippines. One model is ZL-2.0 and the other one is ZL-3.5. After finishing the production, we immediately arranged to deliver these mixers to the customer. We took some photos of loading the machines at the factory.

The ZLIN-2.0 self loading concrete mixer can best match customer’s construction projects. After confirmation, the customer is satisfied with the equipment, including its design, its function and its best price.


Click to watch the video

Recommendation

TECHNICAL PARAMETER

Brand name ZLIN
Vehicle parameters 2 square (90 °rotation)
Model Yuchai 4102 supercharged
Dimension 7300*1800*3450
Wheelbase (mm) 2660
Overall mass (kg) 6000
Drive form torque converter
Max. speed(km/h) 30
Max. climbing degree(°) 30
Min. turning radius(mm) 5270
Min. ground clearance (mm) 280
Engine
Model Yuchai/Yunnai 4102 supercharged
Rated power 78/76kw
Transmission
Model ZL-265 transmission
Gears Gear 4 forward 4 backward
Commonly used parameters
Equipment model JBC-20
Hydraulic system parameters
Speed ratio of reducer HJ80-43
Duplex pump C50/32
Motor Cycloid 125
Water supply parameters
Water tank capacity (L) 500
Water supply method Time relay
Maintenance refill volume
Fuel tank (L) 75
Oil 16
Mixing and unloading
Drum geometry capacity (L) 3500
Drum rotation speed 18-21 rpm
Mixing capacity 2.0 cubic meters/tank

STRONG PRODUCTION STRENGTH AND EXCELLENT SERVICE

There are many suppliers in the market that manufacture self-loading mixers. You can find self loading concrete mixer suppliers online or offline. Of course, you can also look for suppliers locally or abroad. But most importantly, you need to find a reputable supplier with good reviews from many customers. ZLIN GROUP has focused on the construction machinery industry for many years. We always adhere to the vision of providing better construction machinery to more customers and creating more value for them. So far, we have exported multiple self-loading concrete mixer trucks to different countries such as Philippines, Indonesia, Vietnam, Pakistan, etc.


FAQ:

Q: Are you the original manufacturer?
A: Yes, Zlin is construction machinery manufacturers in China, we have the full range of products you need.

Q: How is the quality of your products?
A: We have more than 10 years experience in concrete machinery maintenance. All our machines are carefully and strictly inspected and maintained by our skilled workers according to national and international standards, and we will test each piece of equipment until it works well before delivery. We guarantee good performance and high quality of every machine we deliver to our customers.

Q: What is the price?
A: We have our own factory and have many customers all over the world, we have the best price, we can give you lower price because we are the main source.

Q: Will you provide after-sales service?
Answer: Yes. Our new machine is guaranteed for 12 months, in addition to that, we have a professional after-sales service team to solve your problems thoroughly and promptly.

Q: How about your concrete pump spare parts service?
A: We are committed to providing our customers with concrete pump spare parts of the highest quality, precise suitability and fast delivery and service. Guarantee that once a customer submits a spare parts request or product list to us, it will be dealt with quickly and properly.
