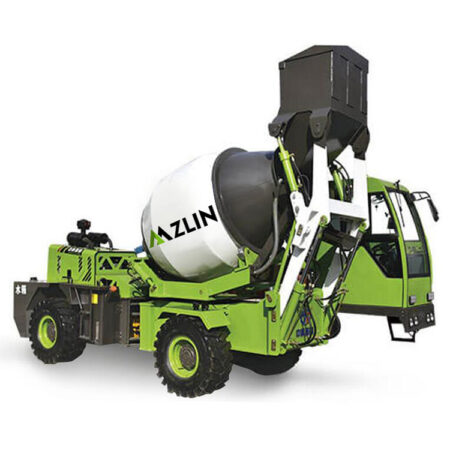

1.8 m³ Self-Loading Mixing Truck

Product Description

1.8 m³ self-loader concrete mixer has the characteristics of narrow body, short wheelbase, small turning radius and other personalized design, and has strong advantages in the working environment of limited height, width and length. The mixing tank can be rotated 270°, and the machine can be unloaded on all sides without moving, and only one person can operate it during operation.

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

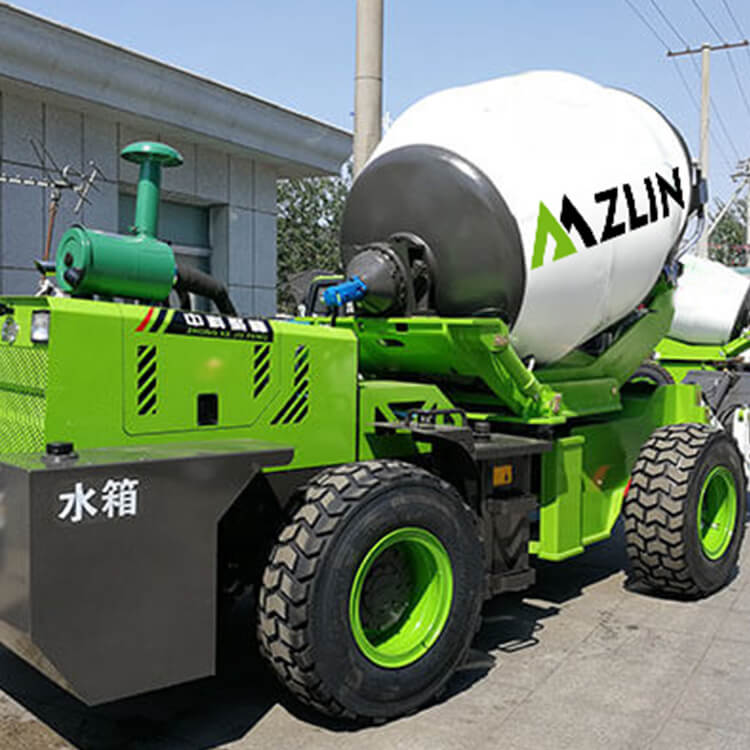

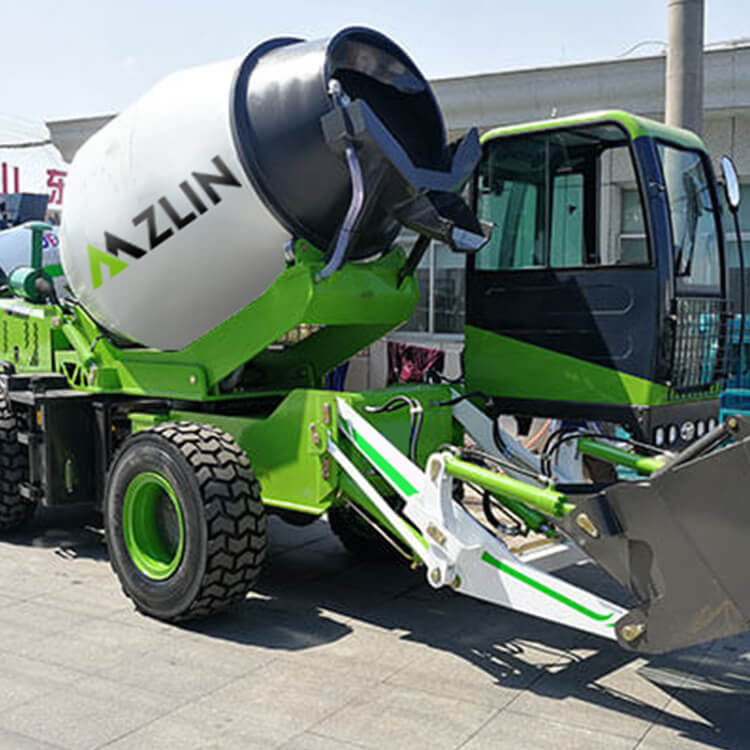

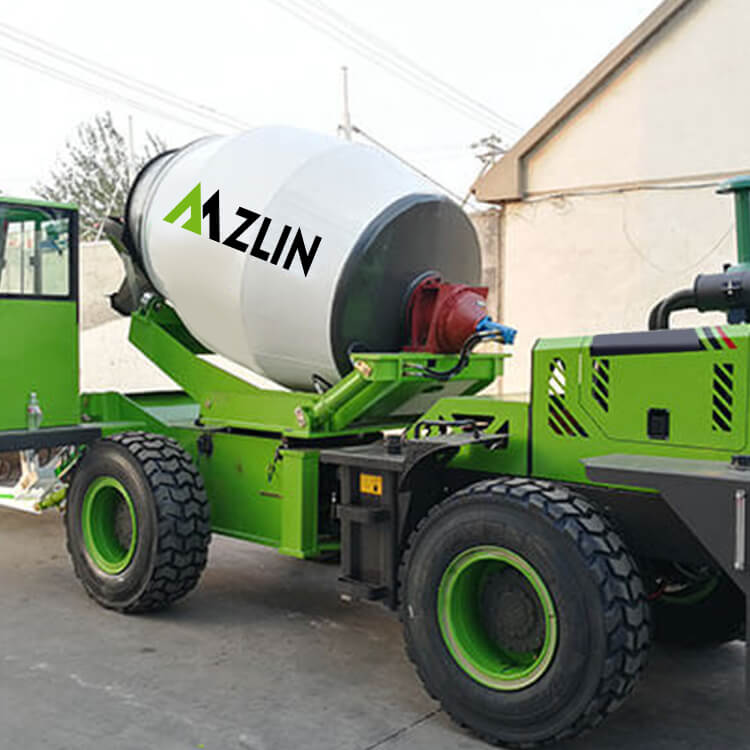

ZLIN Self Loading Concrete Mixer

Δ  Self-loading concrete mixture for sale can rotate 270 degrees;
Δ  Self load, meter, mix and discharge;
Δ  Compact structure and easy movement—four wheels steering;
Δ  High working efficiency and less energy consumption;
Δ  High stirring quality and short stirring time.
Δ  The main hydraulic components are imported!
Δ  At least 5 workloads are saved per day!
Δ  Save electricity 100 degrees everyday without a blender!

As a mature manufacturer of self-loading concrete mixer, ZLIN designed this series mobile concrete mixer which is suitable for different projects. It is equipped famous brand components such as diesel engine, hydraulic oil pump and motors, valves, seals and hose etc. It is easily to be operated and cost efficient to produce and distribute fresh concrete for mining, industrial complexes, shopping plazas, office buildings, warehouses, and residential homes for applications such as footings, poured foundations, floors, sidewalks, driveways, curbs, patios, pools etc.

The Performance of Self-Loading Concrete Mixer

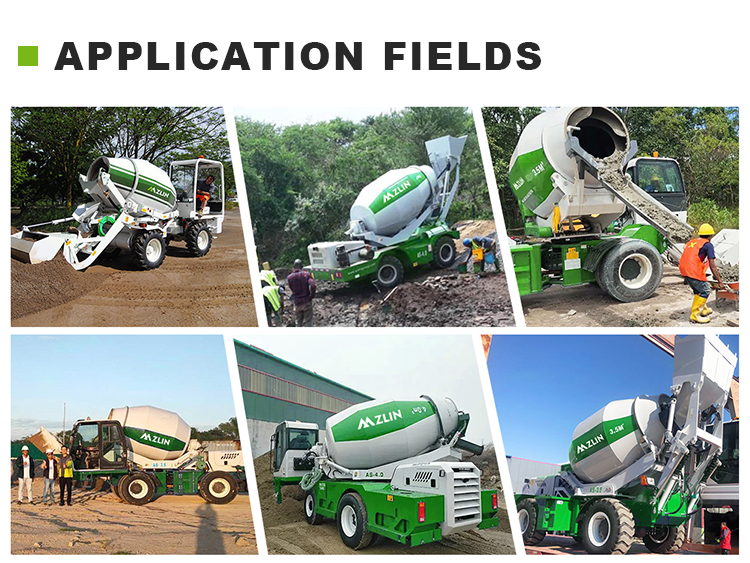

In the process of road construction in rural areas, the self-loading concrete truck mixer can not only automatically produce the required road construction finished concrete, but also unload materials while transporting. The 270° rotating function of the mixing tank is very practical, and it can unload concrete at a height of 1 meter, which is convenient and efficient, so it is favored by the majority of small and medium-sized projects.

In addition to road construction in rural areas, automatic feeding mixer trucks can also play a significant role in other rural infrastructure projects, ranging from trenching, slope protection, and foundation construction to building bridges, houses, and tunnels. Concrete engineering, it can always bring enough concrete, which is convenient and cost-effective, and has good efficiency and effect.


Click to watch the video

Recommendation

TECHNICAL PARAMETER

Brand name ZLIN
Vehicle parameters 1.8 square
Model Yunnai 490 supercharged
Dimension 7300*1800*3450
Wheelbase (mm) 2660
Overall mass (kg) 6000
Drive form torque converter
Max. speed(km/h) 30
Max. climbing degree(°) 30
Min. turning radius(mm) 5270
Min. ground clearance (mm) 280
Engine
Model Yunnai 490 supercharged
Rated power 78kw (115.6hp)
Transmission
Model ZL-265 transmission
Gears Gear 4 forward 4 backward
Commonly used parameters
Equipment model JBC-18
Hydraulic system parameters
Speed ratio of reducer HJ80-43
Pump CBFC50/40
Motor BM5-160
Water supply parameters
Water tank capacity (L) 400
Water supply method Time relay
Maintenance refill volume
Fuel tank (L) 63
Oil 16
Mixing and unloading
Drum geometry capacity (L) 2680
Drum rotation speed 13 rpm
Mixing capacity 1.8 cubic meters/tank

FIND A REPUTABLE SUPPLIER - ZLIN

There are many suppliers in the market that manufacture self-loading mixers. You can find self loading concrete mixer suppliers online or offline. Of course, you can also look for suppliers locally or abroad. But most importantly, you need to find a reputable supplier with good reviews from many customers. ZLIN GROUP has focused on the construction machinery industry for many years. We always adhere to the vision of providing better construction machinery to more customers and creating more value for them. So far, we have exported multiple self-loading concrete mixer trucks to different countries such as Philippines, Indonesia, Vietnam, Pakistan, etc.

If you are interested in our self-loading concrete mixer truck, welcome to contact us for quotation immediately. We promise you can get a reply within 24 hours.


FAQ:

Q: Where is the self-loading concrete mixer truck suitable for?

A: Self-mixing concrete truck are suitable for various construction sites. Whether it is highway slope protection, farmland irrigation and canals, sand and gravel yard mixing and unloading, the contractors all use self-loading concrete machine.

Q: How long does it take in total from feeding to discharging?

The cycle time from feed to discharge was approximately 12 minutes.

Q: How to load the container?

A: A self-loading mobile diesel concrete mixer needs to be equipped with a 40-high cabinet.

Q: What’s the specification of self-loading concrete mixer truck?

A: We can offer you various types and capacities of self-feeding mixers: 1.2 m³ , 1.5 m³, 1.8 m³ , 2.0 m³ , 2.6 m³ , 3.5 m³ , 4.0 m³ , 5.5 m³
