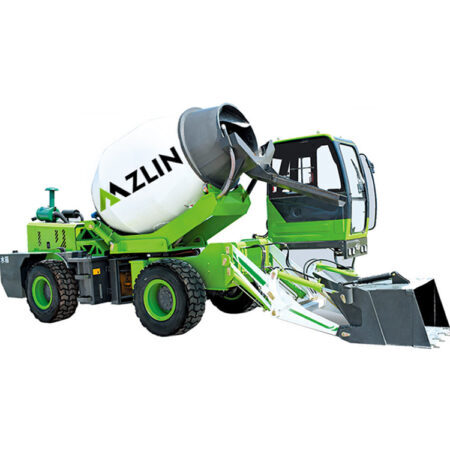

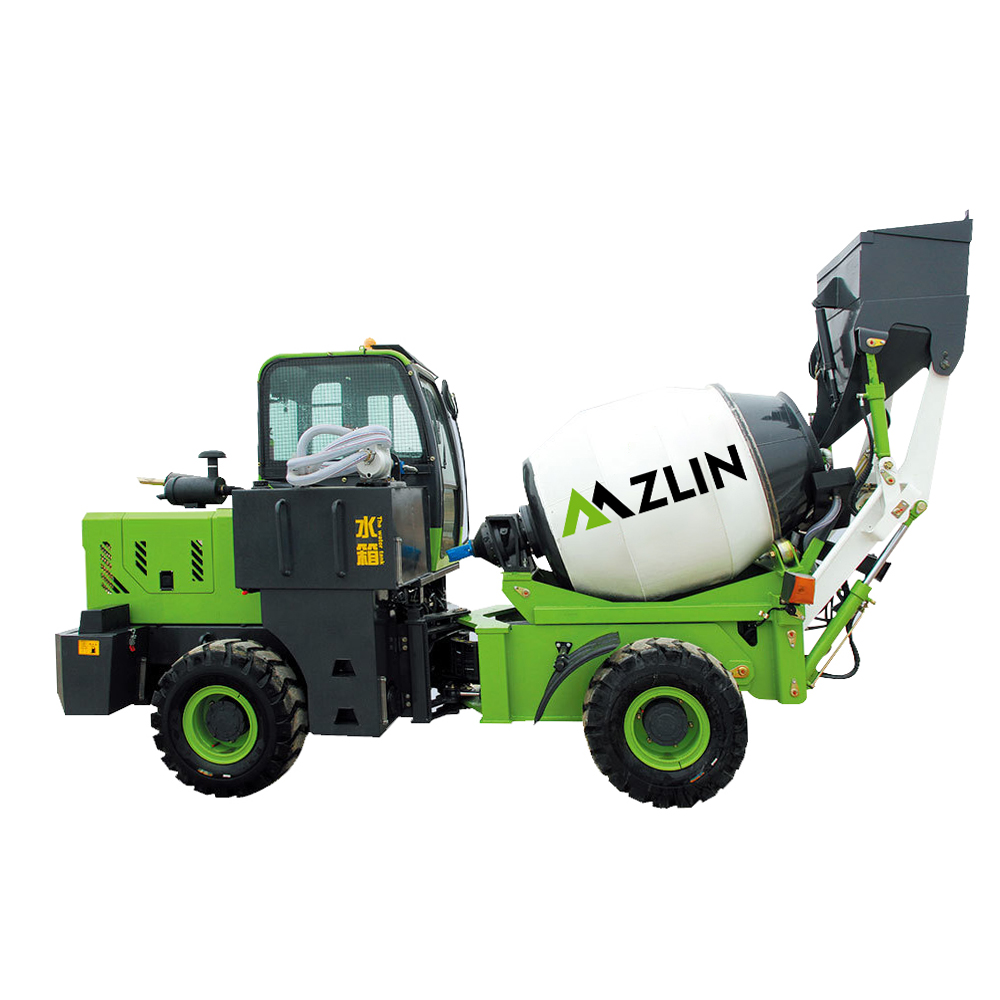

1.2 m³ Self-Loading Mixing Truck

Product Description

1.2 m³ self-loader concrete mixer has the characteristics of narrow body, short wheelbase, small turning radius and other personalized design, and has strong advantages in the working environment of limited height, width and length,and only one person can operate it during operation.

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

ZLIN Self loading concrete mixer
1. ZLIN Self-loading mixer truck, one machine with multiple functions
Bucket downturn function, realize the loading function, truly realize the multi-purpose function of one machine
2. ZLIN Self-loading mixer truck, liberate productivity
Fully automatic mixer truck integrates loading, mixing, transportation and unloading
3. ZLIN Self-loading mixer truck, unloading is more thorough
The forward-tilt unloading function makes unloading more thorough and faster
4. ZLIN Self-loading mixer truck, large water tank design
Enlarge the water tank to meet the needs of working in a water-deficient environment

As a mature manufacturer of self-loading concrete mixer, ZLIN designed this series mobile concrete mixer which is suitable for different projects. It is equipped famous brand components such as diesel engine, hydraulic oil pump and motors, valves, seals and hose etc. It is easily to be operated and cost efficient to produce and distribute fresh concrete for mining, industrial complexes, shopping plazas, office buildings, warehouses, and residential homes for applications such as footings, poured foundations, floors, sidewalks, driveways, curbs, patios, pools etc.

Cases Of Our Self Loading Concrete Mixer

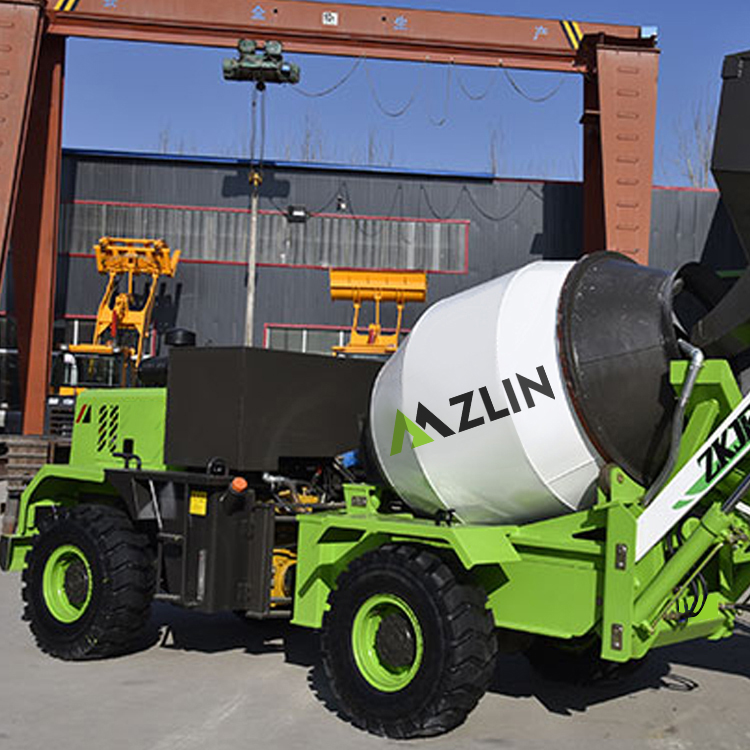

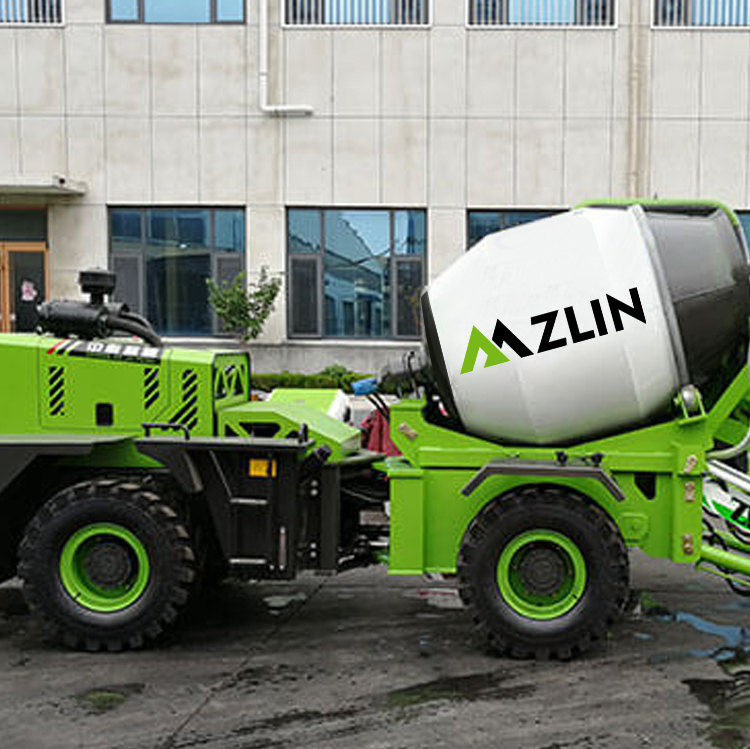

1.2 m3 Self Loading Concrete Mixer Sold to Salvador

ZLIN has exported self-loading concrete mixers to El Salvador in February 2020. Now I’ll show you some photos before the shipment. As you can see, this self loading concrete mixer for sale in El Salvador has an attractive look. It will be used to provide great help to the customer’s project.

“I got ZL-1.2 for road pavement project. These projects are characterized in narrow and rough paths. ZL-1.2 can be used in rugged terrain, simple operation saves a lot of labor cost.”

-Eassy from Malaysia

“I am a construction contractor in Tanzania. Having browsed and quoted several company, I choose ZLIN finally. Their team is very professional, its suggestions are helpful and the self loader mixer truck works well.”


Click to watch the video

Recommendation

TECHNICAL PARAMETER

Brand name ZLIN
Vehicle parameters 1.2 square
Model Yunnai 490 supercharged
Dimension 7300*1800*3450
Wheelbase (mm 2560
Overall mass (kg) 4920
Drive form torque converter
Max. speed(km/h) 30
Max. climbing degree(°) 30
Min. turning radius(mm) 4700
Min. ground clearance (mm) 280
Engine
Model Yunnai 490 supercharged
Rated power 55kw
Transmission
Model ZL-265 transmission
Gears Gear 4 forward 4 backward
Commonly used parameters
Equipment model JBC-12
Hydraulic system parameters
Speed ratio of reducer KY07-2-0
Pump CBFC50/32
Motor BM5-125
Water supply parameters
Water tank capacity (L) 400
Water supply method Time relay
Maintenance refill volume
Fuel tank (L) 63
Oil 16
Mixing and unloading
Drum geometry capacity (L) 1700
Drum rotation speed 13 rpm
Mixing capacity 1.2 cubic meters/tank

FIND A REPUTABLE SUPPLIER - ZLIN

There are many suppliers in the market that manufacture self-loading mixers. You can find self loading concrete mixer suppliers online or offline. Of course, you can also look for suppliers locally or abroad. But most importantly, you need to find a reputable supplier with good reviews from many customers. ZLIN GROUP has focused on the construction machinery industry for many years. We always adhere to the vision of providing better construction machinery to more customers and creating more value for them. So far, we have exported multiple self-loading concrete mixer trucks to different countries such as Philippines, Indonesia, Vietnam, Pakistan, etc.

If you are interested in our self-loading concrete mixer truck, welcome to contact us for quotation immediately. We promise you can get a reply within 24 hours.

What Services Can ZLIN Provide For You? – After-Sales Service

1. One year warranty
2. Go to your site and help you install and debug;
3. Free training for your operator;
4. Any problem, we will be here to serve you, or go to your city, check and maintain;
5. Spare parts are in stock, any needs, please leave your message on my website, we will arrange shipment within 48 hours;
6. Introduce other users to buy our self loading concrete mixers, we will give you some commission.
