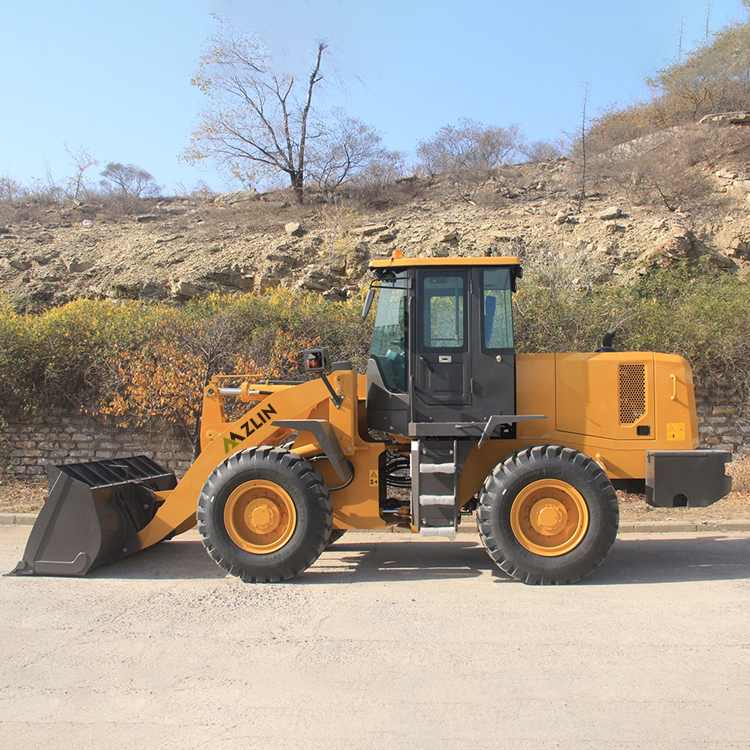

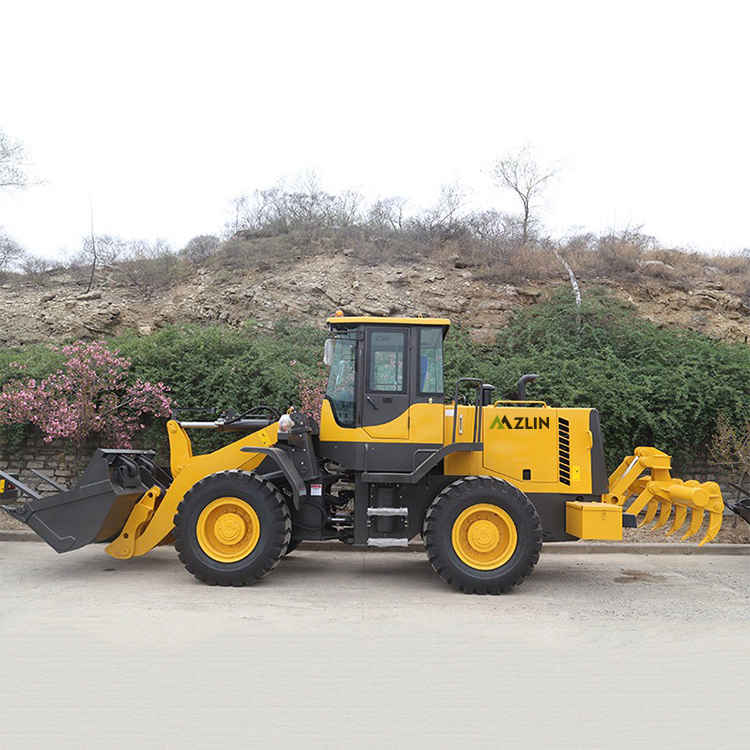

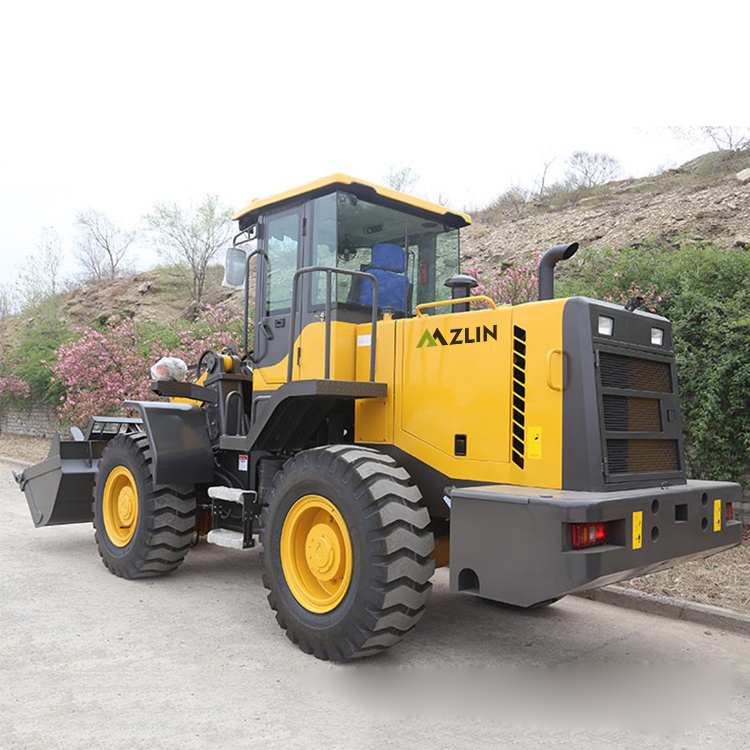

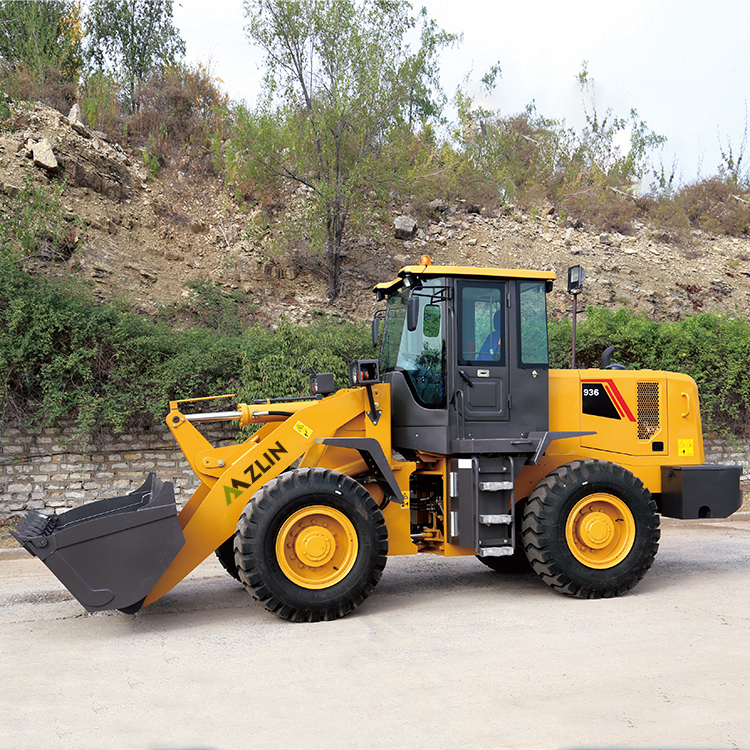

2cbm Wheel Loader

Wheel loader is widely used in construction projects such as highways, railways, buildings, hydropower, ports, and mines. It is mainly used to shovel and load loose materials such as soil, sand and gravel, lime, coal, etc. It can also perform light excavation operations on ores, hard soil, etc.

Chat [email protected] Inquiry

Feature

  1. Equipped with Weichai engine, strong power, improved the efficiency and performance.
  2. 12 per cent increase in productivity by increasing the size of bucket.
  3. 18 Mpa working hydraulic system pressure, efficient energy saving.
  4. Greater weight and load capacity.
  5. The new cooling system design can meet the requirements of -20 ~ 43 °C ambient temperature.
  6. Installation of additional shock absorbers to further improve cab sealing and reduce vibration and noise.

Appliction

Loaders find extensive applications across various industries. In construction, they play a vital role in loading and unloading materials, transporting them within the site, and assisting in excavation and grading tasks. In mining operations, loaders are used to handle heavy loads of ores, rocks, and minerals, ensuring efficient extraction and transportation. In agriculture, loaders facilitate tasks like loading and unloading feed, hay, and other agricultural products, as well as assisting in land preparation and maintenance. Landscaping professionals rely on loaders for moving soil, mulch, and plants, as well as for grading and leveling surfaces. With their versatility and adaptability, loaders are indispensable machines in numerous scenarios, providing efficiency and productivity in a wide range of applications.

Technical Parameters

Performance 1 Rated loading 3000kg
2 Overall weight 10200kg
3 Bucket capacity 1.7m3
4 Maximum traction force 98KN
5 Maximum breakout force 120KN
6 Maximum grade ability 30℃
7 Maximum dump height 3100mm
8 Maximum dump reach 1130mm
9 Overall dimension (L×W×H) 7120*2375*3230mm
10 Minimum turning radius 5464mm
Engine 11 Model Deutz enginesWP6G125E22
Type Vertical, in-line, water cooled, 4-stroke diesel engine
13 No. Of cylinder-bore*stroke 6-108*125
14 Rated power 92kw
15 Maximum torque 500N.m
16 Min. Fuel-consume ratio ≦210Kw/h
Transmission system 17 Torque converter YJ320B-I
18 Gearbox mode Power shaft normally engaged straight gear
Gears 4 forward, 2 reverse
20 Maximum Speed 38km/h
Drive axles 21 Main Reducing Spiral bevel gear grade 1reduction
22 Decelerating Mode Planetary reduction grade 1
23 Wheel Base (Mm) 2740mm
24 Ground Clearance 400mm
Hydraulic system System Working Pressure 18MPa
25 Total Time 9.3±0.5s
Brake system 26 Service brake air assist disc brake on 4 wheels
27 Parking brake Manual disk brake
Tyre 28 Type specification 17.5-25
29 Front tyre pressure 0.4Mpa
30 Rear tyre pressure 0.35Mpa
