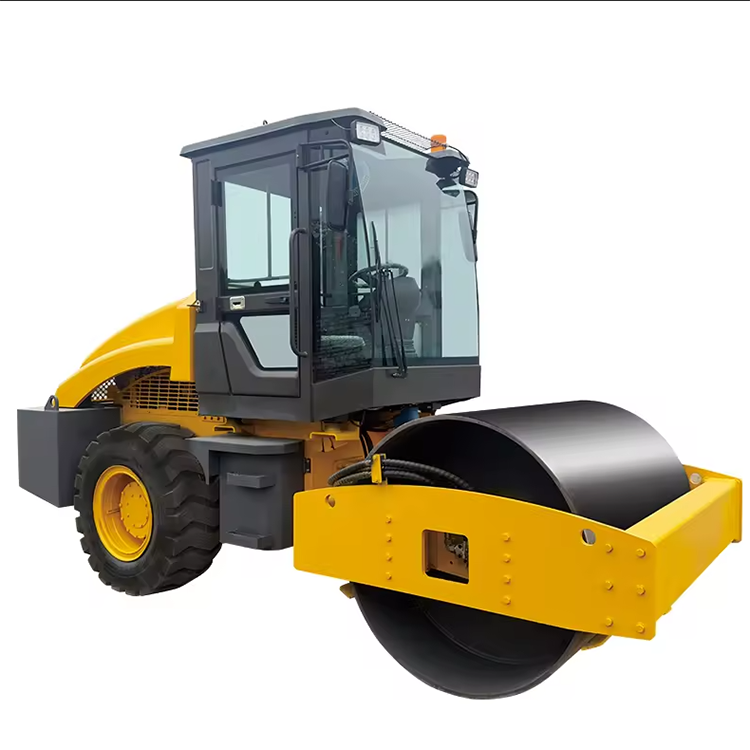

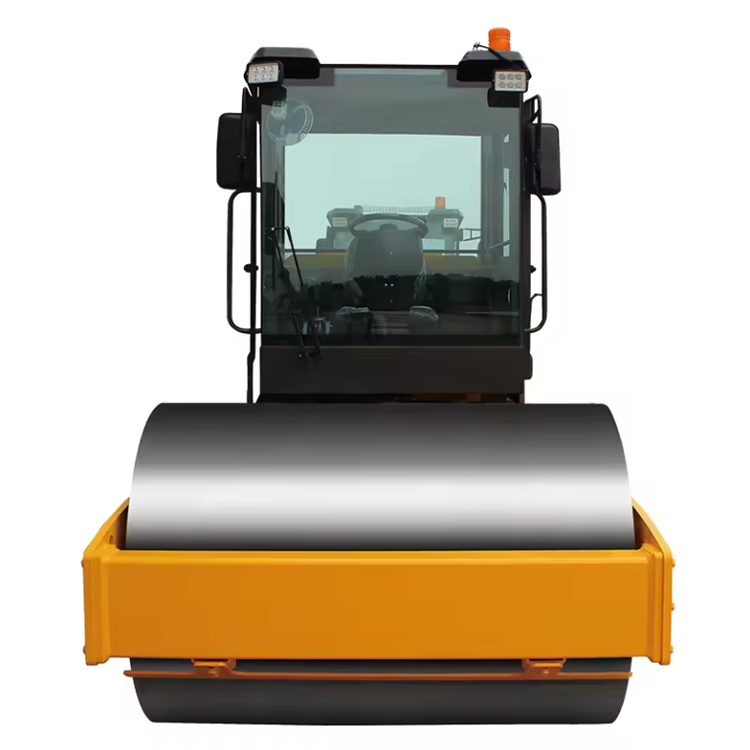

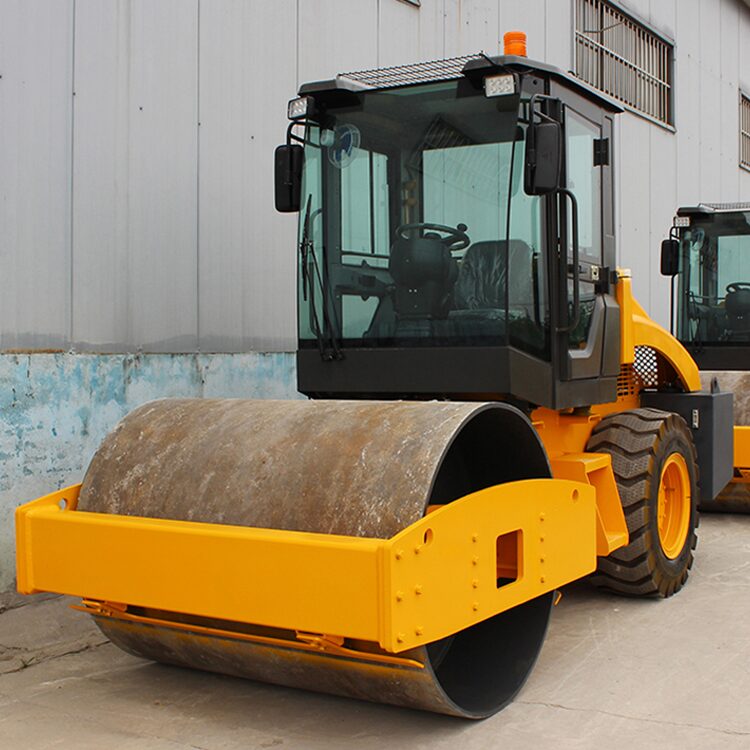

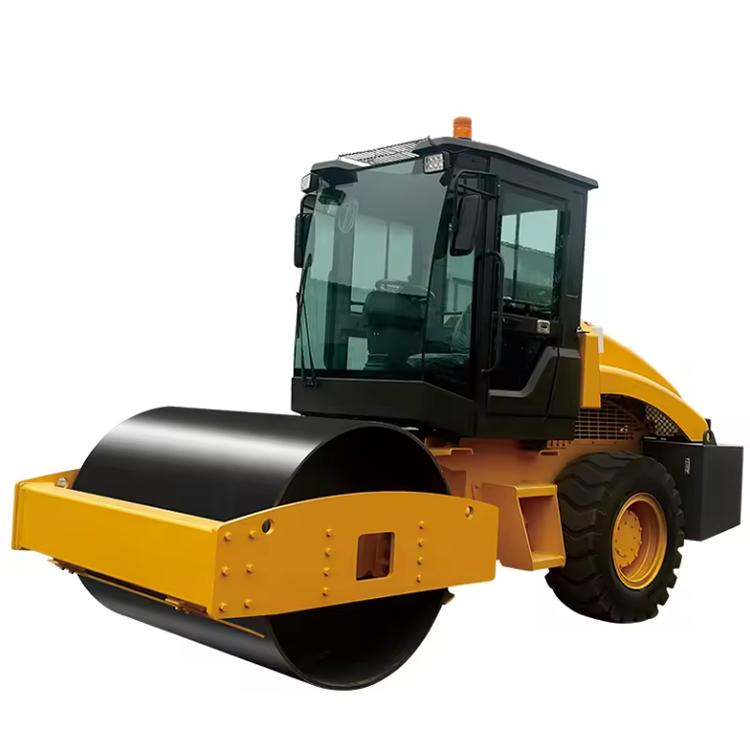

5Ton Single Drum Road Roller

Heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.

Chat [email protected] Inquiry

FEATURES

Hydraulic walking, hydraulic vibration, hydraulic steering, continuously variable speed, one lever operation.

The walking system adopts closed plunger pump and plunger motor.

The vibration system equipped with hydraulic vibration pumps and motors, which have strong excitation force and reliability.

Enhanced dedicated drive axle with high load intensity and good reliability.

Adopting LCD instrument panel assembly, various vehicle information is clear at a glance and can be accessed at any time.

The front and rear LED headlights are designed with user-friendly lighting, making it easy to work even at night.

Compact structure, small turning radius, strong climbing ability, flexible maneuverability, and reliability.

Scope of Application

Single drum road rollers, also known as vibratory rollers or compactors, are versatile machines commonly used in various construction and maintenance projects. Here are some typical scenarios where single drum road rollers are utilized:

Road Construction: Single drum road rollers are extensively used in road construction projects to compact soil, gravel, asphalt, and other materials. They are employed to achieve proper compaction and density of the roadbed layers, ensuring the stability and longevity of the road surface.

Asphalt Compaction: Single drum road rollers are essential for compacting asphalt layers during pavement construction. They are used to achieve the desired density and smoothness of the asphalt surface, enhancing its load-bearing capacity and resistance to wear and tear.

Highway Maintenance: Single drum road rollers are deployed in highway maintenance projects to repair pavement defects, such as potholes, cracks, and uneven surfaces. They are used to compact patching materials, asphalt overlays, and surface treatments, restoring the smoothness and integrity of the roadway.

Construction of Sports Courts: Single drum road rollers are employed in the construction of sports courts, such as tennis courts and basketball courts. They help to compact the base and surface layers of asphalt or concrete, creating a uniform and level playing surface that meets the requirements for sports activities.

Overall, single drum road rollers are versatile machines that play a vital role in a wide range of construction, paving, and compaction projects. Their ability to achieve uniform compaction and create smooth surfaces makes them indispensable equipment in the construction

Technical Parameters

Weight Working mass 5000kg
Compaction Static line load 157N/cm
Nominal amplitude 1.6mm
Vibration frequency 60Hz
Vibration force 100KN
Engine Model 4b2-50v32
Type Diesel engine water-cooled 4-stroke four-cylinder
Power 36.8kw/2400r/min
Emission standard EURO II
Fuel capacity 60L
Lubricating oil quantity 8.9L
Fuel consumption 285g/kwh
Traveling Speed 0-18kw/h
Turning radius 2350mm
Theoretical grade ability 30%
Dimension Drum width 1450mm
Drum diameter 1000mm
Wheel track 2350mm
Operating Weight 5T
Overall length 4500mm
Overall width 1650mm
Overall height 2670mm
Package dimension 4600X1800X2900mm
