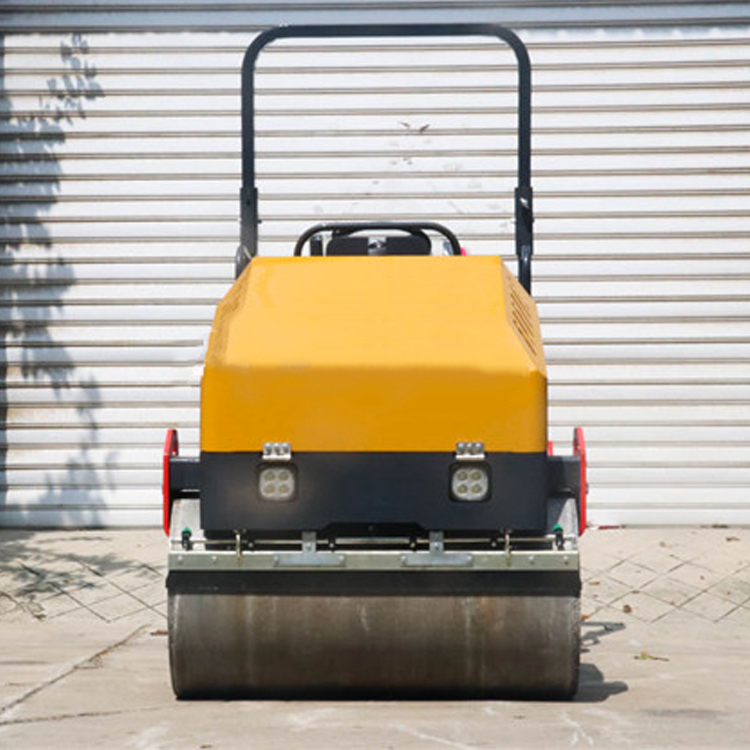

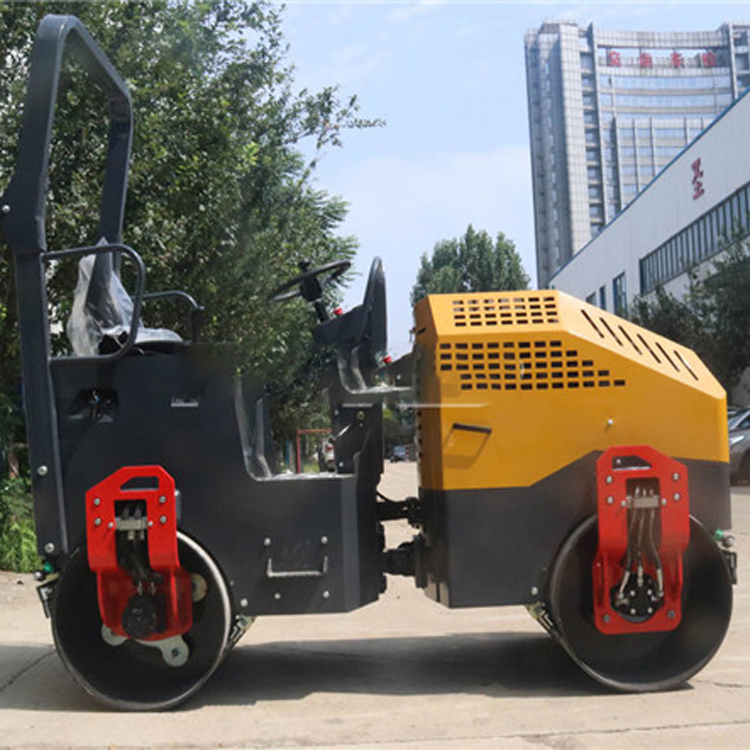

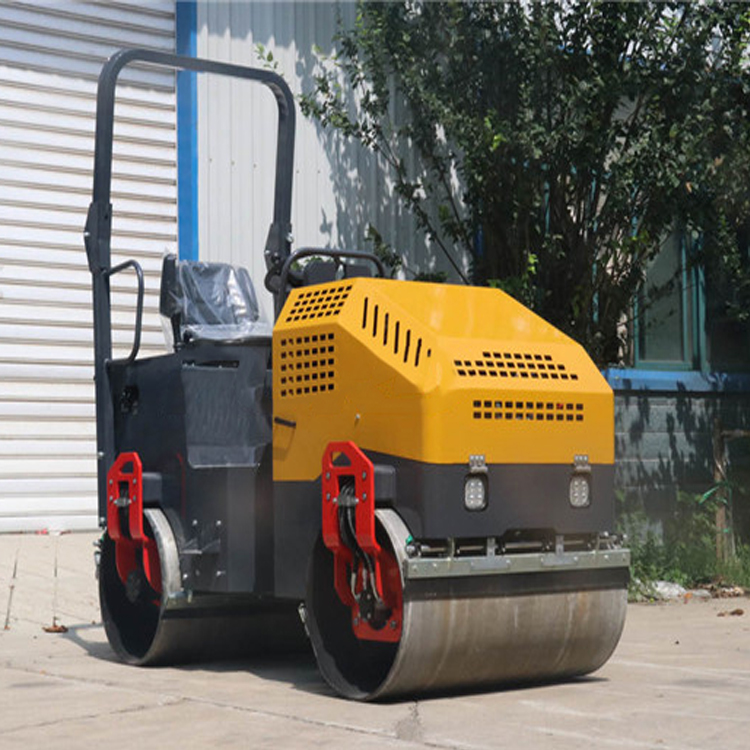

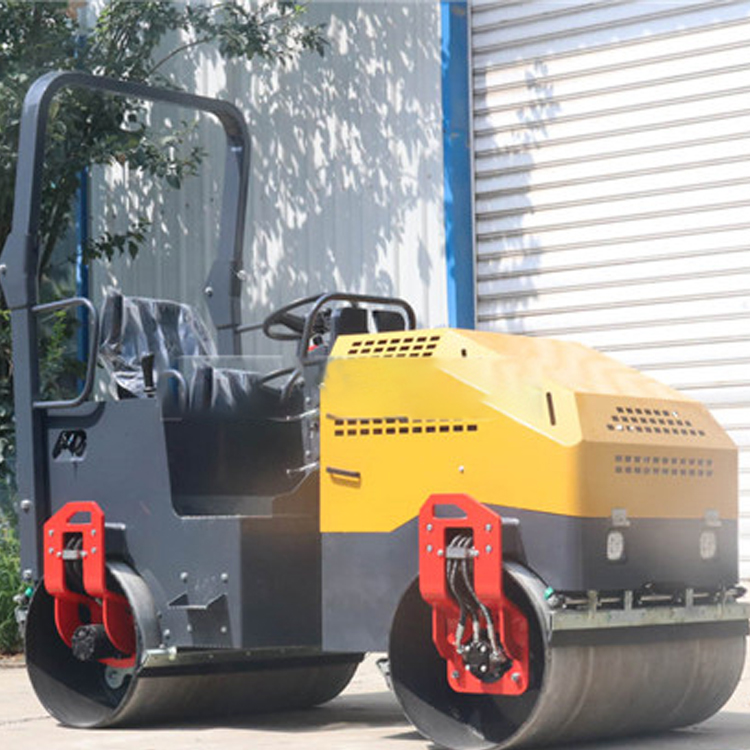

3Ton Double Drum Road Roller

Heavy-duty vibratory rollers are commonly used in road construction, pavement maintenance, and other infrastructure projects. They are highly effective for achieving high compaction densities, ensuring the stability and durability of the finished surface.

Chat [email protected] Inquiry

Feature

  1. User-friendly, luxury seats and combination instrument panel control. Low maintenance cost, safe and reliable performance, equipped with vibration timers for better control of work performance;
  2. Adopts beautiful fiberglass outer cover, longer service life;
  3. Hydraulic vibration and hydraulic steering have reliable performance and good functionality, price ratio, and more reliable;
  4. The front and rear vibration wheels are equipped with mud scraping and watering devices;
  5. Equipped with Changfa diesel engine, has strong power, convenient maintenance.
  6. Compact structure and small volume, which can be used for compaction operations in narrow areas;
  7. Fully hydraulic continuously variable transmission, imported hydraulic system, double steel wheel width 1200mm, steel wheel diameter 620mm;
  8. Dual vibration and drive ensure the overall compaction and climbing ability.

Appliction

Small road rollers are mainly used for compaction and leveling of ditch foundations, roads, sports venues, asphalt surface operations, compaction and repair of engineering foundations such as gravel and sand, school playground runways, and rolling lawns.

Technical Parameters

Weight Working mass 3000kg
Dimension Length 2520mm
Total height including ROPS 2430mm
Min. loading height 1800mm
Full width 1315mm
Wheelbase 1760mm
Drum width, front/rear 1200mm
Drum diameter, front/rear 700mm
Engine Model CF2B35-T453
Number of cylinders 3-cylinder
Rated power 26kw/2400rpm
Emission standards Euro IV
Drive Traveling speed 0-10kn/h
Grade ability 40/30%
Shake Vibration frequency, ex 60Hz
Excitation force, ex 30Kn
Vibration frequency, rear 60Hz
Excitation force, rear 60Kn
Tank capacity Hydraulic oil tank 48L
Fuel tank 40L
Water tank 200L
