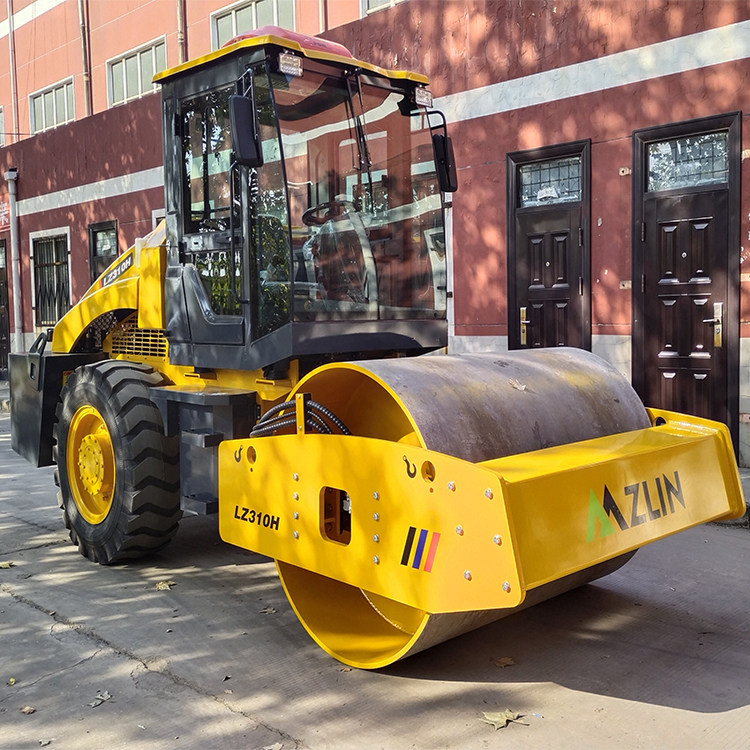

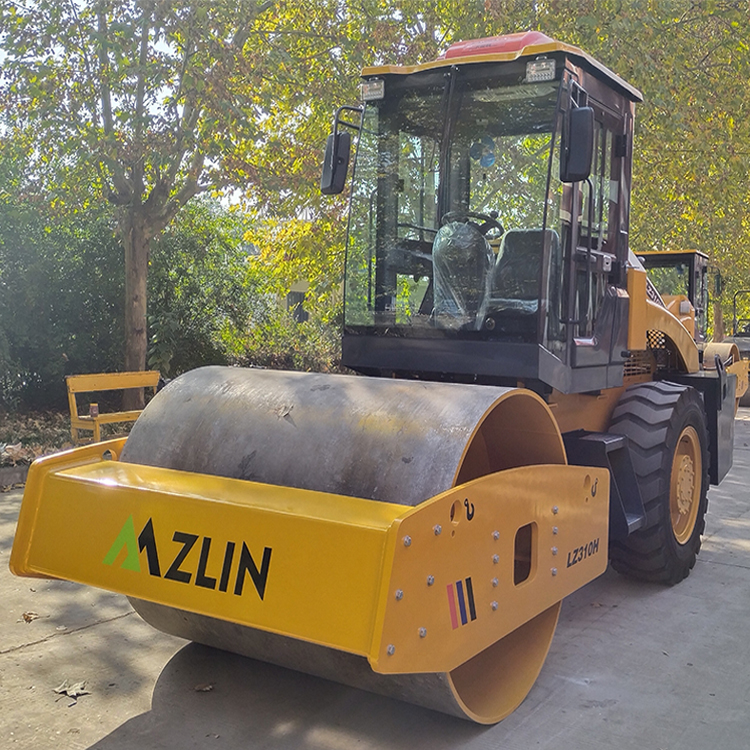

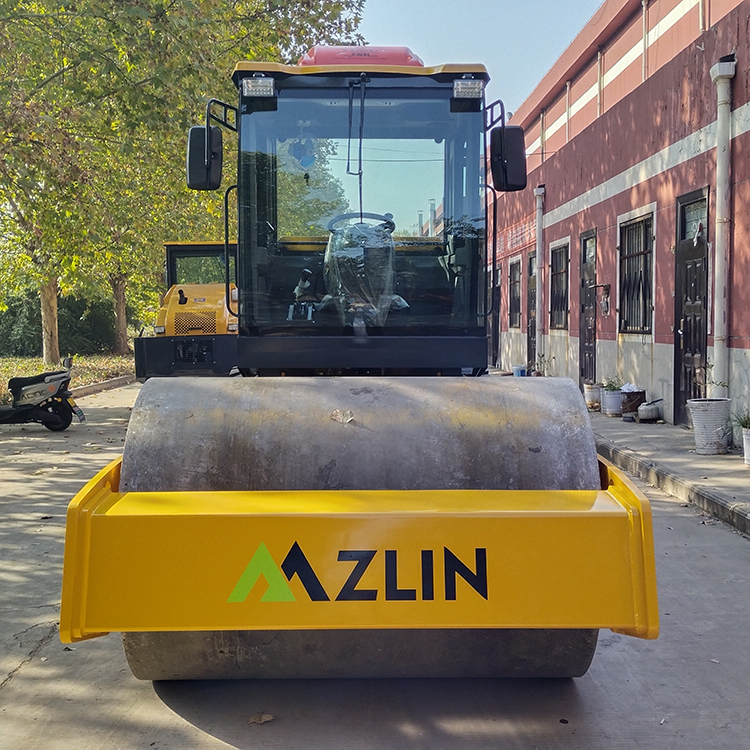

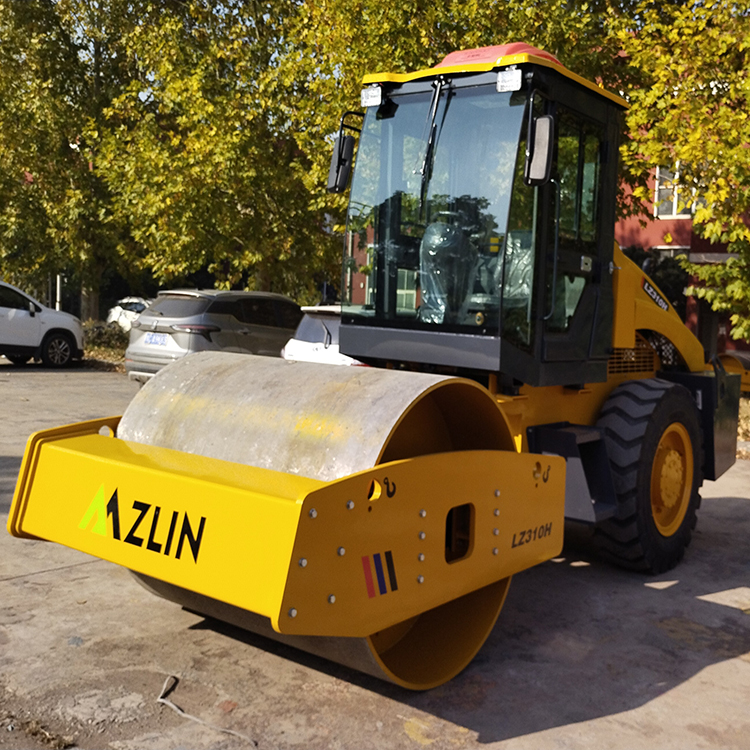

10Ton Single Drum Road Roller

The 10-ton single drum road roller is a heavy-duty construction equipment used primarily for compacting and leveling various types of surfaces, including soil, gravel, asphalt, and concrete, during road construction, pavement maintenance, and other infrastructure projects

Chat [email protected] Inquiry

Feature

■ Hydraulic walking, hydraulic vibration, hydraulic steering, continuously variable speed, one lever operation.

■ Equipped with Euro IV engine, environmentally friendly, energy-saving, reliable, low-noise, and has a large power reserve.

■ The walking system adopts closed plunger pump and plunger motor.

■ The vibration system equipped with hydraulic vibration pumps and motors, which have strong excitation force and reliability.

■ Enhanced dedicated drive axle with high load intensity and good reliability.

■ Adopting LCD instrument panel assembly, various vehicle information is clear at a glance and can be accessed at any time.

■ The front and rear LED headlights are designed with user-friendly lighting, making it easy to work even at night.

■ Compact structure, small turning radius, strong climbing ability, flexible maneuverability, and reliability.

Appliction

Heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.

Technical Parameters

Main Technical Parameters Working mass 9500kg
Static line load 245N/cm
Amplitude 0.5mm
Vibration frequency 50hz
Centrifugal force 150kn
Walking speed 0-9.5km/h
Gradeability 30%
Turning radius 5700mm
Dimensions 4795*1865*2645mm
Vibrating wheel width 1700mm
Vibrating wheel diameter 1200mm
Wheelbase 2585mm
Engine power 70kw

CONFIGURATION

Category Brand Model
Engine Changfa CF4C100T
Drive axle  Luoyang pioneered LZ25E
Travel hydraulic pump  Hytek Power HP4VC63HW
Travel hydraulic motor  Hytek Power HAA2FM125
Vibratory Pump Parker PGP530
Vibratory motor Parker PGM5125
Coupling Shanghai Reijay
