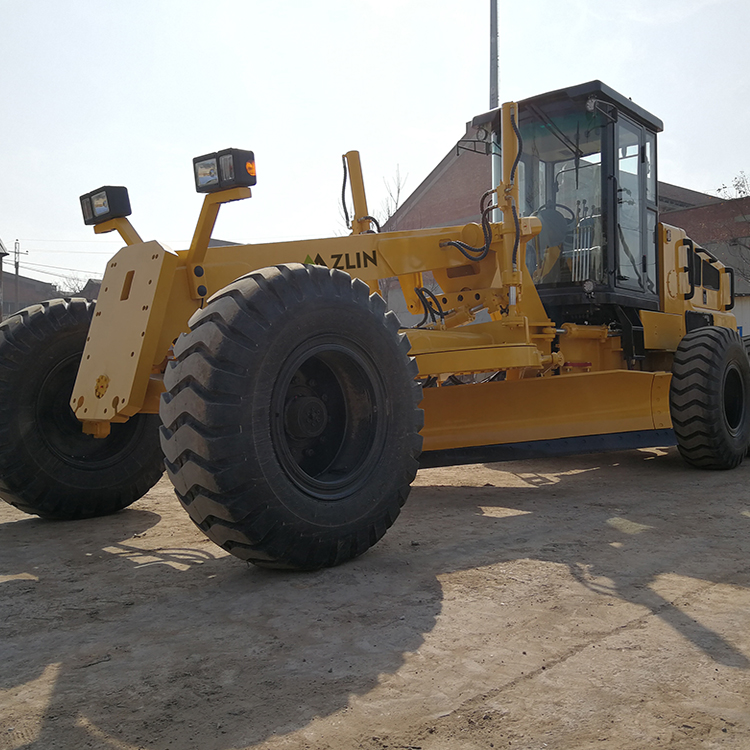

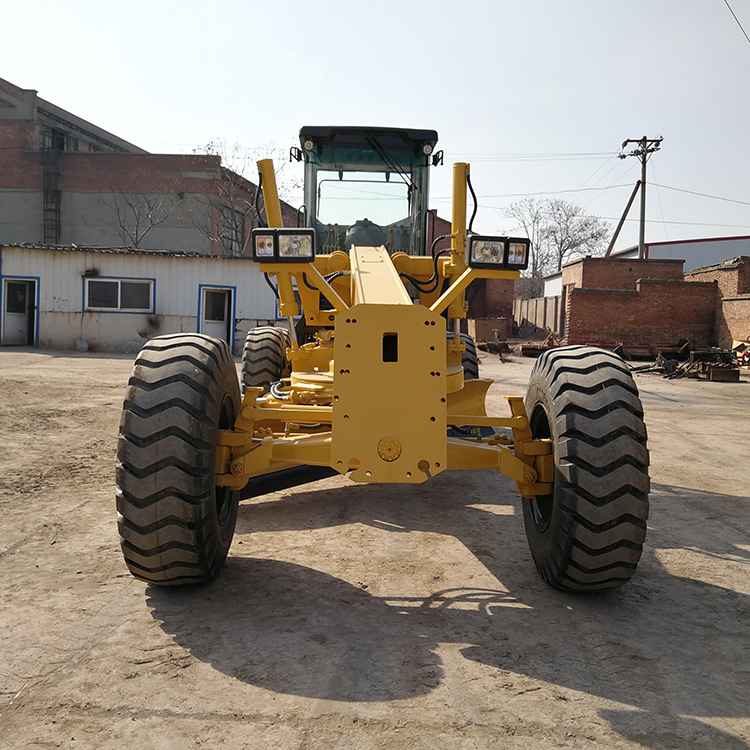

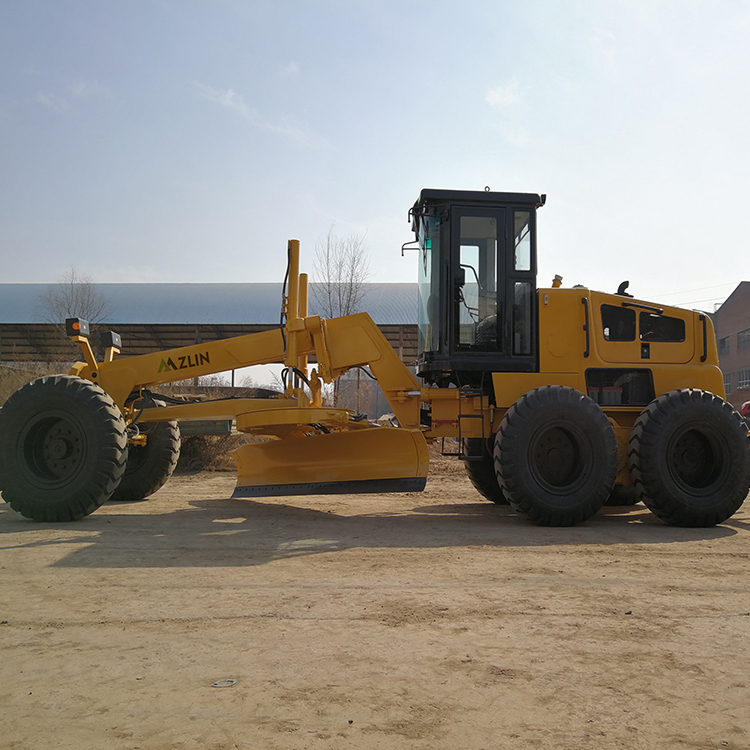

PY165C Self-propelled articulated motor grader is suitable for large-scale land leveling in foundation constructions. It can be used for ditching, grading, slope scraping, bulldozing, ripping, virgin land, scarifying and snow-removing etc., which is modernized construction equipment of multi –functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial ground and farmland
Road graders are essential equipment in road construction, maintenance, and land grading projects. They are used to create a smooth, even surface by removing excess material, filling in low spots, and shaping the road to the desired gradient. With their versatility and precision, road graders play a critical role in ensuring the safety and usability of roadways for vehicles and pedestrians alike
Model | PY165C | |
Operating mass | kg | 15000 |
Max. forward speed | Km/h | 40.4 |
Max. backward speed | Km/h | 25.7 |
Front axle load | 4150 | |
Rear axle load | 10850 | |
Speed gear number | F6/R3 | |
Minimum Turning radius | mm | 7500 |
Hydraulic system pressure | Mpa | 18 |
Blade length × height | mm | 3660×610 |
Blade tilt angle | ° | ±90 |
Blade slewing angle | ° | 360 |
Front wheel tilt angle | ° | ±17 |
Front wheel track | mm | 2150 |
Rear wheel track | mm | 2255 |
Overall dimension (LxWxH) | mm | 8305×2695× 3420 |
Wheel base | mm | 5347 |
Diesel engine power | Kw | 125/2300rpm |
Diesel engine model | CUMMINS6BTA5.9 | |
Fuel tank capacity | 228 | |
Hydraulic tank capacity | L | 170 |
Tire seize | 17.5-25 | |
Multi tandem Valve | Husco | |

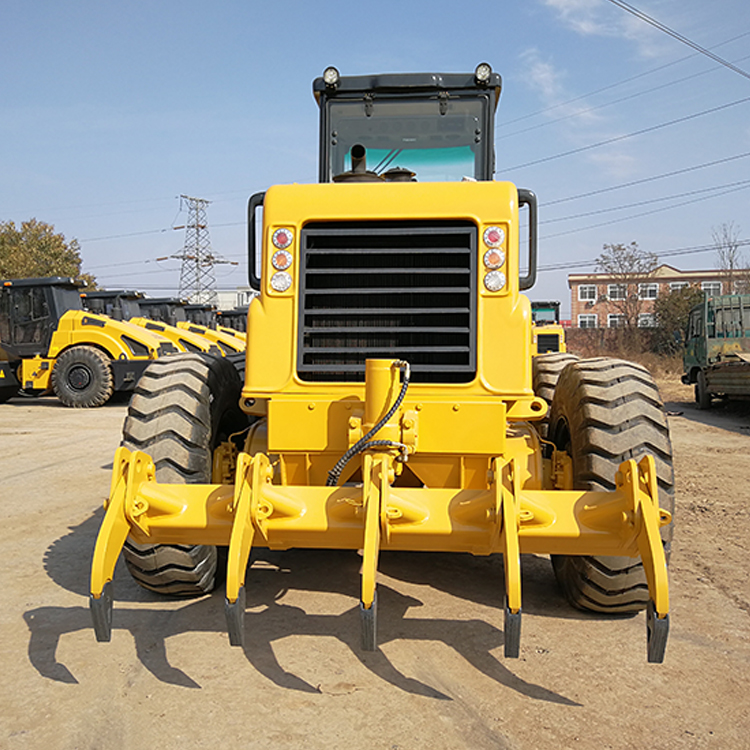

Rear Ripper | 5 teeth |
