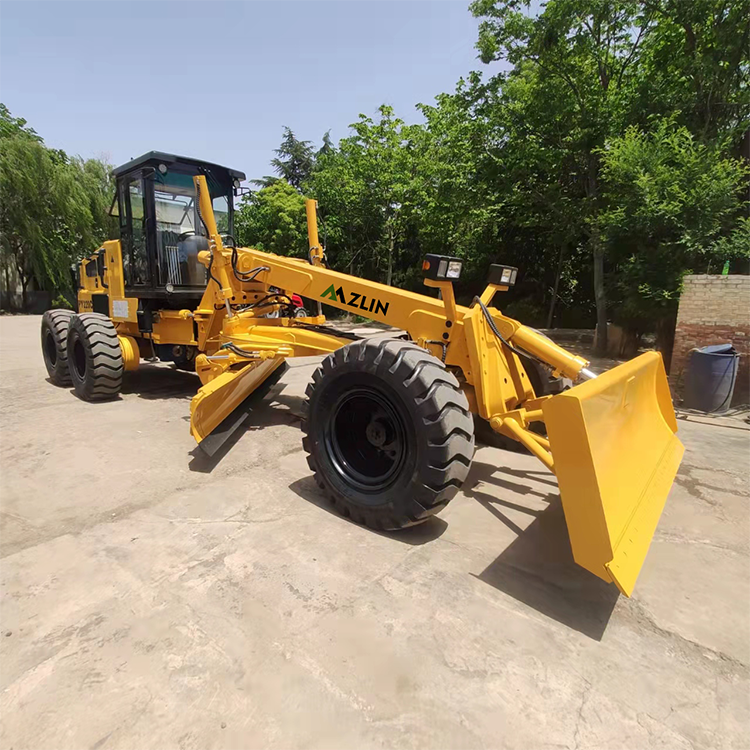

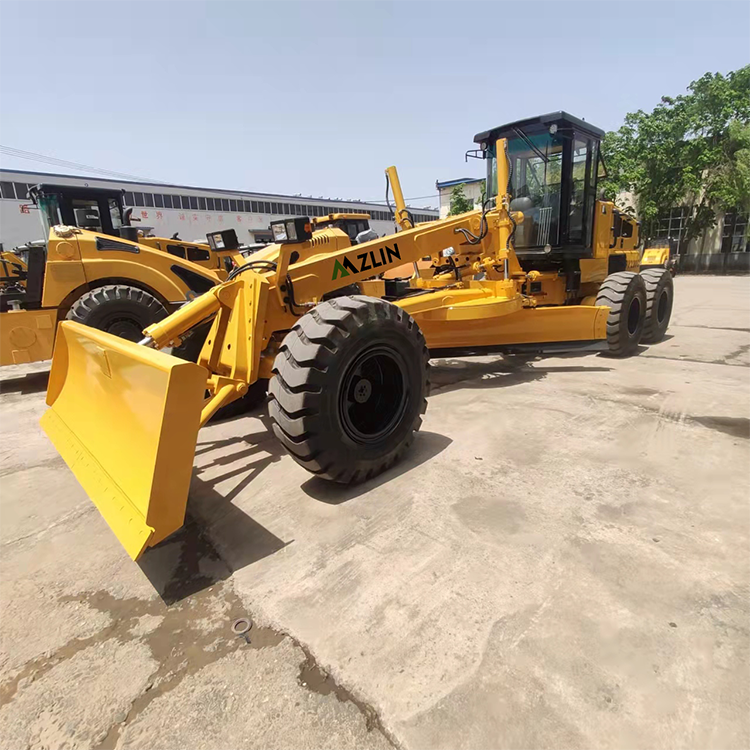

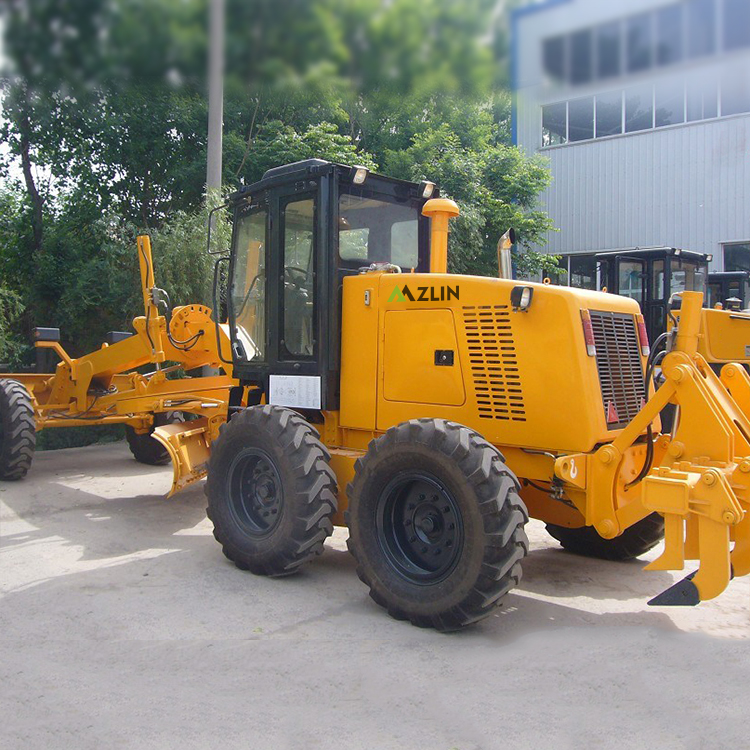

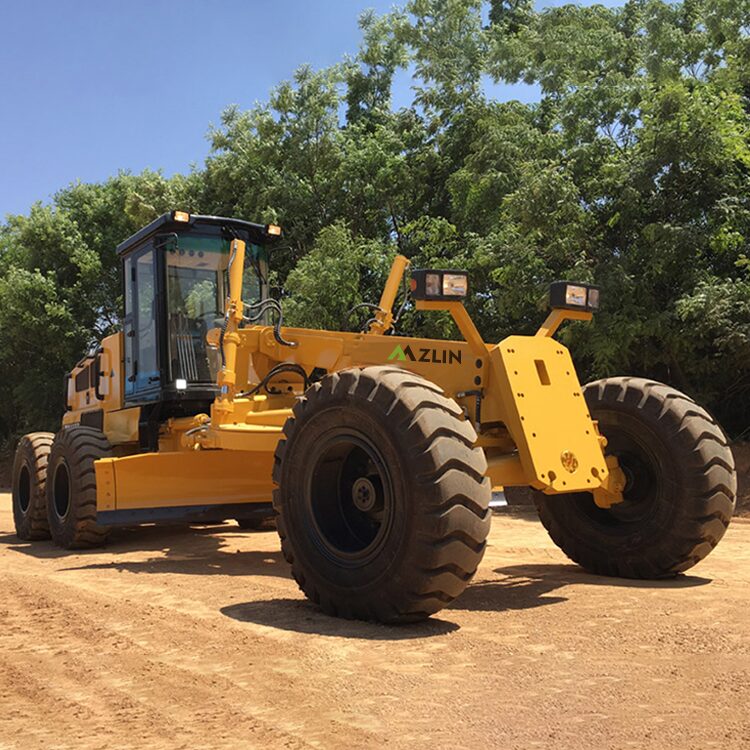

PY135C Self-propelled articulated motor grader is suitable for constructing roadbeds and pavements, constructing slopes, excavating side ditches, as well as mixing road mixtures, sweeping snow, pushing loose materials, and carrying out maintenance work on dirt and gravel roads
1.Adopting an articulated frame, coupled with front wheel steering, mall turning radius and flexible maneuverability.
2. Electrohydraulic control power shift gearbox, 6 gears forward and 3 gears backward.
3. Adjustable control console, seats, control handles, and instrument panel are arranged reasonably, making it easy to use and improving driving comfort.
4. The cab is luxurious and beautiful, with a wide view and good sealing.
5. It is optional for front bulldozing plate and rear ripper.
Road Construction: Road graders play a crucial role in the construction of new roads and highways. They are used to prepare the ground by leveling and grading the terrain to create a smooth and even surface for the roadbed. Road graders can also be used to shape embankments, cut slopes, and establish proper drainage to ensure the structural integrity of the roadway.
Road Maintenance: Road graders are essential for maintaining existing roads and highways. They are employed to repair potholes, fill in ruts and uneven surfaces, and restore the road to its proper grade. Road graders can also be used for resurfacing projects, where they remove old pavement and prepare the surface for new asphalt or gravel.
Gravel Road Maintenance: Gravel roads require regular maintenance to prevent erosion, washouts, and other surface irregularities. Road graders are used to re-grade gravel roads, redistribute loose material, and smooth out bumps and depressions. This helps to improve driving conditions and prolong the lifespan of the road surface.
Land Grading: Road graders are employed in land grading projects for various purposes, including site preparation for construction, landscaping, and agricultural activities. They can be used to level and contour the land, remove excess soil, and create slopes or embankments as needed.
Mining and Quarrying: Road graders are utilized in mining and quarrying operations to maintain haul roads and access routes for heavy equipment. They are used to grade and compact roads in challenging terrain, such as rocky or uneven surfaces, to facilitate the transportation of materials and equipment.
Overall, road graders are indispensable machines in the construction and maintenance of roads, highways, and other infrastructure projects. Their versatility, precision, and ability to create smooth and even surfaces make them essential equipment for ensuring safe and efficient transportation networks.
| MODEL | PY135C | |
| Operating mass | KG | 13800 |
| Front axle load | KG | 4000 |
| Rear axle load | KG | 9800 |
| Max. forward speed | km/h | 38.3 |
| Max. backward speed | km/h | 24.4 |
| Speed gear number | F6/R3 | |
| Min. Turning radius | mm | 7500 |
| Hydraulic system pressure | Mpa | 18 |
| Blade length x height | mm | 3660×610 |
| Front wheel track | mm | 2150 |
| Rear wheel track | mm | 2165 |
| Wheelbase | mm | 5347 |
| Engine model | QSB5.9 | |
| Engine power | kw | 97 |
| Overall dimensions | mm | 8270x2495x3390 |
· Max. theo. concrete output：40m³/h
· Max. vertical conveying distance：100M
Output Power / speed : 199Kw/2300RPM
Boom Vertical Height: 38m
Electrical Engineering Power : 90kw
Distribution Valve Type: S Valve
