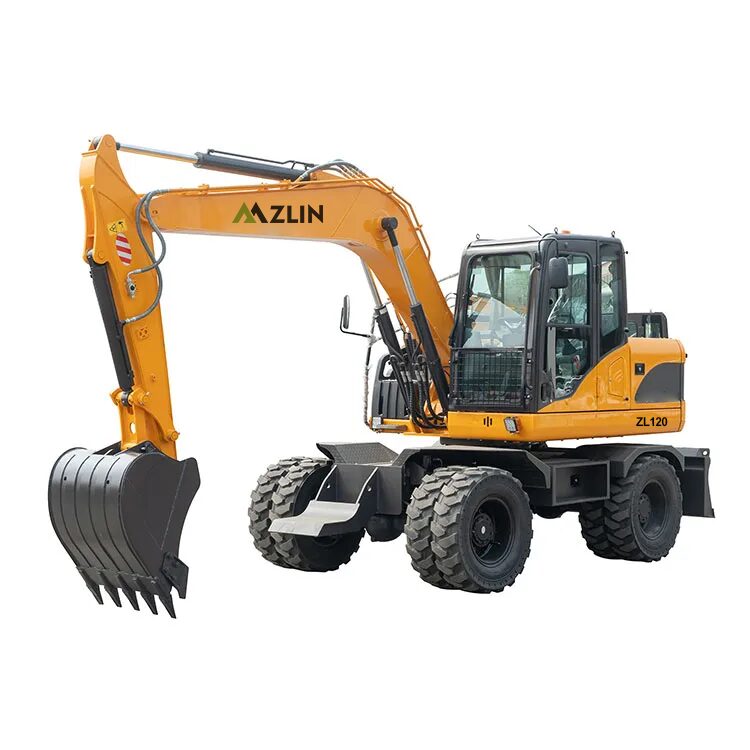

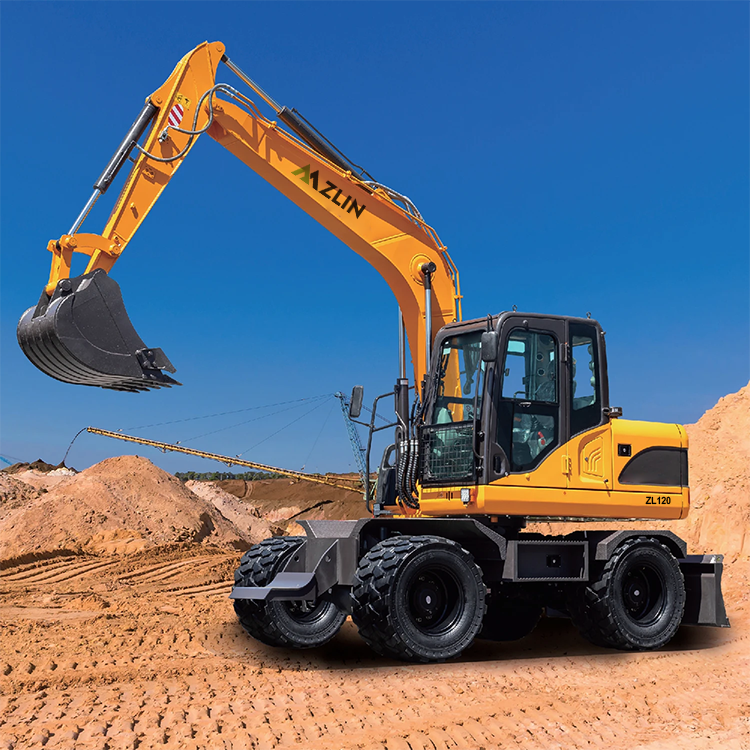

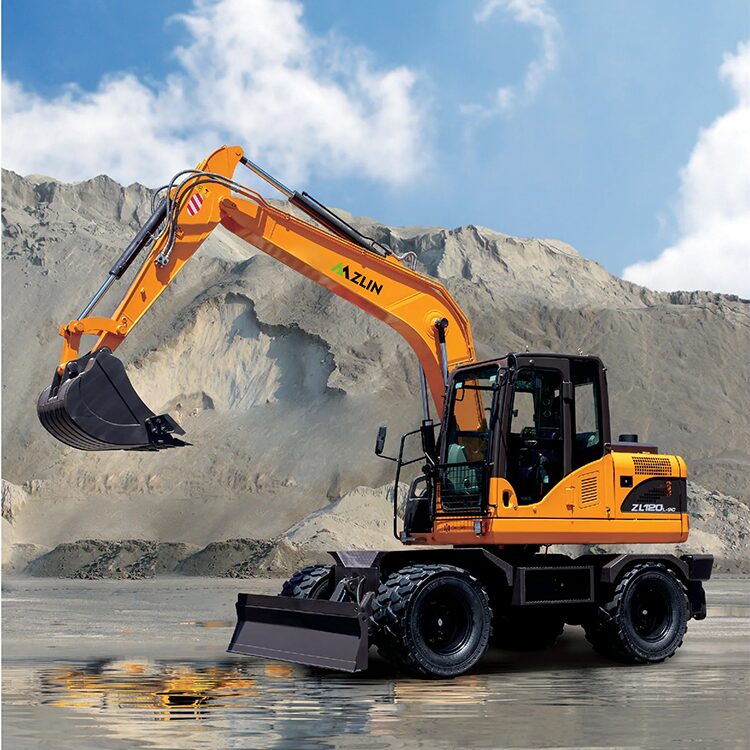

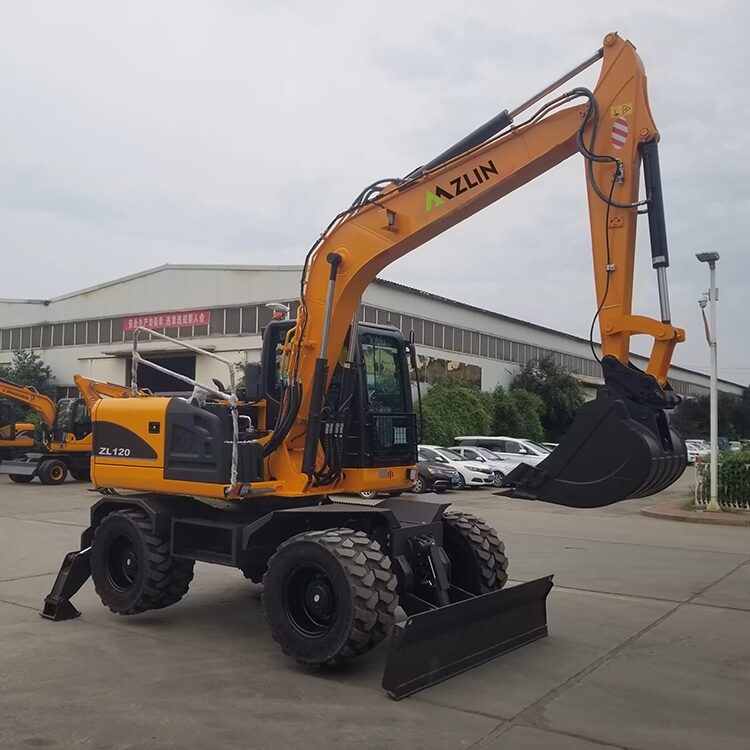

ZL120L-9C Wheel Excavator

The ZL85L Wheel Excavator is a versatile piece of construction equipment designed for various earthmoving and excavation tasks. Unlike traditional excavators with tracks, the ZL85L features wheels that provide mobility and flexibility on different terrains. This compact excavator is known for its maneuverability and ease of transportation between job sites, making it ideal for urban construction projects and road maintenance

Chat [email protected] Inquiry
FEATURES Appliction Technical Parameters

FEATURES

FEATURES

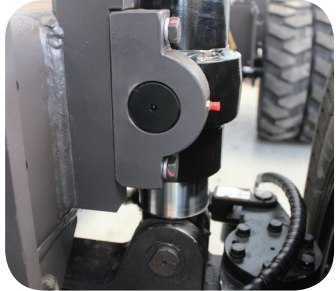

Upgrade to articulated balance cylinder, directly connected with the axle, which is more secure and reliable.

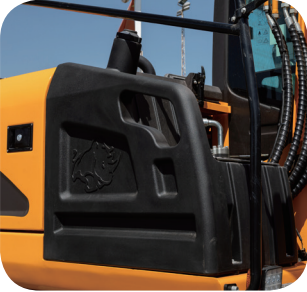

Use the same rotational plastic fuel tank as the first-line international brand to make the diesel cleaner and safer

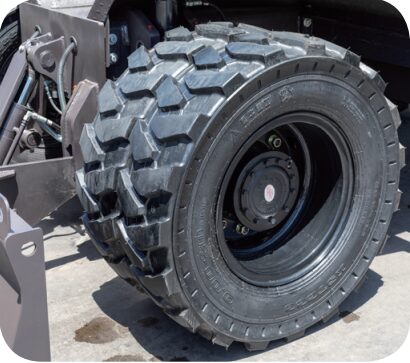

The new type of seam tires can prevent hard objects from getting stuck, effectively protect the tires, and make the tires safe, reliable and durable. The tire pattern is the same as that of international brands, and the grip is better. The tread is widened and the grounding area is enlarged, which makes the vehicle more stable.

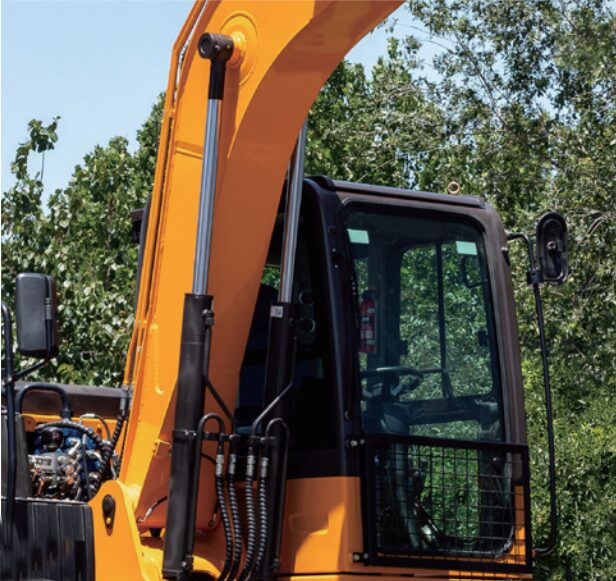

The boom is supported by two cylinders, with stronger lifting force, more stable and higher working efficiency

Appliction

Wheel Excavator can be used for a wide variety of applications — scrapyard work, road work, material handling, waste handling, utility installation, just to name a few.

Technical Parameters

Specification Machine weight 10100kg
Bucket capacity 0.4m³
Engine Model WP4.1G125E302
Displacement 4.088L
Rated power/speed 92kw/2200rpm
Max. torque 480N.m/（1600-1800）r/min
Speed Max.travel speed 32 km/h
Swing speed 11 rpm
Max. grade ability 30°
Main dimension
  1. Total length
 6730mm
  1. Total Height
 3071mm
  1. Counter Weight Turning Radius
 1941mm
  1. Hood Height
 2255mm
  1. Counter weight Ground Clearance
 1026mm
  1. Upper structure width
 2300mm
  1. Cab Height
 3072mm
  1. Total Tire Width
 2403mm
  1. Minimum Ground Clearance
 388mm
  1. Wheel Tread
 2500mm
  1. Distance between swing center to rear axle
 1025mm
  1. Front Extension
 1121mm
  1. Back Extension
 862mm
  1. The maximum reduction of the dozer blade
 67mm
  1. Height of dozer blade
 571mm
  1. Maximum lift of dozer
 543mm
  1. Overall width of blade
 2380mm
  1. Total width with outrigger back
 2402mm
  1. Total width with outrigger out
 3060mm
  1. Wheel base
 1840mm
Operating range Max. digging radius 7559mm
Max. digging radius on ground 7354mm
Max. digging depth 4673mm
Max. digging height 8292mm
Max. dumping height 6208mm
Minimum turning radius 2913mm
Maximum vertical digging depth 4320mm
Bucket digging force 85KN
Bucket arm digging force 61KN
