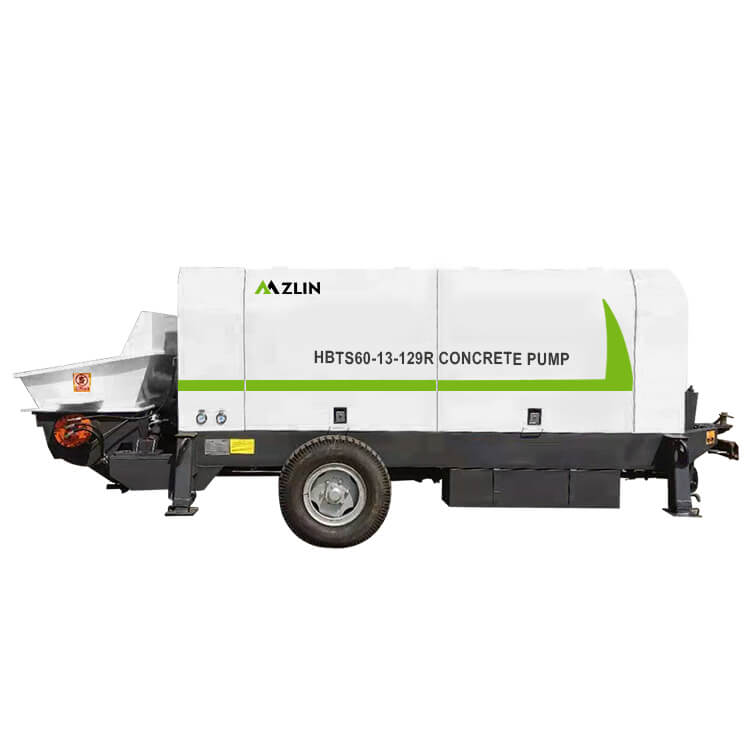

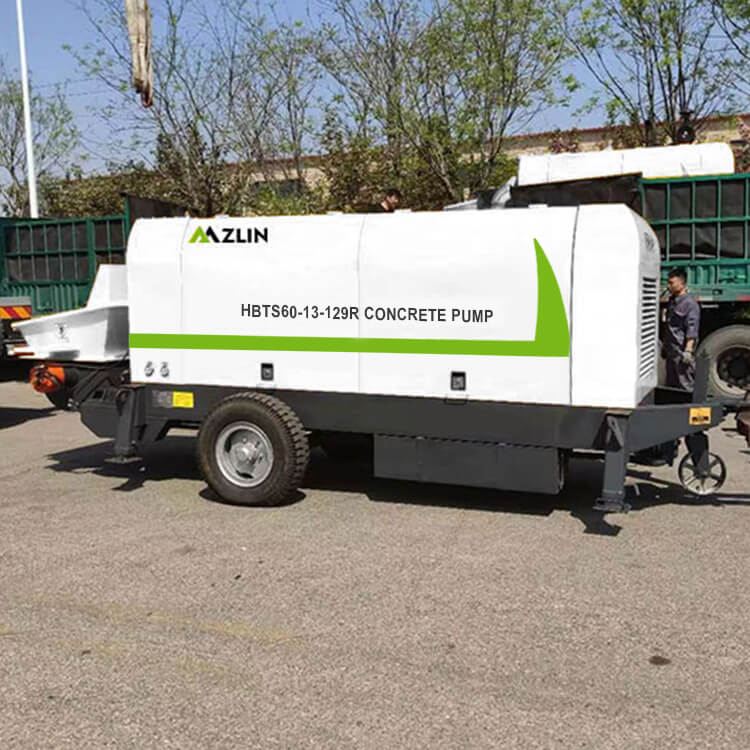

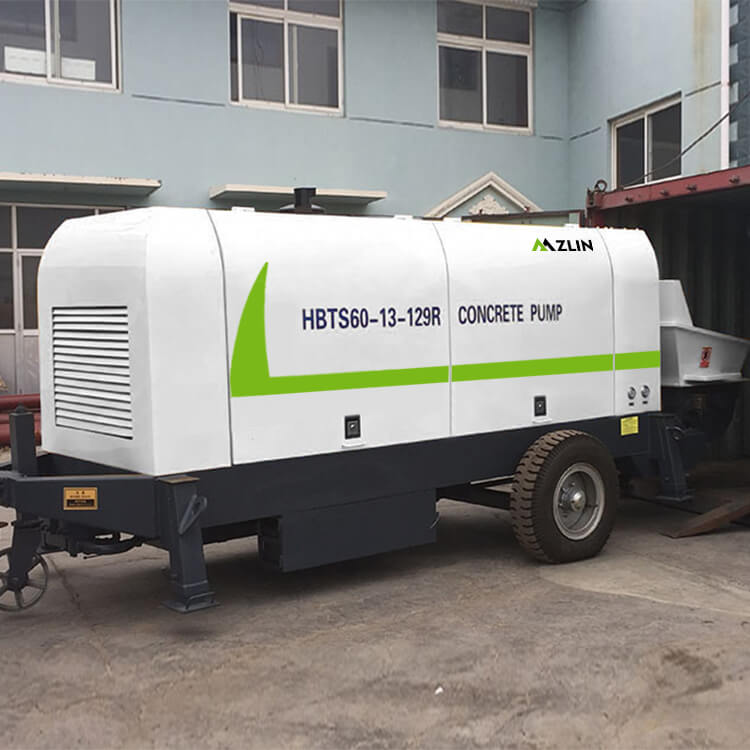

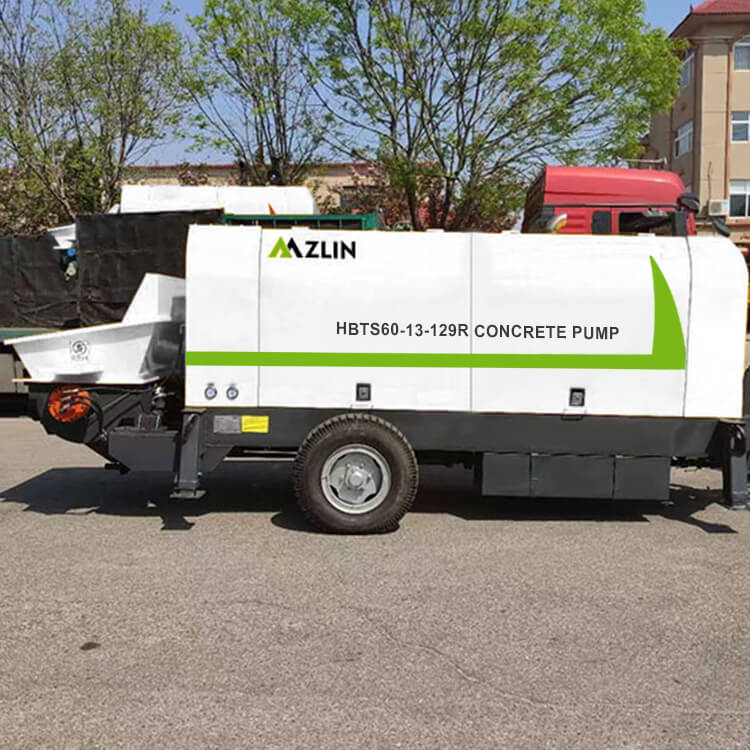

HBTS60 Concrete Trailer Pump

Product Description

Concrete trailer pump, also known as concrete pump, is composed of pump body and delivery pipe. It is a machine that uses pressure to continuously transport concrete along the pipeline. It is mainly used in housing construction, bridge and tunnel construction. It is mainly divided into gate valve concrete pump and S valve concrete pump.

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

ZLIN Concrete Trailer Pump

A variety of specifications for your selection. Different models concrete pump on trailer has different maximum theoretic delivery volume. Moreover, they also have different horizontal and vertical pumping distance. The theoretic delivery volume of our tow behind concrete pump ranges from 30m3/h to 90m3/h.

∇  Adopt international famous brands components, These high-quality parts guarantee the quality of our trailer concrete pump for sale.

  The structure of the trailer pump for sale is simple. That is easier to operate and maintain. You just need a few workers to operate it, which can save your labor costs.

∇  In addition, the trailer concrete line pumpalso has the features of high pumping efficiency, low failure rate, stable performance, not easy to plug the pipe and so on.

Trailer concrete pump for sale is mainly used in concrete construction of conveying and pouring work. You can easily move it by a trailer, which can save your transportation time. With the development of modern industry, the construction method of concrete as the main material has become one of the main structures in construction industry, which occupies a large proportion in various projects, making the development of concrete machinery lasting. So more and more clients are willing to invest in a trailer mounted concrete pump.

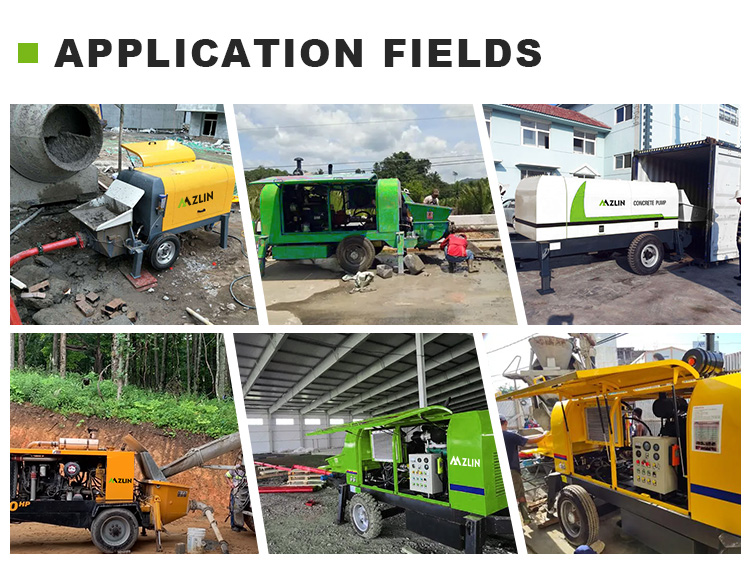

Wild Applications of Concrete Trailer Pump

The concrete pump trailer has wide applications on the road construction, tunnel construction, bridge project, port project, building construction and so on. Even if you have several projects, you don’t have to worry about the construction. You can easily move the trailer mounted concrete pump for sale from one construction site to another.

Application

1. Small and medium-sized construction projects, including township civil buildings, new rural construction, township cement pavement, etc.
2. Mines, highways, railways, tunnels and culverts and other projects.
3. Slope care, small and medium-sized reservoirs, water conservancy and hydropower projects.
4. Other small and medium-sized outdoor or field operations and other projects

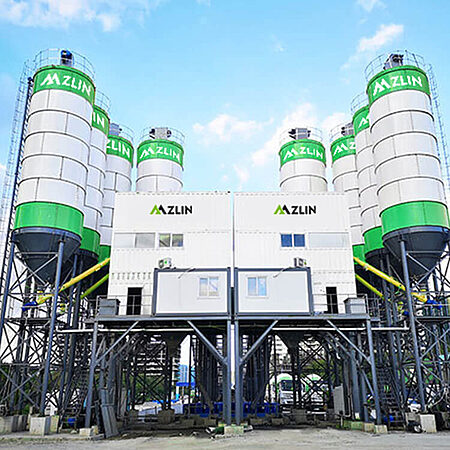

In addition to its own use, our trailer concrete line pump for sale can also be used with other equipment, such as the concrete batching plant, concrete mixer machine, concrete mixer truck and so on. We also can provide you with these products if you need.


Click to watch the video

RECOMMENDATION

TECHNICAL PARAMETER

Items Units



Parameters
HBTS60-13-90
Whole performance of machine Max. theo. concrete output (L./H.) m3/h 84/46
Max.concrete pumping pressure (H. /L.) MPa 13/6.3
Distribution valve type S Valve
Concrete cylinder diameter×stroke mm Ф200×1650
Hopper capacity×feeding height L×mm 800×1400
Outlet diameter mm Ф180
Electrical engineering power kW 90
Rotate speed r/min 1480
Hydraulic system Circuit type  Open circuit
Pumping system pressure MPa 28
Mixing system pressure MPa 8-6
Capacity of oil tank L 560
The biggest transportation is away from vertically (/Level) m  160/800
Other parameters Max. aggregate diameter mm Scree:40 50
Inside diameter of delivering pipe mm Ф125
Dimensions:length×width×height mm 5800×2000×1750
Total weight kg 5500



FIND A REPUTABLE SUPPLIER - ZLIN

There are many suppliers who manufacture concrete trailer pumps in the market. You can find trailer pump suppliers online or offline. Of course, you can also look for suppliers locally or abroad. But most importantly, you need to find a reputable supplier with many good reviews from customers.ZLIN Group has been focusing on the construction machinery industry for many years. We always stick to our vision of providing better construction machinery to more customers and creating more value for them. So far, we have exported many concrete trailer pumps to different countries such as Philippines, Indonesia, Vietnam and Pakistan.

If you are interested in our concrete trailer pump, welcome to contact us for quotation now. We promise you can get a reply within 24 hours.


What Services Can ZLIN Provide For You?

1. Provide technical consultation on construction technology, mechanical configuration, layout of large-scale equipment, etc;

2. Products can be customized according to customer needs; free construction plans are provided for customers;

3. Help customers with equipment selection;

4. Transportation agency;

5. Equipment debugging, on-site troubleshooting;

6. Accessories and wearing parts are delivered to your door;

7. Provide equipment maintenance and inspection services, free maintenance equipment during the warranty period.
