Concrete trailer pump, also known as concrete pump, is composed of pump body and delivery pipe. It is a machine that uses pressure to continuously transport concrete along the pipeline. It is mainly used in housing construction, bridge and tunnel construction. It is mainly divided into gate valve concrete pump and S valve concrete pump.
Powerful and powerful, excellent performance and high reliability, while the power arrangement is simple and easy to maintain.
The ultra-high pressure flexible pumping control technology solves the problem of strong impact caused by high strength and high performance concrete when pumping at ultra-high pressure, while ensuring safe, stable and continuous operation of the pumping system.
This pump can effectively protect the diesel engine starter motor and prolong its working life; the adaptive variable power technology can dynamically improve the pumping capacity and make the engine always work at the best load rate, ensuring that it works in the economic fuel consumption zone and reducing the comprehensive fuel consumption by 5%;
In order to meet the various needs of field construction sites and customers, ZLIN has developed a concrete transfer pump powered by a diesel engine. The pump power system adopts a diesel engine that meets emission standards. It has the advantages of reliable performance, stable operation and easy maintenance. It can operate stably in harsh environment, saves cost and can create more benefits.

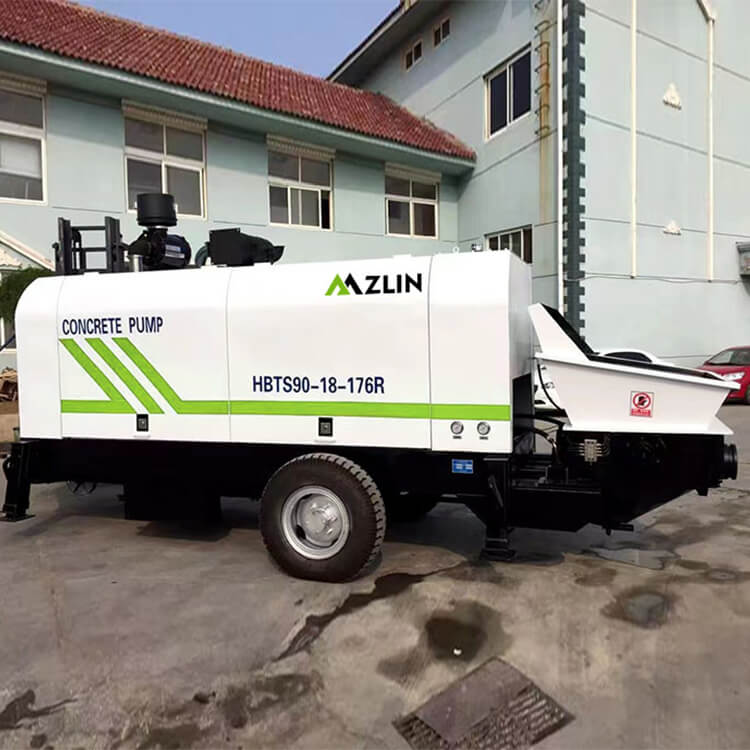

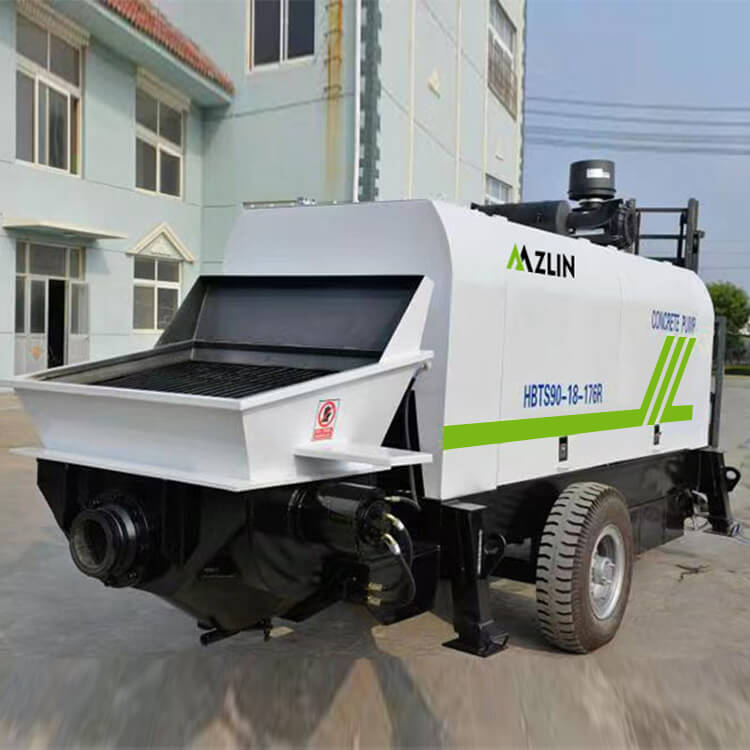

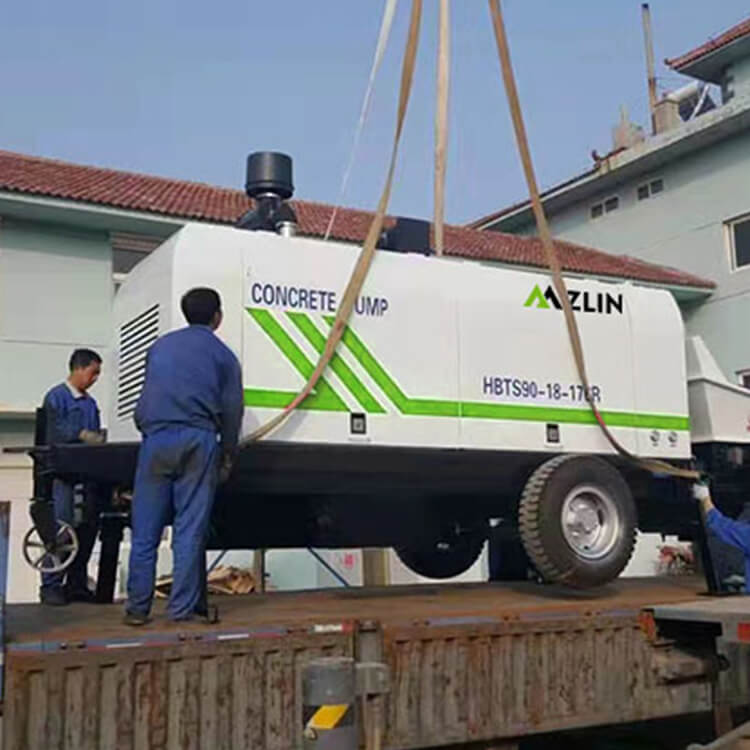

ZLIN has shipped the HBTS90 diesel trailer concrete machine to Indonesia in 2022. The customer placed an order in March 2022, Some photos were taken by our workers while loading the equipment at the factory.
This machine is an effective concrete pumping equipment with a large capacity. It is suitable for large construction projects. In addition, it can work in harsh environment with high efficiency. The remote control function can ensure safe and convenient operation. In addition, equipped with control system, users can control the work by pushing the button. Thanks to the use of wear-resistant materials, our machines have a longer service life.
If you wanna get quotation, please contact us: [email protected]. Then we will reply you in 24 hours.

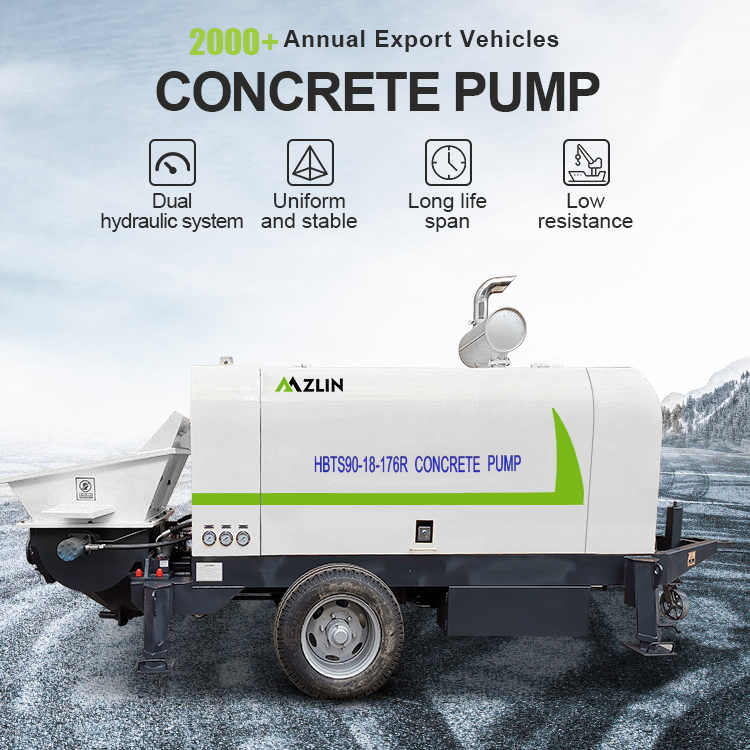

| Items | Units | Parameters | |

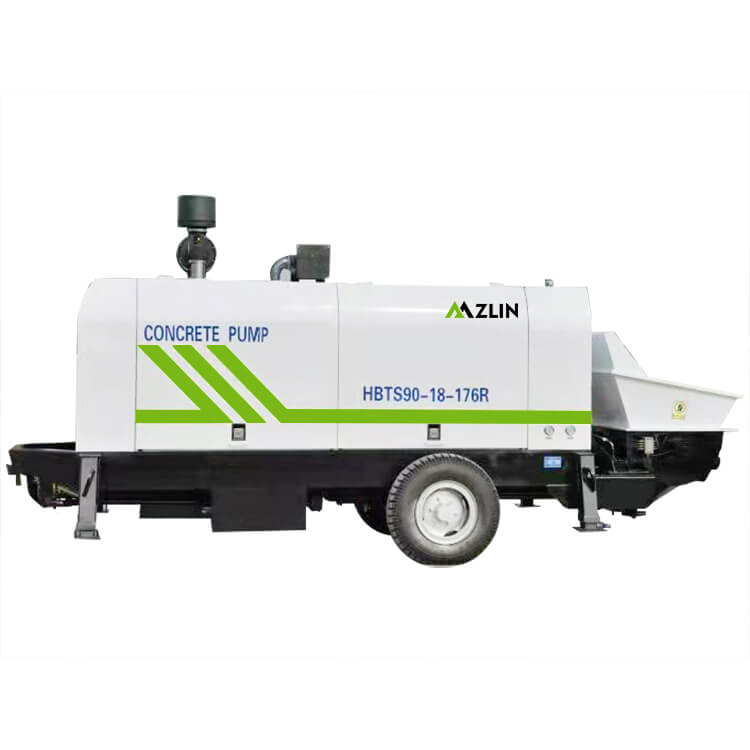

| HBTS90-18-176R | |||
| Whole performance of machine | Max. theo. concrete output (L./H.) | m3/h | 95/55 |
| Max.concrete pumping pressure (H. /L.) | MPa | 18/9.3 | |
| Distribution valve type | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Ф200×1800 | |
| Hopper capacity×feeding height | L×mm | 800×1400 | |
| Outlet diameter | mm | Ф180 | |
| Power system | Diesel engine model | Weichai DEUTZ | |
| Electrical engineering power | kW | 176 | |
| Rotate speed | r/min | 2200 | |
| Hydraulic system | Circuit type | Open circuit | |
| Pumping system pressure | MPa | 32 | |
| Mixing system pressure | MPa | 8 | |
| Capacity of oil tank | L | 580 | |
| The biggest transportation is away from vertically (/Level) | m | 360/1200 | |
| Other parameters | Max. aggregate diameter | mm | Slick scree: 50、
Scree: 40 |
| Inside diameter of delivering pipe | mm | Ф125 | |
| Dimensions：length×width×height | mm | 6000×2100×2250 | |
| Total weight | kg | 9000 | |
As a well-established manufacturer of concrete trailer pump machinery, ZLIN has designed this range of concrete trailer pumps for different projects. It is equipped with components of famous brands such as electric motors, diesel engines, hydraulic oil pumps, valves, seals and hoses. This concrete pump machine can be used to pump concrete with maximum 40mm aggregate. It is also known as S valve type concrete trailer pump.
For the sale of concrete trailer pump, ZLIN can offer you different models with capacities from 30m3/h to 90m3/h and different lengths of steel and rubber pipes. Therefore, the price of concrete trailer pump for sale varies from model to model.
We would like to understand your specific requirements and recommend the right concrete pump machine to you. Then give you a best price for concrete pump, welcome to contact us and we will reply you within 24 hours.
Before purchase, ZLIN business manager will provide you with technical consultation about concrete trailer pump, including information on payment terms, concrete trailer pump quotation, delivery time, etc.
Recommend the most suitable model of trailer pump according to your project needs and provide you with the most economical choice.
We provide you with factory pictures, factory videos and technical information of the trailer pump to help you understand the working principle of the trailer pump.
We are responsible for the transportation of the products and deliver them to the designated place safely and quickly.
We will provide technical training and operation guidance and free installation service for our customers.
If you have any problem in the process of using, we will provide you with 24-hour online consultation service and send engineers for on-site technical guidance.
For customers who purchase ZLIN equipment, subsequent spare parts will be provided at the original price, and wearing parts will be guaranteed for one year. For specific after-sales service, please consult your sales manager.
Rated Power: 78/76kw
Duplex Pump: C50/32
Theoretical Productivity : 60m³/h
Mixer Power (kW): 2×18.5
Productivity: 15M³/H
Machinery Test Report: 170m3/h
