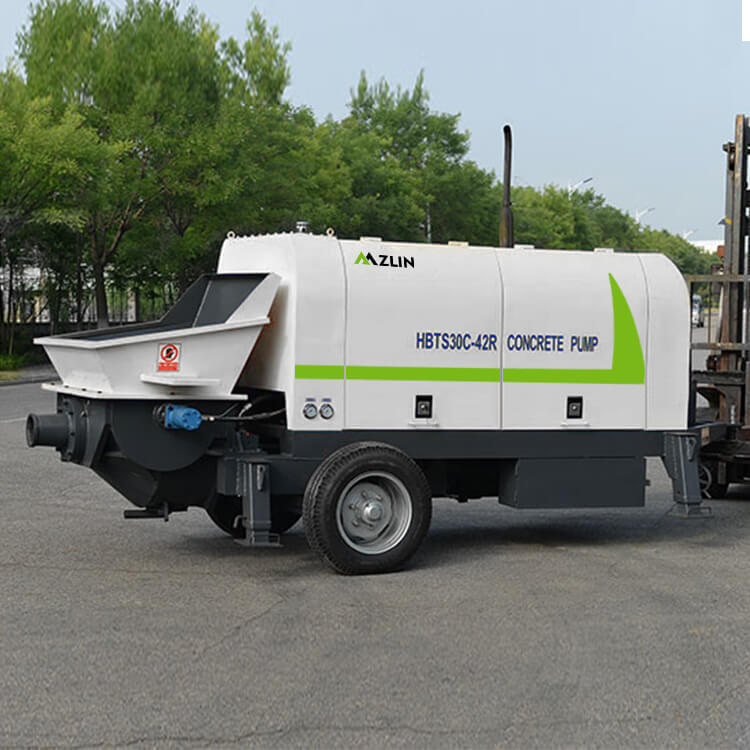

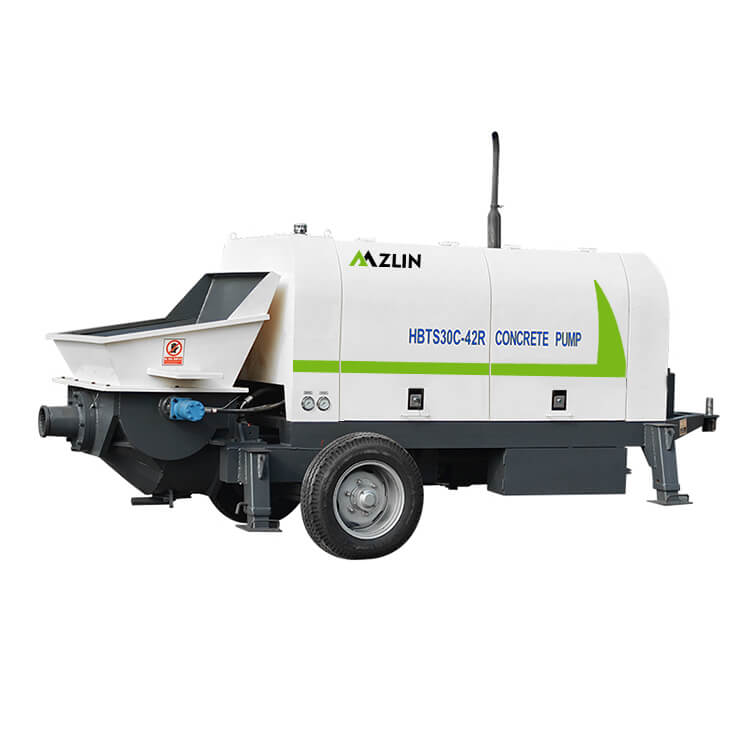

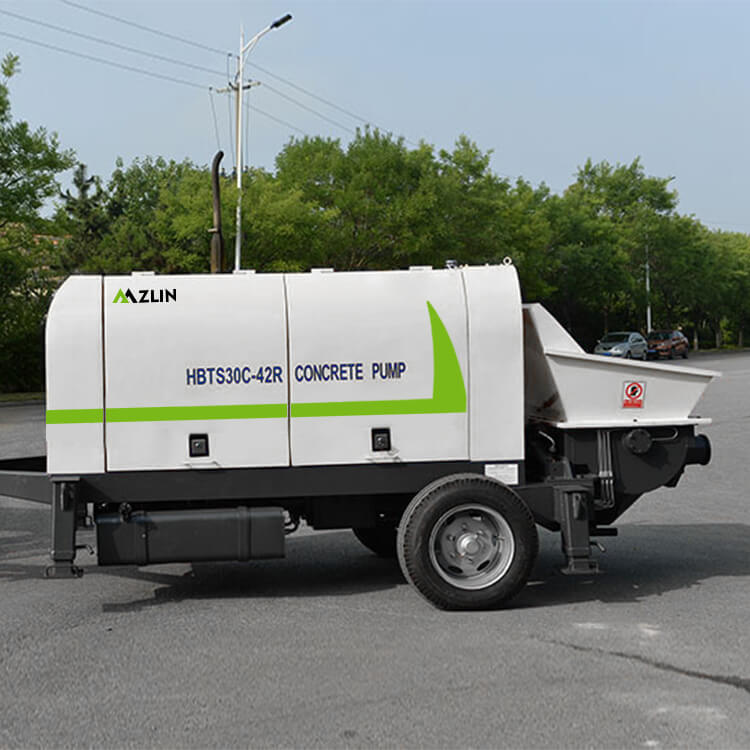

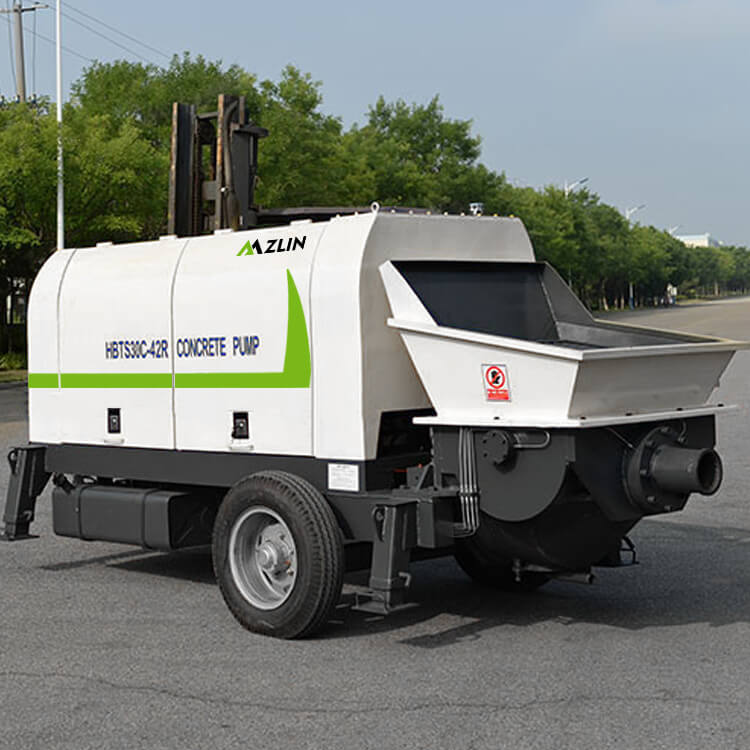

HBTS30 Concrete Trailer Pump

Product Description

Concrete trailer pump, also known as concrete pump, is composed of pump body and delivery pipe. It is a machine that uses pressure to continuously transport concrete along the pipeline. It is mainly used in housing construction, bridge and tunnel construction. It is mainly divided into gate valve concrete pump and S valve concrete pump.

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

ZLIN Concrete Trailer Pump

Power supply system:
For diesel type, power system adopts YUCHAI, Weichai-Deutz or Cummins diesel engine; for electrical type, it adopts well-known domestic and foreign brands motors such as WANNAN, MENGNIU, Siemens Beide motor etc;

Radiator:
adopts the air-cooled plate-fin radiator to ensure that the system of diesel concrete pump could operate in a maximum temperature allowed.

Hydraulic oil pump:
The main oil pump is Zinda 71, Distribution valve type is S Valve

Lubrication System:
Centralized lubrication system adopts progressive distributor which supplies every lubrication point with oil in turn, and the lubrication time can be set to timing.
So, the oil filling is accurate, and oil quantity can be saved;

In order to meet the various needs of field construction sites and customers, ZLIN has developed a concrete transfer pump powered by a diesel engine. The pump power system adopts a diesel engine that meets emission standards. It has the advantages of reliable performance, stable operation and easy maintenance. It can operate stably in harsh environment, saves cost and can create more benefits.

Cases Of Our Self Loading Concrete Mixer

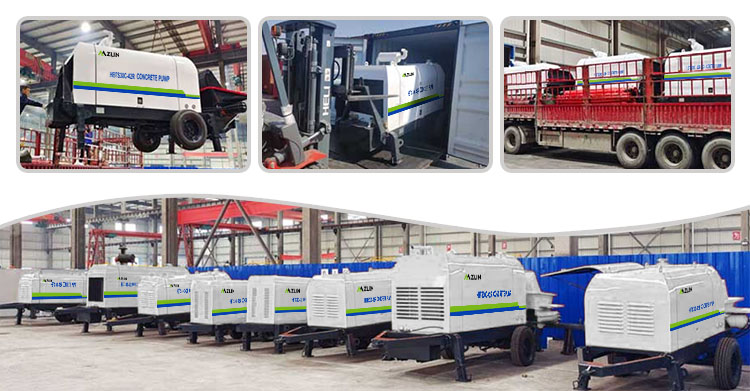

In April 2021, a ZLIN diesel engine concrete pump was exported to the Philippines. This new customer chose to purchase a small capacity concrete pump for his small building construction project. After production at the ZLIN factory, it was carefully tested and inspected. You can view some pictures below.

The preparation of ZLIN before exporting the trailer pump is as follows.

1. Before exporting each concrete pump to our customers, it is necessary for us to conduct rigorous tests on the manufactured machine to ensure its quality and performance.

2. Generally, engineers will check the performance of core components, especially the electric control system.

3. During the test, engineers need to confirm whether the pumping function of the machine is excellent or not.


Click to watch the video

RECOMMENDATION

TECHNICAL PARAMETER

Items Units Parameters
HBTS30-6-42R
Whole performance of machine Max. theo. concrete output m3/h 30
Max.concrete pumping pressure MPa 6
Main oil pump Tsunda 71
Distribution valve type S Valve
Concrete cylinder diameter×stroke mm Ф200×1000
Hopper capacity×feeding height L×mm 800×900
Outlet diameter mm Ф180
Electrical engineering power kW 42
Rotate speed r/min 1800
Hydraulic system Circuit type Open circuit
Pumping system pressure MPa 26
Distribution system pressure MPa 6
Capacity of oil tank L 220
The biggest transportation is away from vertically (/Level) m  60/100
Other parameters Max. aggregate diameter mm 40-50
Inside diameter of delivering pipe mm Ф125
Dimensions:length×width×height mm 4800×1750×2200
Total weight kg 3500

FIND A REPUTABLE SUPPLIER - ZLIN

ZLIN concrete trailer pump for sale has been popularized in many regions around the world and exported to more than 40 countries, bringing benefits to users. So, what is the price of concrete trailer pump?

It should be noted that the price of concrete trailer pumps in the market currently ranges from tens of thousands to hundreds of thousands per unit. Compared with other counterparts, ZLIN concrete pump for sale is cheap and of excellent quality, which is worthy of consideration by the majority of builders.

It is worth noting that the specific configuration and price of each trailer pump needs to be determined according to your needs. Our engineers will design the trailer pump configuration for you according to your specific working conditions and pumping needs, and only provide you with the most cost-effective cement trailer pump. If you want to learn more about it and get a specific quote, you can contact us through ZLIN’s official website and our service staff will contact you as soon as possible.


What Services Can ZLIN Provide For You? – After-Sales Service

1. One year warranty

2. Go to your site and help you install and debug;

3. Free training for your operator;

4. Any problem, we will be here to serve you, or go to your city, check and maintain;

5. Spare parts are in stock, any needs, please leave your message on my website, we will arrange shipment within 48 hours;

6. Introduce other users to buy our concrete trailer pump, we will give you some commission.
