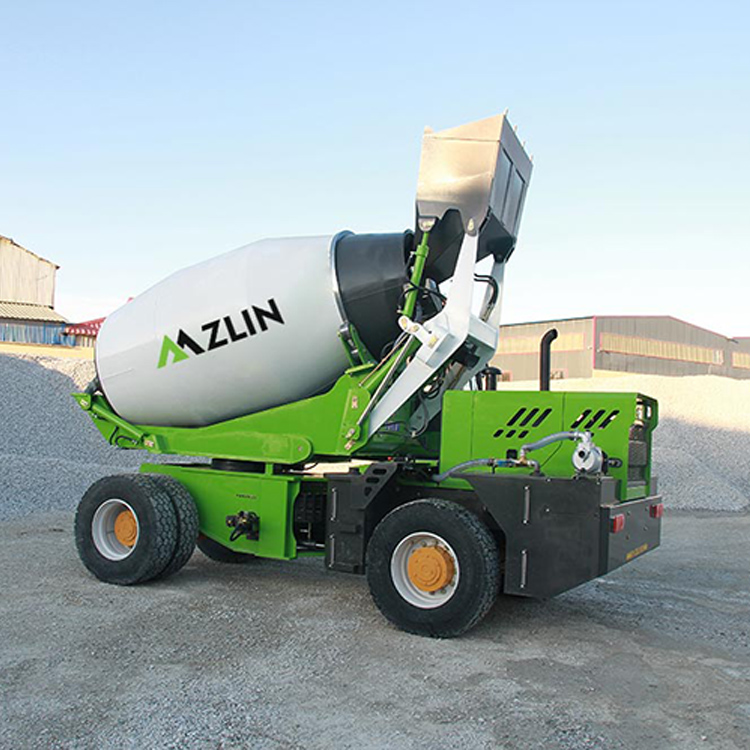

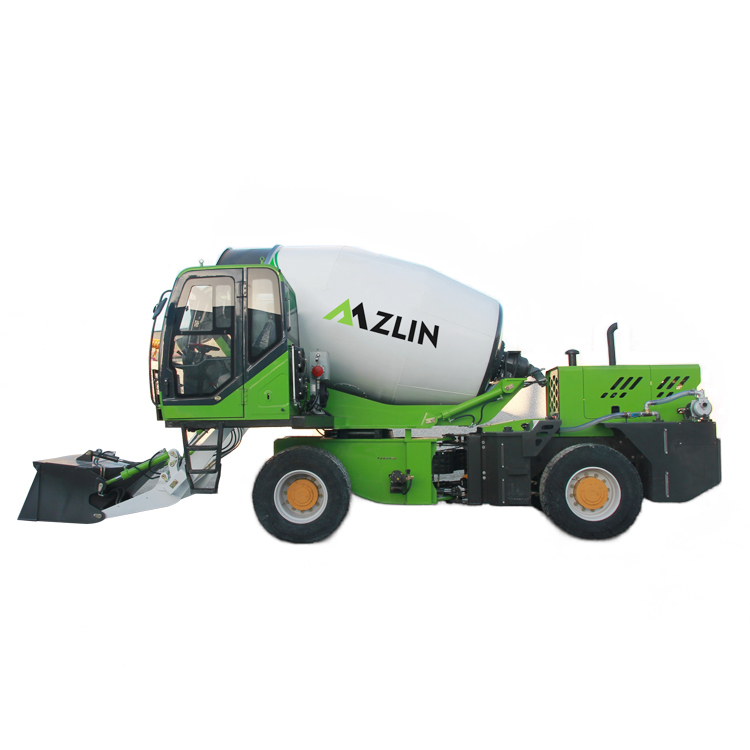

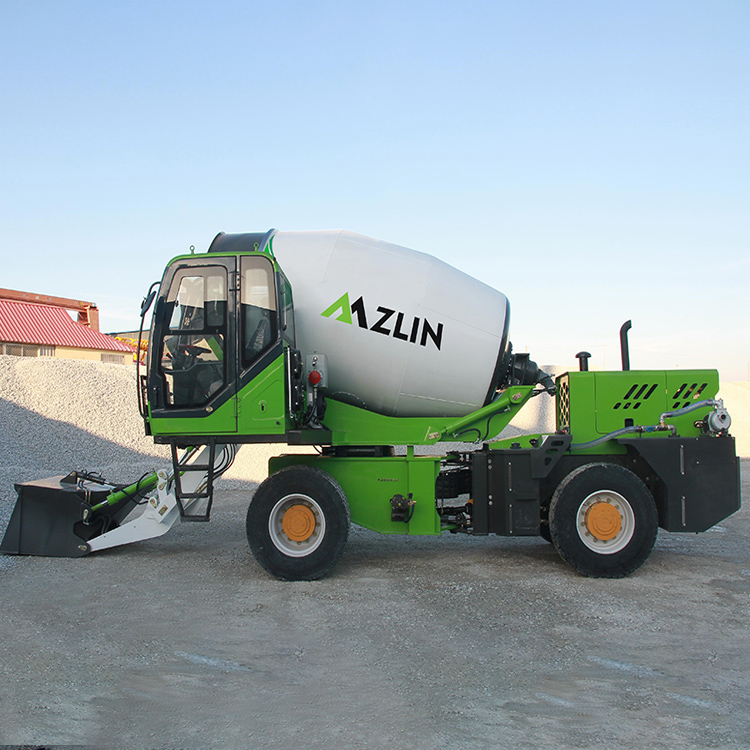

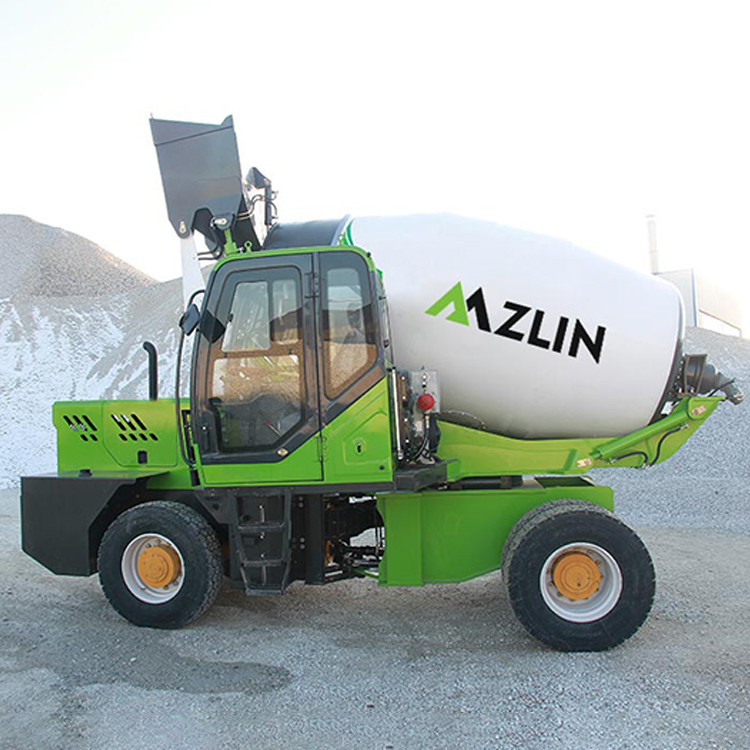

6.5cbm self-loading Concrete Mixer

The 6.5cbm self-loading concrete mixer is a robust and efficient construction equipment designed to revolutionize on-site concrete production. With a sizable capacity, this self-loading mixer offers exceptional versatility and convenience for various construction applications.

Chat [email protected] Inquiry

Feature

1. Efficient and energy-saving: The concrete mixing method of this product can better achieve the mixing of raw materials, greatly improve the mixing efficiency, and thus achieve energy-saving effects while ensuring mixing quality.

2. High degree of automation: A control system is designed inside the self-feeding mixer truck, which can automatically adjust the concrete mix proportion according to the needs of the construction process, thereby achieving better mixing effect. At the same time, this type of mixer truck has the advantages of automatic feeding, automatic metering, and automatic discharge, greatly improving the automation level of the construction process.

3. Simple and flexible operation: Self-loading mixer truck adopts a design concept of clear process, simple and easy operation, so operators can quickly get started and achieve fast and efficient construction.

Appliction

1. Large-Scale Construction Projects:

Ideal for major construction projects such as high-rise buildings, large residential complexes, and infrastructure developments that require a substantial volume of concrete.

2. Road and Highway Construction:

Well-suited for road construction projects, including bridges, tunnels, overpasses, and pavements, where a continuous and efficient supply of concrete is essential for timely completion.

3. Commercial and Industrial Construction:

Suitable for use in commercial and industrial construction sites like shopping malls, warehouses, factories, and manufacturing plants where a reliable on-site concrete mixing solution is required.

4. Urban Development:

Effective in urban development projects such as city renovations, urban infrastructure upgrades, and public infrastructure construction where space constraints or limited access make traditional concrete delivery challenging.

5. Infrastructure Projects:

Valuable for infrastructure developments like dams, ports, airports, water treatment plants, and power plants that involve significant concrete work and require a reliable and efficient concrete mixing solution.

6. Remote Construction Sites:

Beneficial for construction projects in remote or off-grid locations where access to ready-mix concrete plants is limited, providing an independent and self-sufficient concrete production solution.

Technical Parameters









Vehicle Parameters

Model 6m³ (290°)
  Dimension 8450*3050*4830mm
  Wheelbase 2850mm
  Curb weight 12520kg
  Drive form Torque converter
  Max. speed 40km/h
  Max. Grade ability 45°
  Min. turning radius 4800mm
  Min. ground clearance 350mm
Engine Model DEUTZ 6105 pressurize
  Rated power 92kw
Gear box Model ZL-428 Power shift gear box
  Gear position 4 forward 4 backward
General parameters Equipment model JBC-65
Hydraulic system parameters Reducer speed ratio KY07-5-J
  Pump Interpump 90Plunger Pump
  Motor Interpump 90 Plunger motor
Water supply parameters Water tank capacity 1465L
  Water supply type Time relay
Maintenance refueling amount Fuel oil tank 342L
  Hydraulic system total capacity 254L
  Engine oil 16L




Mixing and unloading



The double cone drum has a double spiral rod and a convex bottom
Drum geometric capacity 9000L
Drum rotation speed 16.5r/min
Concrete production 6.5m³/tank
