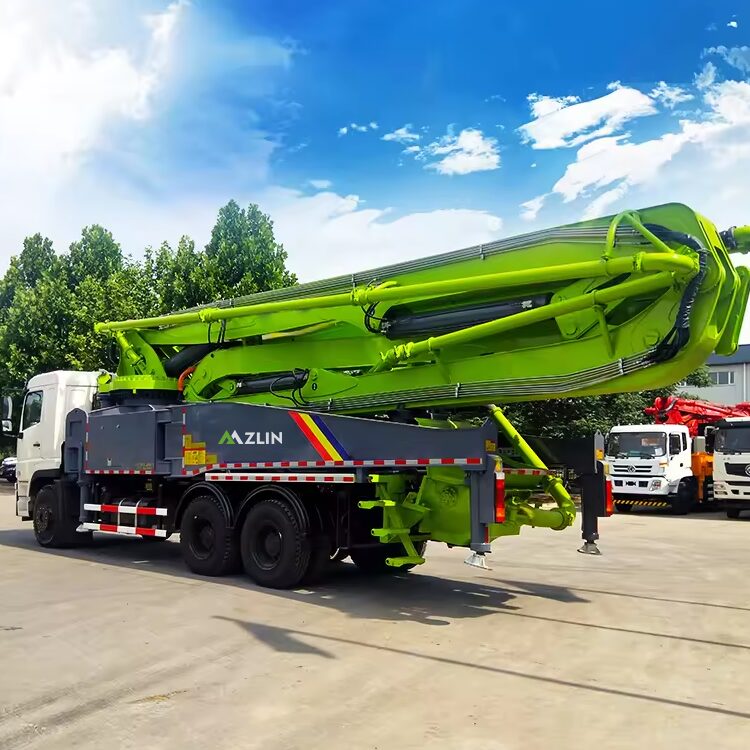

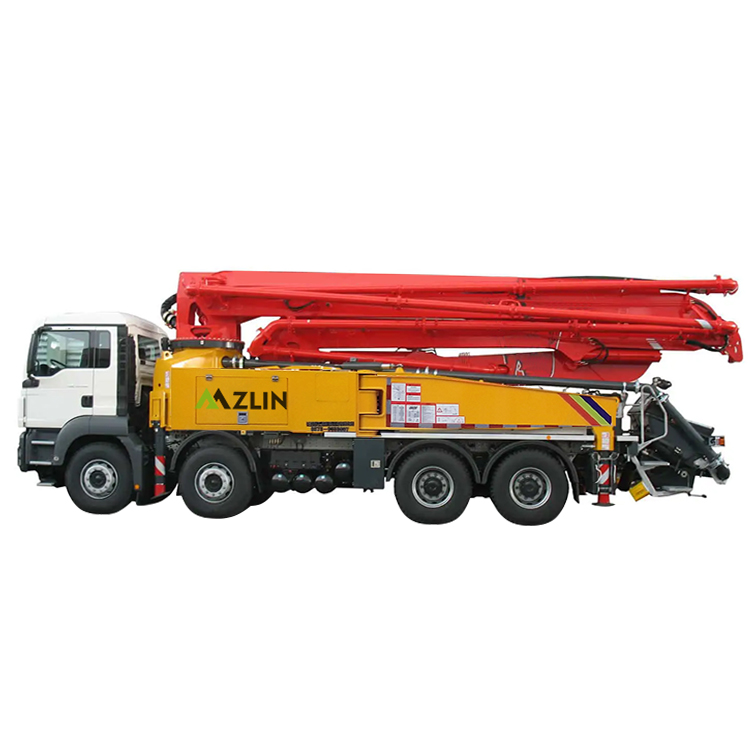

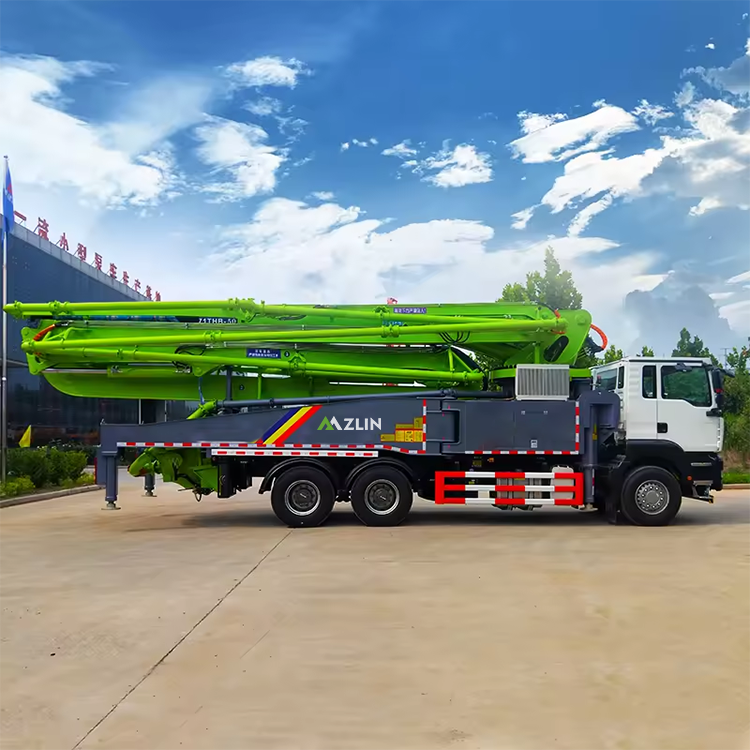

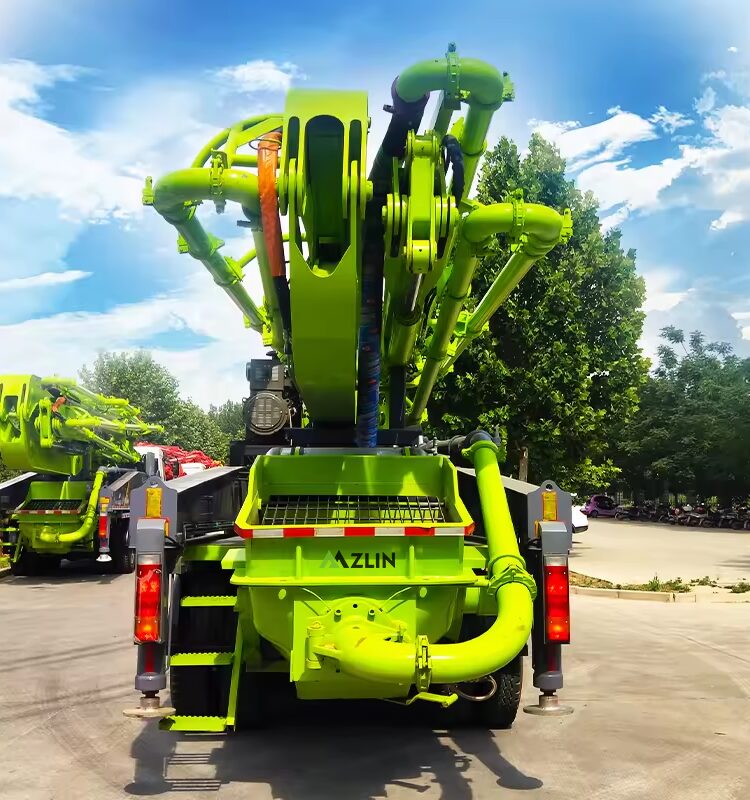

ZLBP-50-6RZ Boom Pump

These trucks are commonly used in construction, infrastructure development, and industrial projects where heavy lifting and precise positioning are required. With their powerful hydraulic systems and stable base, 50m boom trucks can efficiently lift and place heavy materials, equipment, and structures with precision and safety.

Chat [email protected] Inquiry

FEATURES

1. High configuration: using international high-end brand core components, long-term strategic partners with Stiebel, Rexroth, HAWE, HBC, Walvoil, NEM, and Eaton;

2. Stable performance and low failure rate;

3. High construction efficiency and wide construction scope: equipped with high and low pressure automatic switching function, pumping has adaptive function, energy-saving and efficient features;

4. Strong human-machine interaction, intelligent control, and easy operation

Appliction

The 50m boom pump truck is extensively used in construction projects that require concrete placement at height or distance. Its long boom arm, extending up to 50 meters, allows it to reach high-rise buildings, bridges, tunnels, and other elevated structures with ease. Here are some specific scenarios where a 50m boom pump truck proves beneficial:

High-rise construction: The tall boom enables the pump truck to deliver concrete to upper floors of skyscrapers and tall buildings, facilitating efficient concrete pouring without the need for additional equipment like cranes.

Bridge construction: When building bridges or overpasses, the 50m boom pump truck can reach over barriers and obstructions to deliver concrete to precise locations, ensuring smooth and uniform construction.

Tunneling projects: In tunnel construction, where access may be limited, the long reach of the boom pump truck allows concrete to be placed accurately inside tunnels and shafts, reducing manual labor and improving productivity.

Infrastructure development: For infrastructure projects such as highways, railways, and dams, the 50m boom pump truck can efficiently place concrete in hard-to-reach areas, including slopes, embankments, and curved surfaces.

Technical Parameters

Vehicle parameters Overall dimension 12600*2550*3950mm
Weight 35000kg
Chassis brand HOWO
Drive type 6×4
Engine model WP10.340E22
Output power 294kw/1900rpm
Emission standard Euro II
Tyre 12.00R20
Wheelbase 4650+1400mm
Boom & Outrigger parameters Boom vertical height 50m
Boom horizontal length 46m
Boom vertical depth 36.5m
Boom folding form 6RZ
First boom Length 10000mm
Corner 89.5°
Second boom Length 8250mm
Corner 180°
Third boom Length 8050mm
Corner 180°
Fourth boom Length 9450mm
Corner 243°
Fifth boom Length 5750mm
Corner 220°
Sixth boom Length 4300mm
Corner 110°
End conveyor hose Length 3m
Turntable rotation angle ±360°
Front outrigger deployment width 9500mm
Rear outrigger deployment width 9800mm
Longitudinal distance between front and rear outrigger 10400mm
Outrigger opening method Front outrigger X-shaped
Rear outrigger Swinging
Pumping system parameters Theoretical concrete displacement Low pressure 163m³/h
High pressure 97m³/h
Theoretical pumping pressure Low pressure 10MPa
High pressure 14MPa
Theoretical pumping frequency Low pressure 32
High pressure 19
Distribution valve form S valve
Inner diameter/stroke of conveying cylinder 260/2200mm
Main oil pump displacement 260ml/r
Bucket capacity 0.6m³
Feeding height 1450mm
Inner diameter of conveying pipe 125mm
Max. aggregate size 40mm
Concrete slump 160-220mm
System oil pressure 31.5MPa
Hydraulic oil capacity 400L
Hydraulic system type Open
High and low voltage switching Automatic switching
Hydraulic oil cooling method Forced air cooling
Cleaning method for concrete pipes Water wash
Lubrication method Centralization lubrication
Spare parts brand Transfer box Zhuzhou Gear
Main oil pump REXRTOH
Boom pump PUSH
Constant pressure pump PUSH
Gear pump Wany
Boom multi way valve Km Hydraulic
Boom balance valve REXRTOH
Valve group EATON
