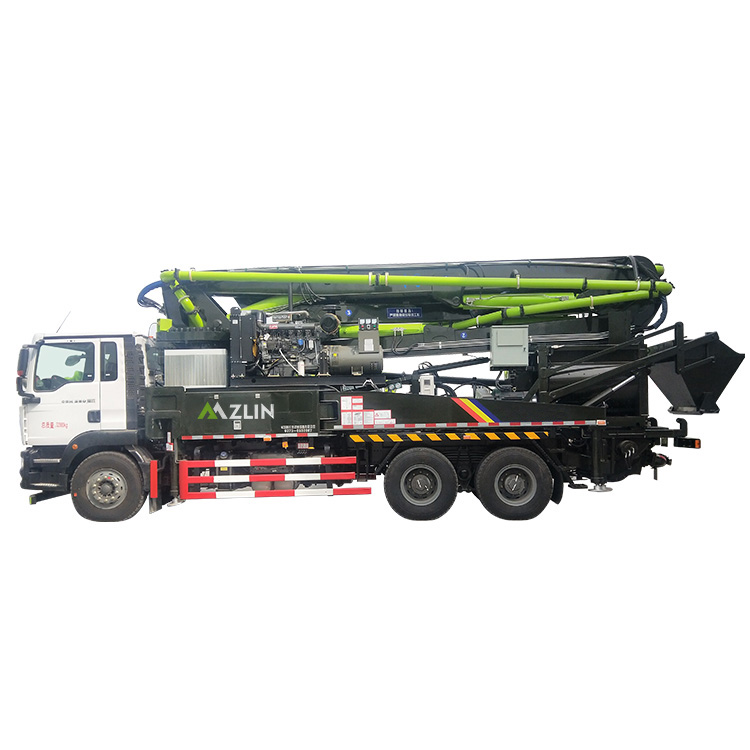

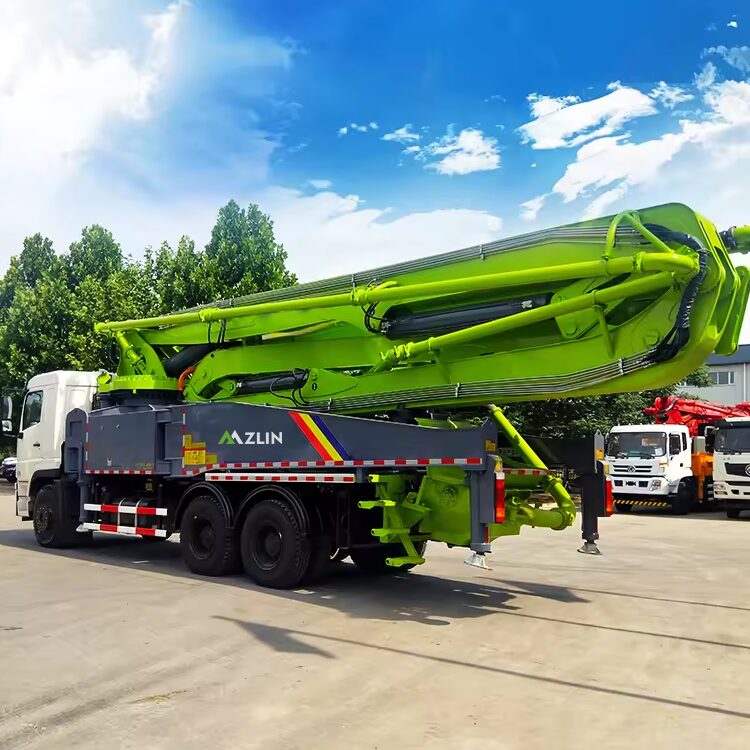

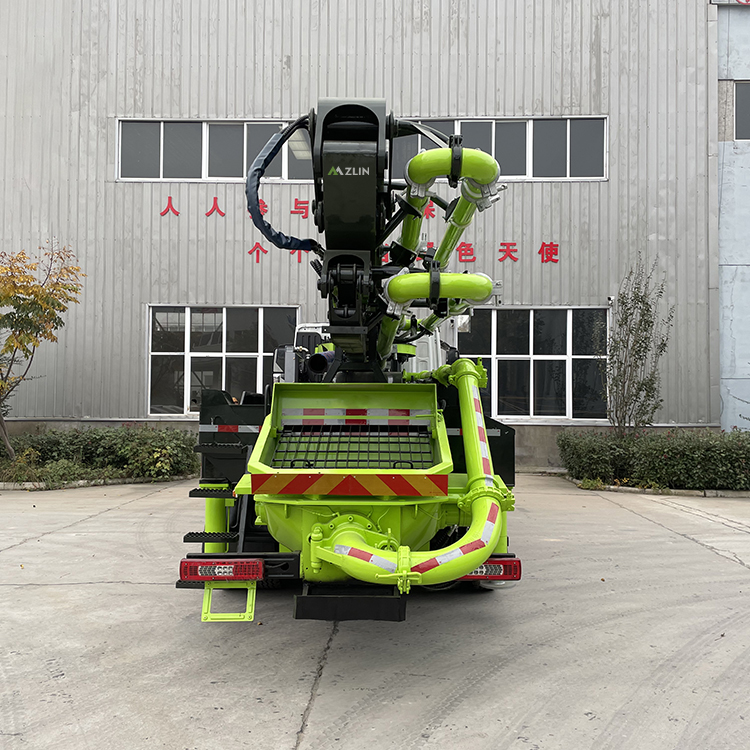

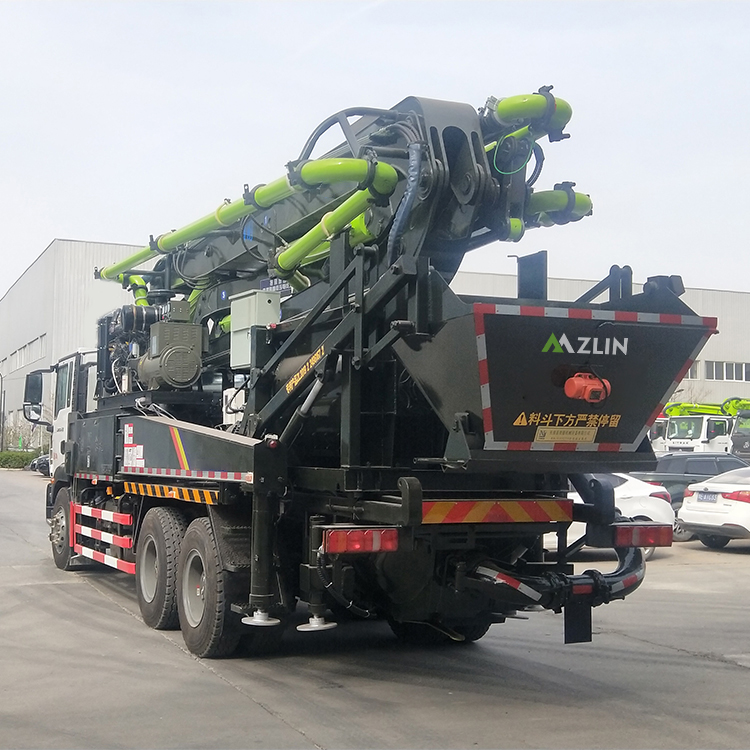

Concrete Boom Pump

FEATURES

1. High configuration: using international high-end brand core components, long-term strategic partners with Stiebel, Rexroth, HAWE, HBC, Walvoil, NEM, and Eaton;

2. Stable performance and low failure rate;

3. Equipped with an arm frame for fabric, the auxiliary time is short, the fabric is convenient and fast, and the pumping speed is fast, with high work efficiency;

4. High construction efficiency and wide construction scope: equipped with high and low pressure automatic switching function, pumping has adaptive function, energy-saving and efficient features;

5. Strong human-machine interaction, intelligent control, and easy operation

Appliction

Concrete boom pumps are essential equipment in the construction industry, offering versatile solutions for various applications:

High-rise Construction: Ideal for pouring concrete at elevated levels, such as skyscrapers or multi-story buildings, where traditional methods are impractical.

Large-scale Infrastructure Projects: From bridges to dams, boom pumps efficiently deliver concrete to inaccessible or hard-to-reach areas, ensuring precise placement and uniformity.

Remote Construction Sites: In remote or rugged terrain, where access is limited, boom pumps can navigate challenging environments to deliver concrete with ease.

Residential Construction: Facilitating the construction of residential properties, including foundations, driveways, and swimming pools, ensuring fast and efficient concrete placement.

Urban Renovation: Perfect for urban environments with restricted access, boom pumps offer a compact footprint and flexible reach, making them ideal for renovation projects in densely populated areas.

Industrial Facilities: From warehouses to manufacturing plants, boom pumps provide a cost-effective solution for pouring concrete floors and structures with speed and accuracy.

Precast Concrete Applications: Supporting the production of precast concrete elements such as beams, columns, and panels, boom pumps ensure precise filling of molds for consistent quality.

Emergency Repairs: During infrastructure emergencies like road collapses or pipeline bursts, boom pumps enable rapid concrete placement to minimize downtime and restore functionality.

Landscaping and Hardscaping: Utilized in landscaping projects for decorative concrete features, retaining walls, and outdoor amenities, offering precise control and efficient placement.

Event and Venue Construction: From stadiums to concert venues, boom pumps expedite the construction of temporary or permanent structures, ensuring timely completion for events.

Technical Parameters

Whole Truck	Model	ZLBP-30-5RZ	ZLBP-37-5RZ	ZLBP-47-5RZ
	Chassis brand	HOWO	HOWO	HOWO
	Drive type	4×2	4×2	6×4
	Engine model	WP10.300E22\240	WP10.300E22\310	WP10.340E22
	Output power	198kw/2200rpm	225kw/2200rpm	294kw/1900rpm
	Emission standard	Euro II	Euro II	Euro II
	Tyre	295/80R22.5	295/80R22.5	12.00R20
Boom & Outrigger	Boom vertical height	30m	38m	47m
	Boom horizontal length	26.6m	33.5m	42.6m
	Boom vertical depth	20m	22m	29.4m
	Boom folding form	5RZ	5RZ	5RZ
	Turntable rotation angle	±360°	±360°	±360°
	Front outrigger deployment width	5700mm	6800mm	8500mm
	Rear outrigger deployment width	6800mm	8350mm	9400mm
	Longitudinal distance between front and rear outrigger	5900mm	6800mm	9000mm
	Outrigger opening method (F/R outrigger)	X-shaped/Swinging	X-shaped/Swinging	X-shaped/Swinging
Pumping system	Theoretical concrete displacement (L/H Pressure)	120m³/h	140/83m³/h	163/97 m³/h
	Distribution valve form	S valve	S valve	S valve
	Inner diameter/stroke of conveying cylinder	230/1600mm	230/1550mm	260/1600mm
	Main oil pump displacement	190ml/r	190ml/r	260ml/r
	Bucket capacity	/	0.5m³	0.6m³
	Feeding height	/	1450mm	1450mm
	Inner diameter of conveying pipe	125mm	125mm	125mm
	Max. aggregate size	40mm	40mm	40mm
	Concrete slump	160-220mm	160-220mm	160-220mm
	System oil pressure	31.5MPa	31.5MPa	31.5MPa
	Hydraulic oil capacity	400L	400L	400L

Whole Truck	Model	ZLBP-50-6RZ	ZLBP-56-6RZ
	Chassis brand	HOWO	HOWO
	Drive type	6×4	8×4
	Engine model	WP10.340E22	WP12.400E201，400HP
	Output power	294kw/1900rpm	324kw/1900rpm
	Emission standard	Euro II	Euro II
	Tyre	12.00R20	12.00R20
Boom & Outrigger	Boom vertical height	50m	57.6m
	Boom horizontal length	46m	53.5m
	Boom vertical depth	36.5m	38m
	Boom folding form	6RZ	6RZ
	Turntable rotation angle	±360°	±360°
	Front outrigger deployment width	9500mm	9475mm
	Rear outrigger deployment width	9800mm	12853mm
	Longitudinal distance between front and rear outrigger	10400mm	10483mm
	Outrigger opening method (F/R outrigger)	X-shaped/Swinging	X-shaped/Swinging
Pumping system	Theoretical concrete displacement (L/H Pressure)	163/97 m³/h	170/120m³/h
	Distribution valve form	S valve	S valve
	Inner diameter/stroke of conveying cylinder	260/2200mm	260/2200mm
	Main oil pump displacement	260ml/r	320ml/r
	Bucket capacity	0.6m³	0.6m³
	Feeding height	1450mm	1500mm
	Inner diameter of conveying pipe	125mm	125mm
	Max. aggregate size	40mm	40mm
	Concrete slump	160-220mm	160-220mm
	System oil pressure	31.5MPa	31.5MPa
	Hydraulic oil capacity	400L	700L
