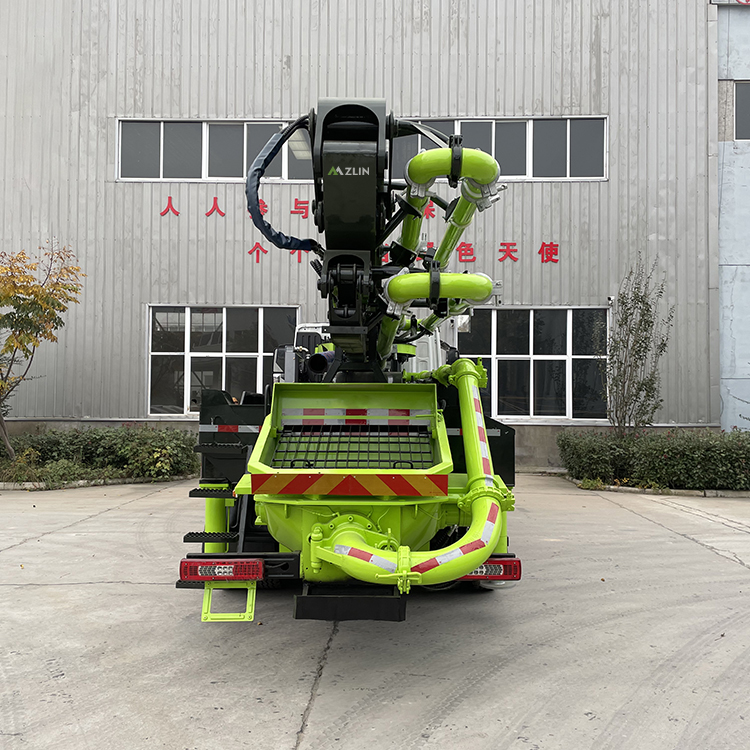

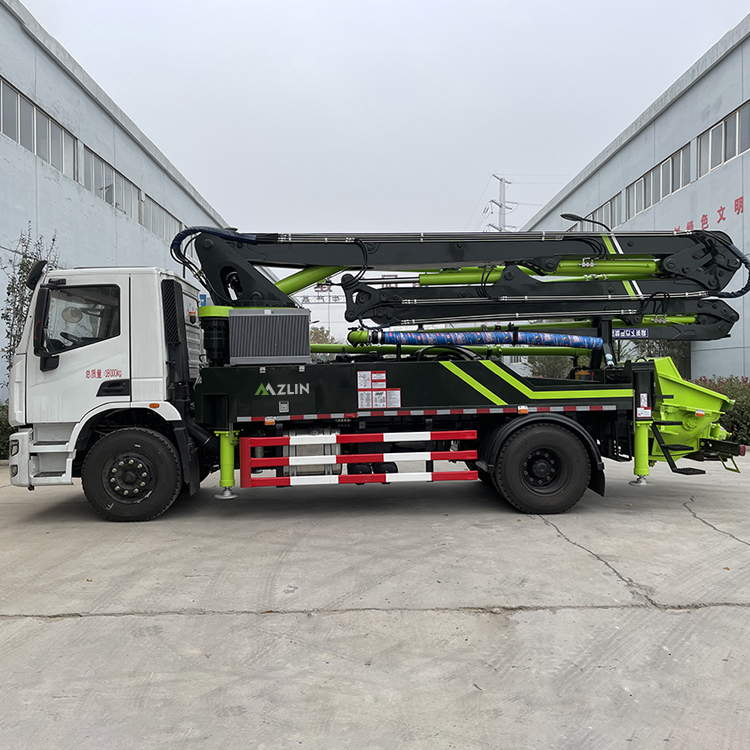

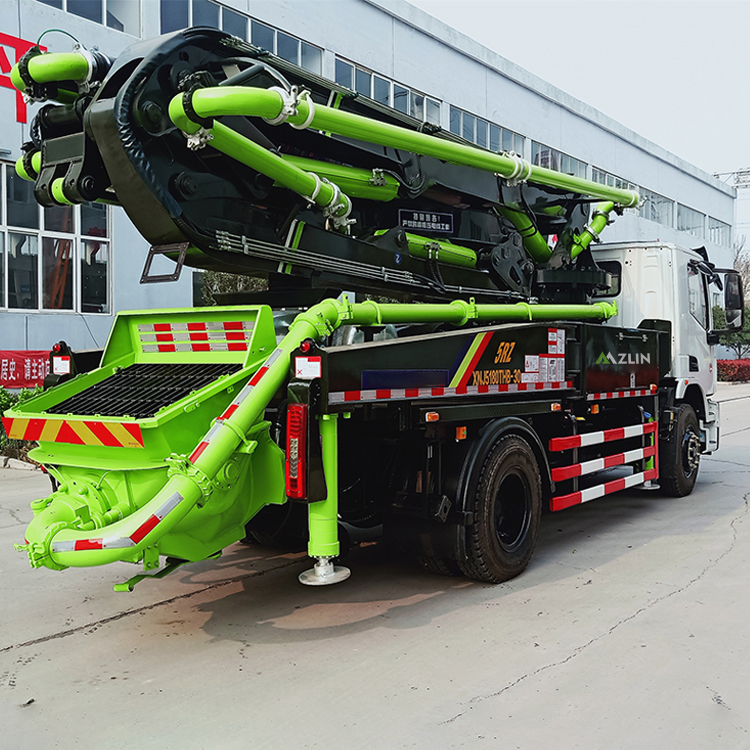

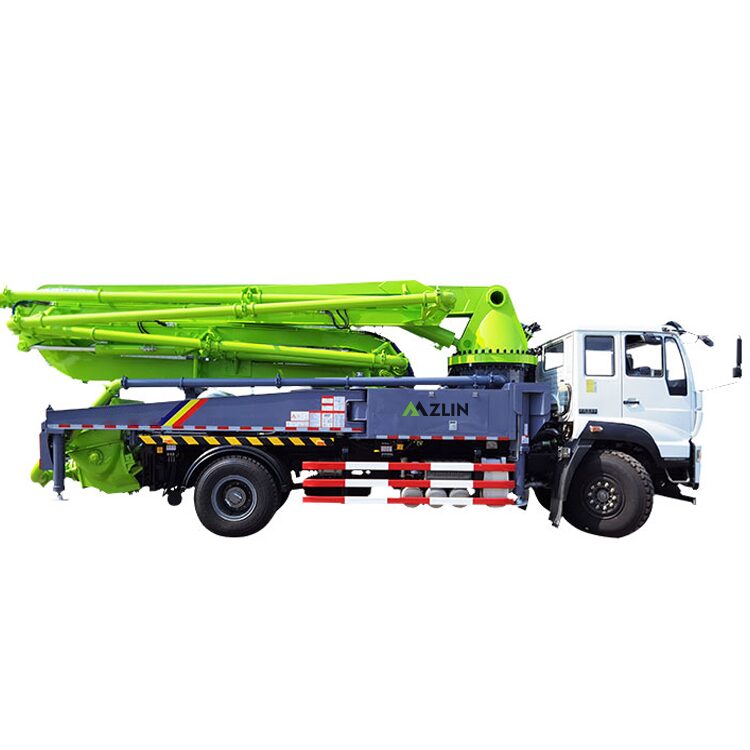

ZLBP-30-5RZ Boom Pump

Concrete boom pump is a construction machinery that integrates concrete transportation and pouring. It has the characteristics of high efficiency and high quality, and is widely used in the construction of high-rise buildings, bridges, high-speed railways, etc

Chat [email protected] Inquiry

FEATURES

1. Lightweight, short wheelbase, small body, large operating space, high construction efficiency, especially in areas with narrow working spaces where cannot be reached;

2. Equipped with an arm frame for fabric, the auxiliary time is short, the fabric is convenient and fast, and the pumping speed is fast, with high work efficiency;

3. High degree of automation, can be operated by one person, equipped with remote control, easy to operate;

4. Stable performance and low failure rate

Appliction

The 30m boom pump truck is suitable for various construction projects, including:

Residential Construction: Ideal for pouring concrete in low to mid-rise residential buildings such as apartments, condominiums, and townhouses.

Commercial Construction: Used in the construction of commercial buildings such as offices, retail stores, and warehouses.

Infrastructure Projects: Suitable for infrastructure projects like bridges, highways, and tunnels where precise concrete placement is required.

Industrial Projects: Commonly used in industrial projects such as factories, power plants, and refineries for concrete pouring tasks.

Urban Development: Plays a vital role in urban development projects including roads, sidewalks, and landscaping projects.

Renovation and Rehabilitation: Used for concrete pouring during renovation and rehabilitation projects to repair or upgrade existing structures.

Municipal Projects: Utilized in municipal projects such as parks, schools, and public facilities construction for concrete placement tasks.

Overall, the 30m boom pump truck offers flexibility, efficiency, and precision in various construction applications, making it an indispensable asset for construction companies and contractors.

Technical Parameters

Vehicle parameters Overall dimension 9200*2400*2400mm
Weight 20000kg
Chassis brand HOWO
Drive type 4×2
Engine model WP10.300E22\240
Output power 198kw/2200rpm
Emission standard Euro II
Tyre 295/80R22.5
Wheelbase 4600mm
Boom & Outrigger parameters Boom vertical height 30m
Boom horizontal length 26.6m
Boom vertical depth 20m
Boom folding form 5RZ
First boom Length 6400mm
Corner 90°
Second boom Length 5000mm
Corner 180°
Third boom Length 4800mm
Corner 180°
Fourth boom Length 5100mm
Corner 212°
Fifth boom Length 5300mm
Corner 180°
End conveyor hose Length 3m
Turntable rotation angle ±360°
Front outrigger deployment width 5700mm
Rear outrigger deployment width 6800mm
Longitudinal distance between front and rear outrigger 5900mm
Outrigger opening method Front outrigger X-shaped
Rear outrigger Swinging
Pumping system parameters Theoretical concrete displacement 120m³/h
Distribution valve form S valve
Inner diameter/stroke of conveying cylinder 230/1600mm
Main oil pump displacement 190ml/r
Inner diameter of conveying pipe 125mm
Max. aggregate size 40mm
Concrete slump 160-220mm
System oil pressure 31.5MPa
Hydraulic oil capacity 400L
Hydraulic system type Open
High and low voltage switching Automatic switching
Hydraulic oil cooling method Forced air cooling
Cleaning method for concrete pipes Water wash
Lubrication method Centralization lubrication
Spare parts brand Transfer box Zhuzhou Gear
Main oil pump REXRTOH
Boom pump PUSH
Constant pressure pump PUSH
Gear pump Wany
Boom multi way valve Km Hydraulic
Boom balance valve REXRTOH
Valve group EATON
Plates Baosteel
Remote control HBC
Electrical equipment Schneider/Omron
