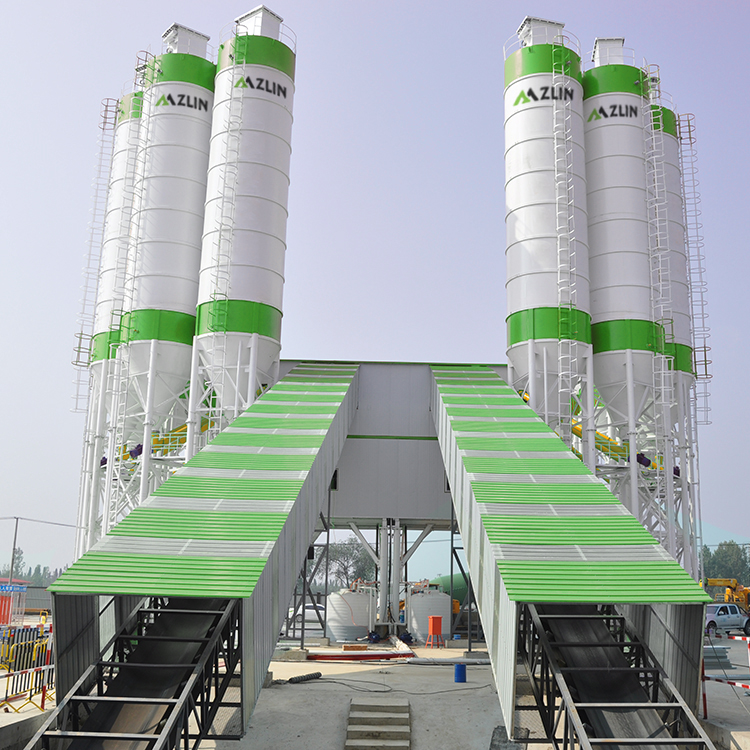

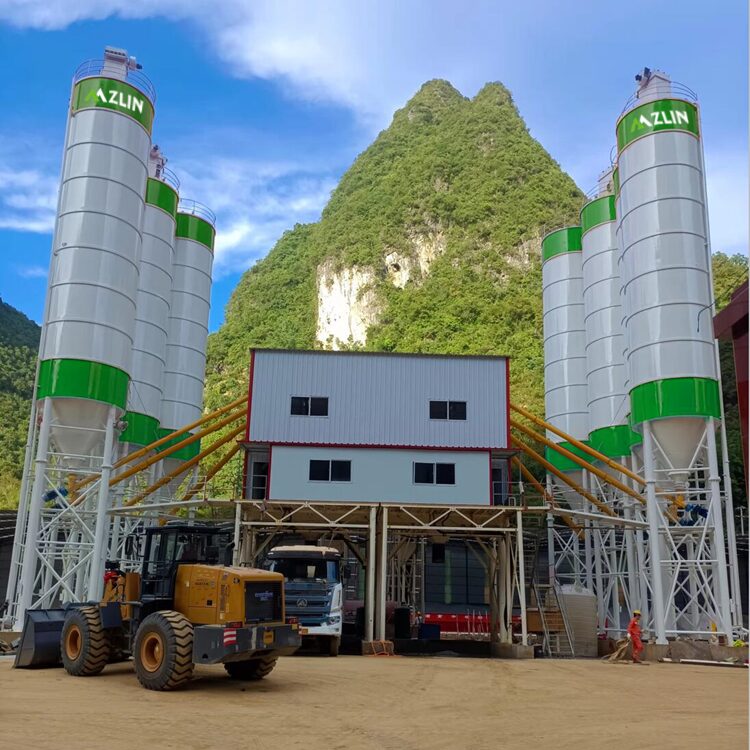

Stationary Concrete Batching Station is a facility specifically designed for producing concrete, which ensures the quality of concrete through precise batching and mixing processes. These batching stations are usually equipped with high-tech mechanical equipment that can mix raw materials such as cement, water, and aggregates in specific proportions to form a uniform concrete mixture.
1. Stable quality: The batching station ensures the stable and reliable quality of concrete through precise measurement and control.
2. Improving efficiency: The batching station can concentrate the production of concrete, improving construction efficiency.
3. Cost reduction: The batching station can customize concrete proportions according to demand, reducing material waste and lowering costs.
4. Reduce pollution: The batching plant can recycle and reuse waste concrete, reducing environmental pollution.

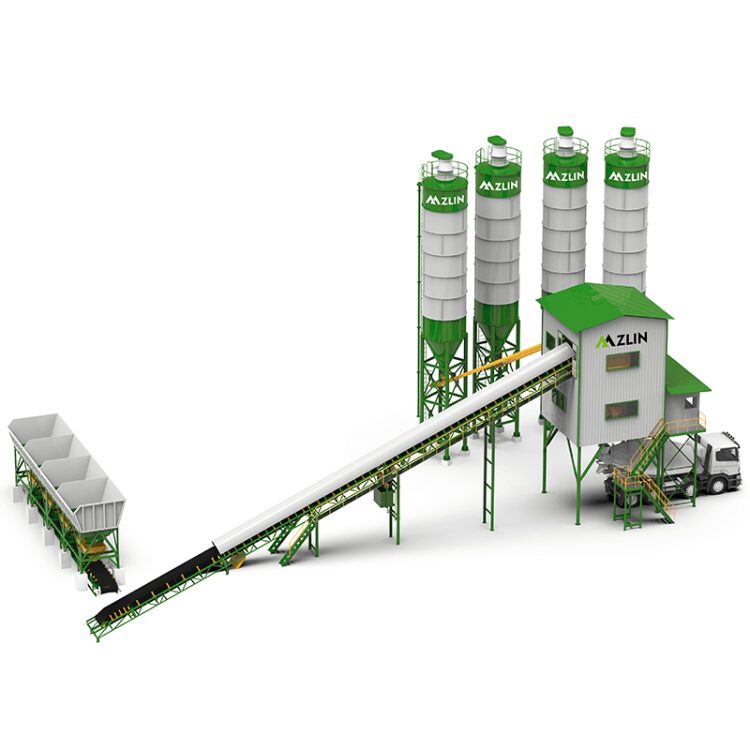

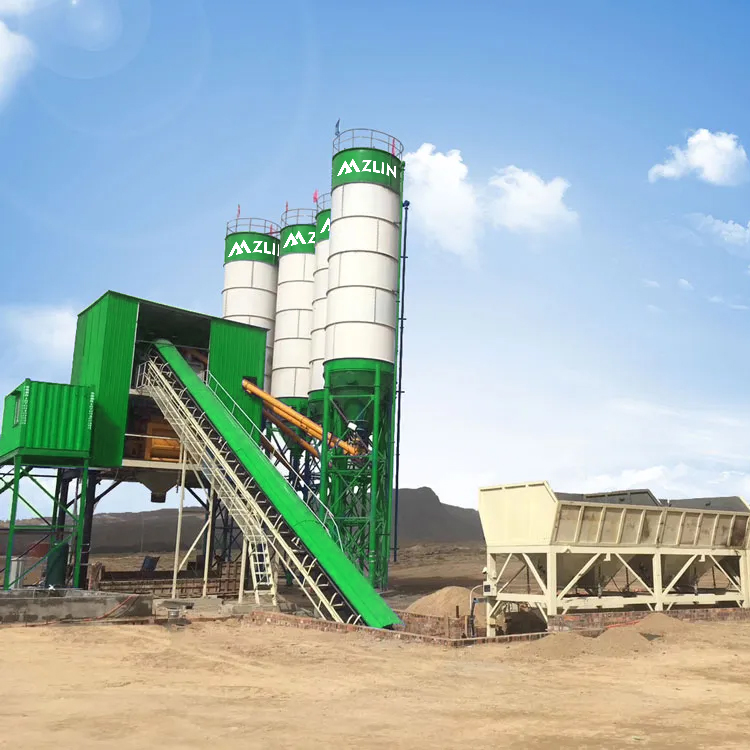

The Concrete Mixing Plant includes parts such as material transportation, metering, storage, mixing, auxiliary and control systems. Concrete mixing plants are mainly used for railway, highway, bridge, airport, tunnel, hydropower and water conservancy engineering, soil industry, mining and civil construction, as well as the production of commercial concrete and concrete products. There are many forms of layout and specifications for concrete mixing plants.
|
Whole station |
Model | SBC60 | SBC90 | SBC120 | SBC180 |
| Max. productivity (m³/h) | 60 | 90 | 120 | 180 | |
| Standard discharge height | 3.8 | 3.8 | 3.8 | 4.3 | |
| Aggregate conveying type | Belt Conveyor | Belt Conveyor | Belt Conveyor | Belt Conveyor | |
| Total Power (kw) | 110 | 170 | 205 | 290 | |
| Site Dimension | 15M*60M | 15*60M | 15*60M | 15*60M | |
| Control type | Pneumatic | Pneumatic + PLC | Pneumatic + PLC | Pneumatic + PLC | |
| Control system brand | Schneider | Zlin-Schneider | Bosure-Schneider | Bosure-Schneider | |
|
Mixer part |
Model | JS1000 | JS1500 | JS2000 | JS3000 |
| Working cycle time (S) | 60 | 60 | 60 | 60 | |
| Mixing Power (KW) | 30*2 | 2*37 | 2*55 | ||
|
Batching machine part |
Model | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
| Batchable number of aggregate | 3 | 3-4 | 3-4 | 4 | |
| Hopper capacity(m3) | 8 | 15 | 15 | 20 | |
| Power (Kw) | 4*3 | 7.5 | 11 | 11 | |
| Feeding height (mm) | 3000 | 3800 | 3500 | 3800 | |
| Weighing accuracy | Aggregate | ±2% | ±2% | ±2% | ±2% |
| Concrete（Kg)
|
±1% | ±1% | ±1% | ±1% | |
| Water（Kg)
|
±1% | ±1% | ±1% | ±1% | |
| Additive（Kg) | ±2% | ±1% | ±1% | ±1% |
· Max. theo. concrete output：40m³/h
· Max. vertical conveying distance：100M
Output Power / speed : 199Kw/2300RPM
Boom Vertical Height: 38m
Electrical Engineering Power : 90kw
Distribution Valve Type: S Valve
