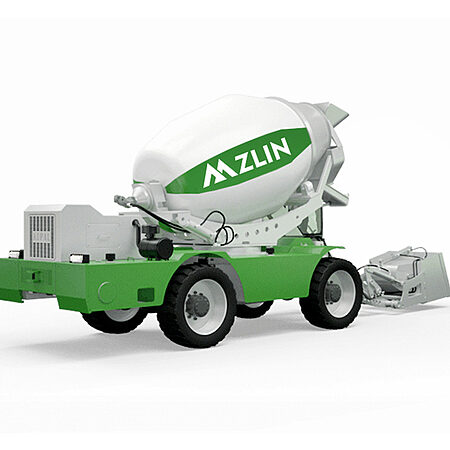

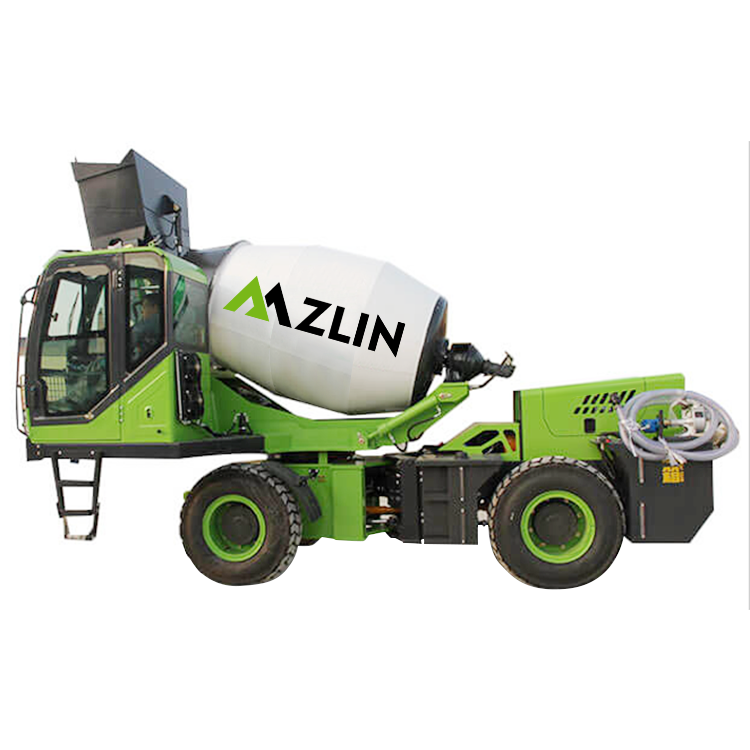

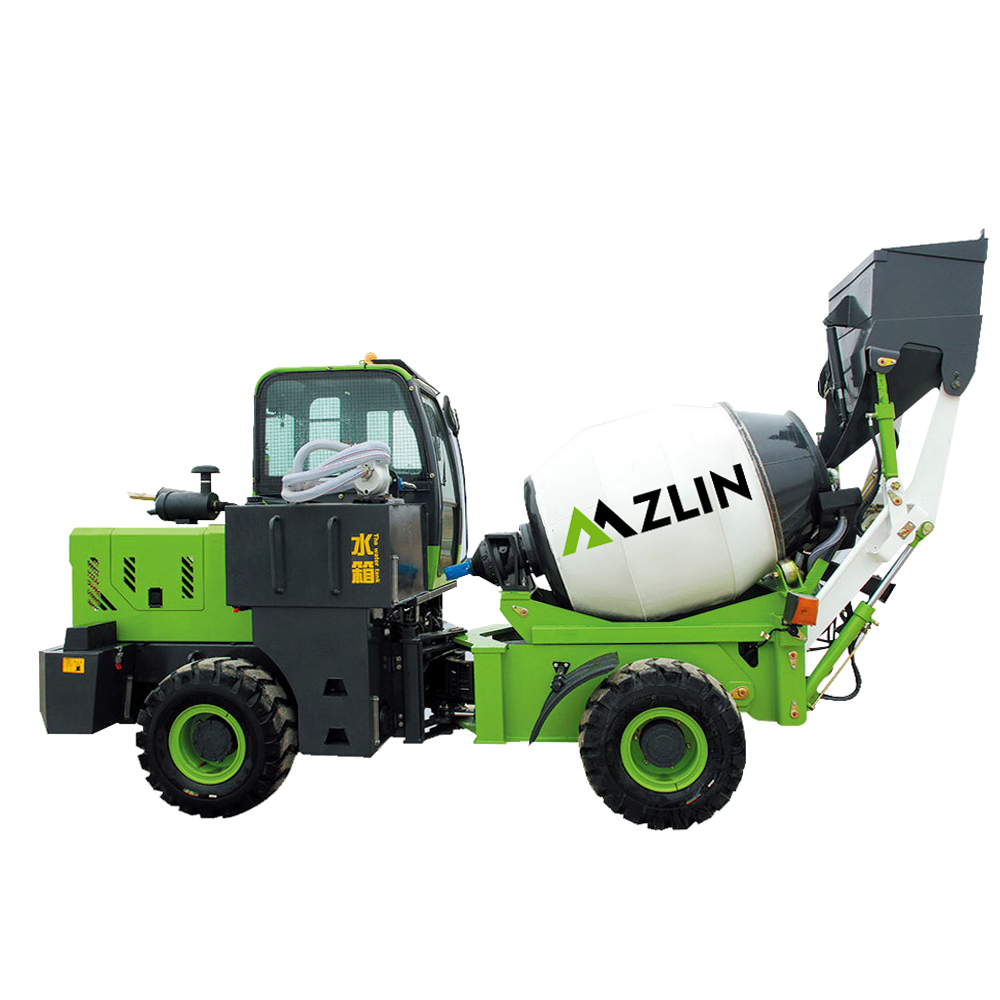

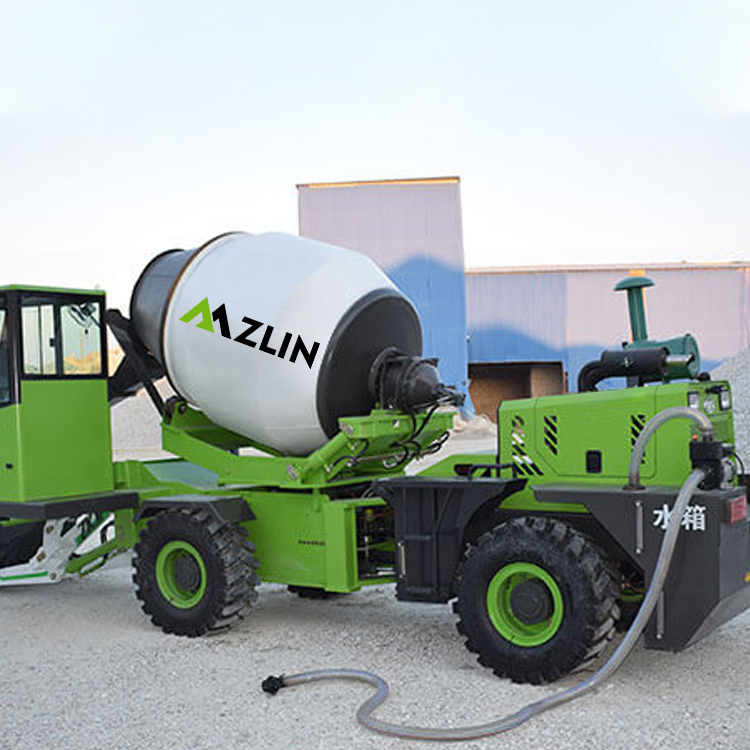

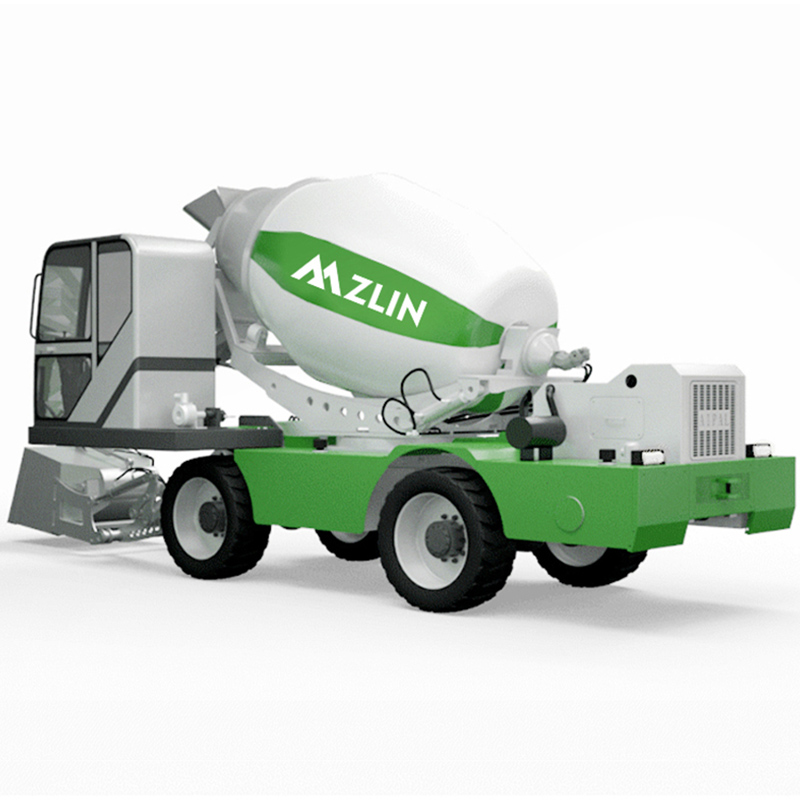

1.5 m³ Self-Loading Mixing Truck

Product Description

1.5 m³ self-loader concrete mixer has the characteristics of narrow body, short wheelbase, small turning radius and other personalized design, and has strong advantages in the working environment of limited height, width and length. The mixing tank can be rotated 270°, and the machine can be unloaded on all sides without moving, and only one person can operate it during operation.

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

ZLIN Self Loading Concrete Mixer

Its stirring is uniform, the stirring blade is fan-shaped, and the contact area with the medium is large during stirring;

The nozzles are set in multiple rows, and the water volume is uniform and adjustable;

The mixing drum of the self-loading mobile concrete mixer has a compact structure and good sealing performance, set a ash baffle at the feeding port to prevent the backflow of water mist;

The setting of the watershed at the bottom of the box ensures that there is no dead angle in the device.

The mining mixing drum has advanced performance, stable product quality, uniform mixing and rapid discharge.

Independent operation to complete the functions of loading, mixing, transportation and unloading.

The self-loading concrete mixer for sale replaces the loader, mixer, transport vehicle, generator set and other functions; it also has its own water tank, external suction pump, etc.

The multi-angle 270-degree rotating discharge is suitable for various regional environments.

Easy to operate, you can learn to operate in a few hours, and only two people can complete all the work.

Cost-effective, the self-loading concrete mixer machine saves labor costs and time, and the self-loading concrete mixer truck price is reasonable.

Mobile portable cement mortar mixer mobile self-loading concrete mixer
Self-loading concrete mobile cement mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed,measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixeris just like a small car and the operator can drive it to where it needs to go. Self loading mobile concrete mixer is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site.

Cases Of Our Self Loading Concrete Mixer

Congratulation! ZLIN ZL-1.5 self-loading concrete mixer is ready to ship to Indonesia on April 26, 2021. This is a customized self loading mixer for our customer. This self-loading truck completely meets the needs of our customer.

ZLIN Group can help you customize your self-loading concrete mixer as much as possible to meet your customer’s needs. Please contact us for more details and we will get back to you within 12 hours. Email: Email: [email protected].

The ZLIN-1.5 self loading concrete mixer can best match customer’s construction projects. After confirmation, the customer is satisfied with the equipment, including its design, its function and its best price.

Get Quotation


Recommendation

TECHNICAL PARAMETER

Brand name ZLIN
Model ZL-1.5 square self-feeding mixer
Size and shape 5600*1850*2900mm
Overall mass 6500kg
Axis distance 2500mm
wheel spacing 1850mm
Max. speed 40km/h
Min. turning radius 4600mm
Max. unloading height 1600mm
Max. feed height 2150mm
Min. ground clearance 3300mm
Engine model Yunnai 490 supercharged
Rated power 55kw
Drive mode torque converter
Transmission model ZL-280 split power shift gearbox
Gear 4 forward and 4 backward
Water supply mode Electronic water supply pump
Output 4-6 tanks/h
Hydraulic system Double pressure system
Oil pump Double oil pump
Brake system Double disc brake break system



Services Provided For Concrete Mixer Truck

There are many suppliers in the market that manufacture self-loading mixers. You can find self loading concrete mixer suppliers online or offline. Of course, you can also look for suppliers locally or abroad. But most importantly, you need to find a reputable supplier with good reviews from many customers. ZLIN GROUP has focused on the construction machinery industry for many years. We always adhere to the vision of providing better construction machinery to more customers and creating more value for them. So far, we have exported multiple self-loading concrete mixer trucks to different countries such as Philippines, Indonesia, Vietnam, Pakistan, etc.

Pre-Sale Service

Before purchase, ZLIN business manager will provide you with technical consults about the concrete self-loading mixer truck, including payment terms, self-loading concrete mixer truck quotes, delivery time and other information.

Recommend the most suitable self-loading mixer machine model for you according to your engineering needs, and provide you with the most cost-effective choice.

Provide you with auto loading concrete mixer factory pictures, factory videos, technical information, etc.to help you understand the working principle of the self-loading mixer.

After-Sale Service

We are responsible for the transportation of the product, and will deliver the product to the designated location safely and quickly.

We will provide customers with technical training and operation instructions, free installation services.

If you have any problems during using time, we will provide you with 24-hour online consulting services and dispatch engineers for on-site technical guidance.

For customers who purchase ZLIN equipment, the follow-up spare parts will be provided at the original price, and the wearing parts will be guaranteed within one year. For specific after-sales service, please consult the sales manager.
